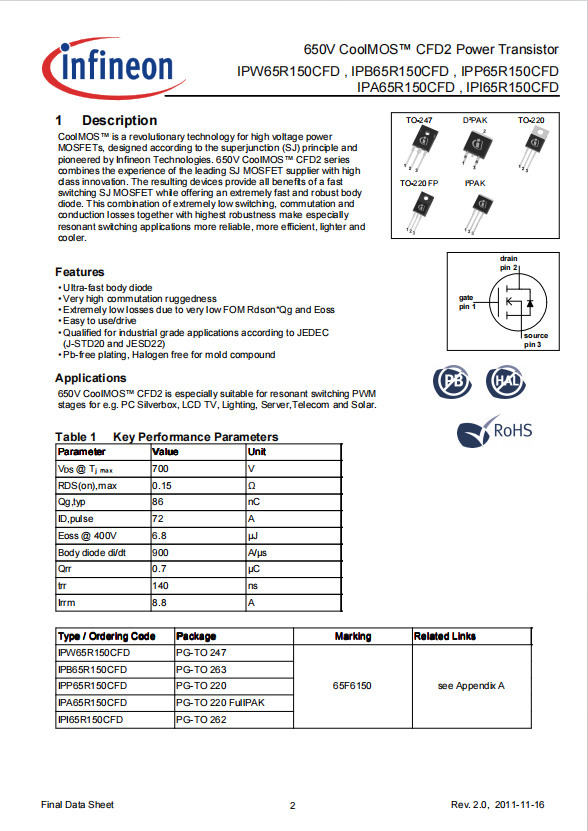

Product Descriptions
CoolMOSTm is a revolutionary technology for high voltage powerMOSFETs, designed according to the superjunction (SJ) principle andpioneered by nfineon Technologies. 650V COOlMOSTM CFD2 seriescombines the experience of the leading SJ
MOSFET supplier with highclass innovation. The resulting devices provide all benefits of a fastswitching SJ MOSFET while offering an extremely fast and robust bodydiode. This combination of extremely low switching, commutation andconduction
losses together with highest robustness make especiallyresonant switching applications more reliable, more efficient, lighter andcooler.
Product Features
Ultra-fast body diode
Very high commutation ruggedness
Extremely low losses due to very low FOM Rdson*Qg and Eoss
Easy to use/drive
Qualified for industrial grade applications according to JEDEC(J-STD20 and JESD22)
Pb-free plating, Halogen free for mold compound
Product Applications
650V COOlMOSTM CFD2 is especially suitable for resonant switching PWMstages for e.g. PC Silverbox, LCD TV, Lighting, Server,Telecom and Solar.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-IPP65R150CFD |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Infineon Technologies |
| Series | CoolMOS? |
| Package | Tube |
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 22.4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 150mOhm @ 9.3A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 900μA |
| Gate Charge (Qg) (Max) @ Vgs | 86 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2340 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 195.3W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO220-3 |
| Package / Case | TO-220-3 |
| Base Product Number | IPP65R150 |
Actual product photos

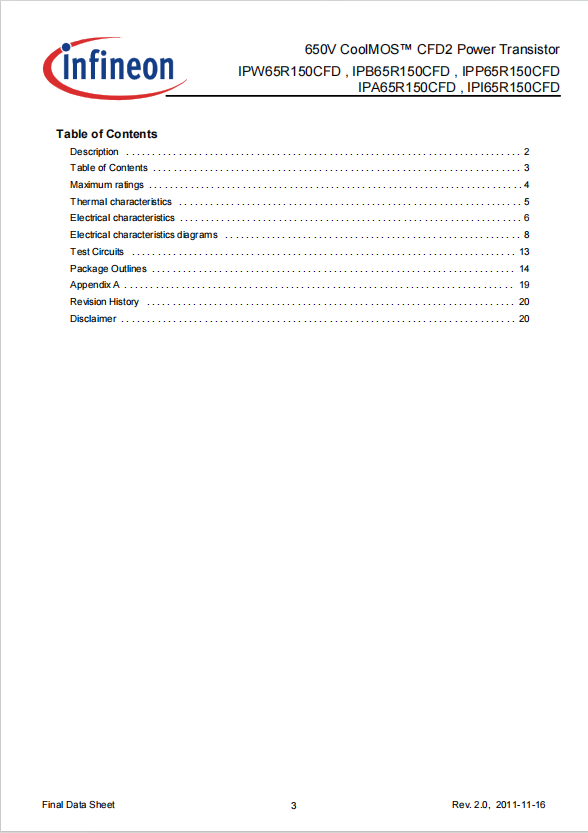

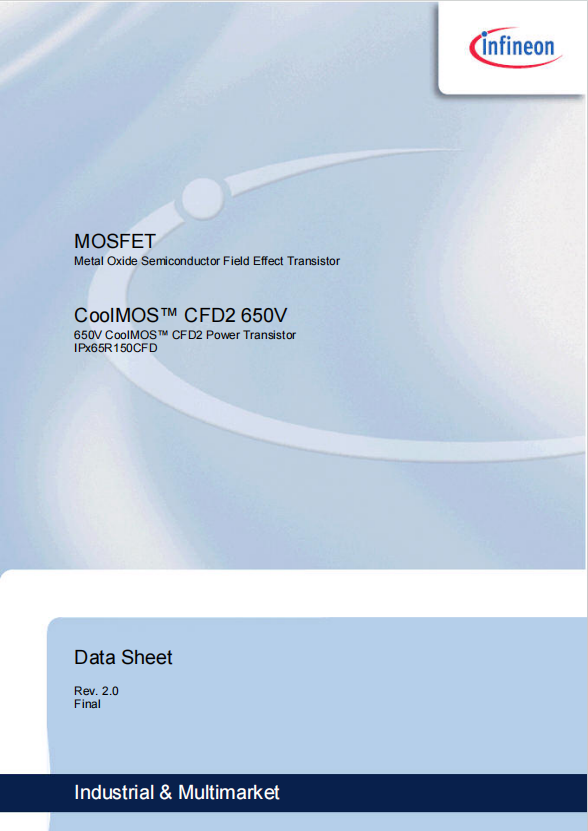

Product Data Book：
