Product Descriptions

The MAX4506/MAX4507 multiple, two-terminal signal-line protectors are pin-compatible with the industry-standard MAX366/MAX367. These new circuit protectors feature fault-protected inputs and Rail-to-Rail? signal handling capability. The input pins are protected from overvoltage faults up to ±36V with power on or ±40V with power off.

During a fault condition, the input terminal becomes an open circuit and only nanoamperes of leakage current flow from the source; but the switch output (OUT_) furnishes typically 19mA from the appropriate polarity supply to the load. This ensures unambiguous rail-to-rail outputs when a fault begins and ends.

The MAX4506 contains three independent protectors while the MAX4507 contains eight independent protectors. They can protect both unipolar and bipolar analog signals using either unipolar (+9V to +36V) or bipolar (±8V to ±18V) power supplies.

These devices have no logic control inputs; the protectors are designed to be always-on when the supplies are on. On-resistance is 100? max and matched within 7?, and on-leakage is less than 0.5nA at TA = +25°C.

The MAX4506 is available in 8-pin SO/DIP packages.

The MAX4507 is available in 20-pin SSOP and 18-pin SO/DIP packages.

Product FEATURES

? Overvoltage Protection

±40V with Power Off

±36V with Power On

? Open Signal Paths with Power Off

? Output Clamps to Either Rail with an Input Overvoltage

? Any On Channel Output is Not Affected by an Overvoltage to Any Other Channel

? 100? max On-Resistance

? 10ns Overvoltage Turn-On Delay

? No Latchup During Power Sequencing

? Rail-to-Rail Signal Handling

? 500? Output Clamp Resistance During Overvoltage

Product Applications

Process-Control Systems

Hot-Insertion Boards/Systems

Data-Acquisition Systems

Redundant/Backup Systems

ATE Equipment

Sensitive Instruments

Specifications

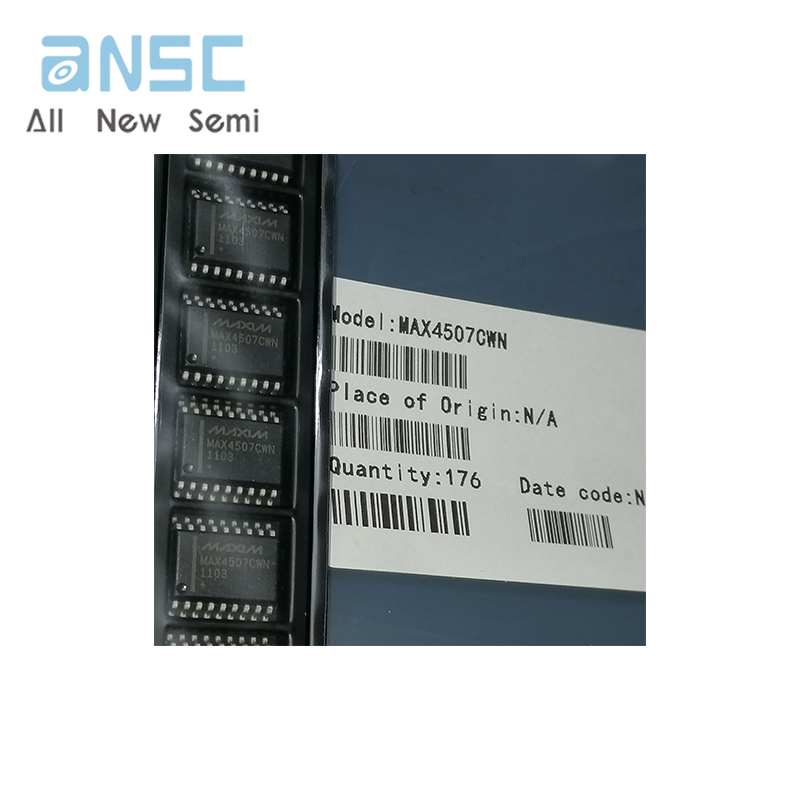

Actual product photos

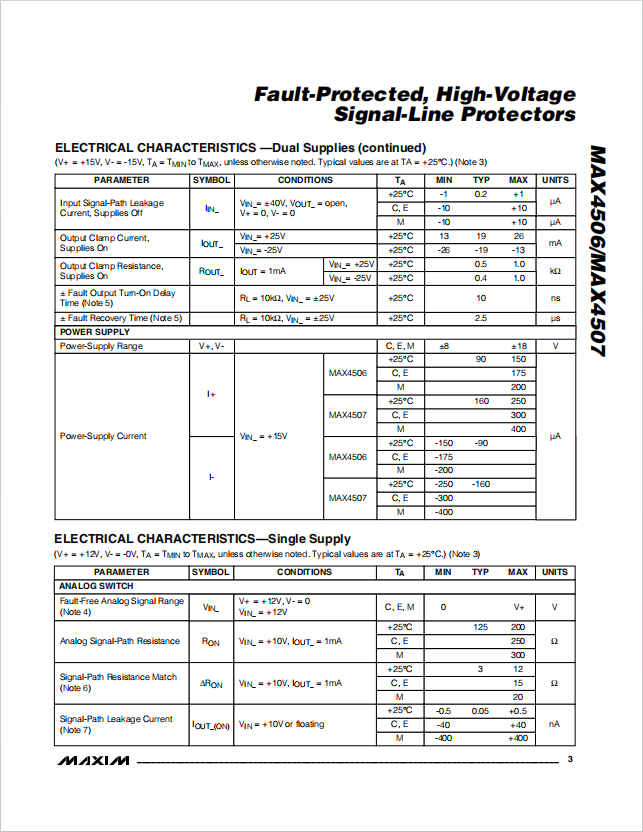

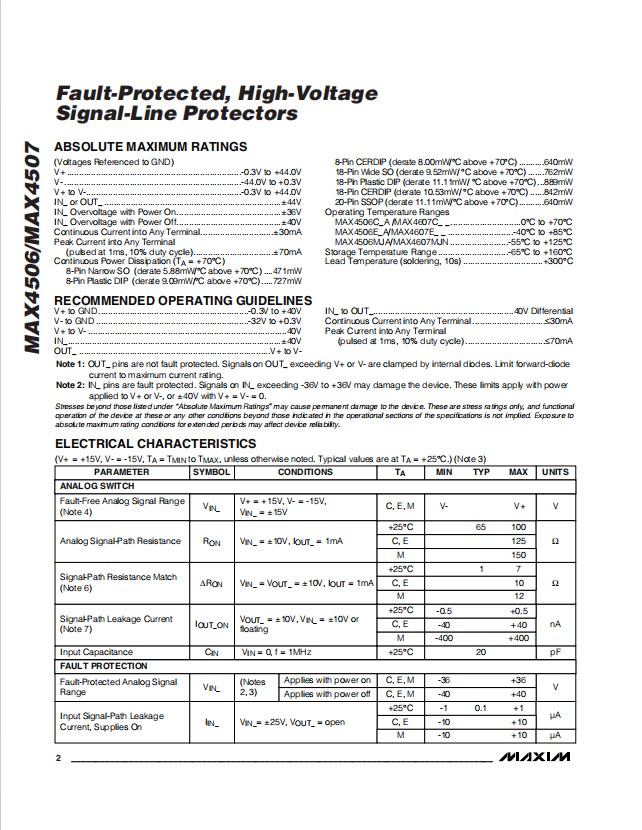

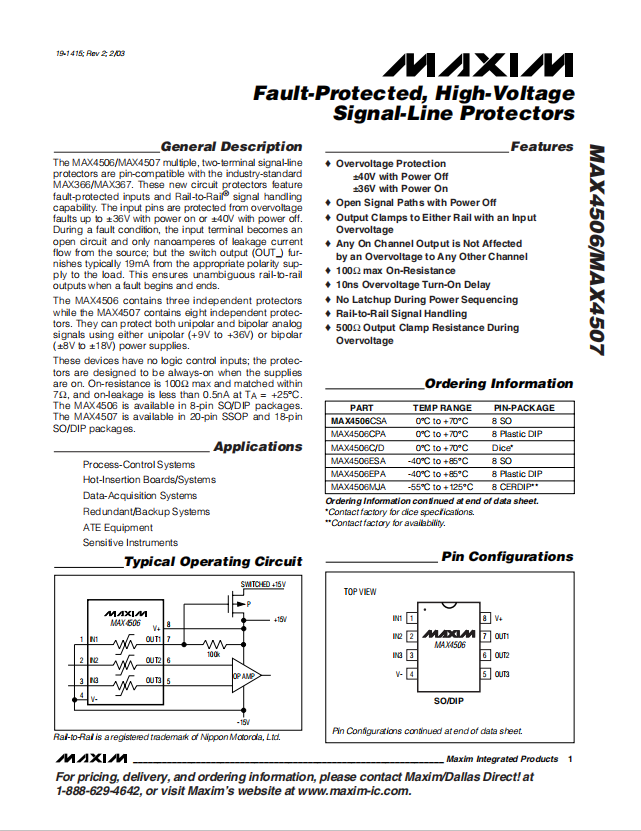

Product Data Book：

For more product information, please download the PDF
