Product Features
? Gigabit Ethernet Discrete Transformer
? IEEE802.3ab Compliant
? UL/EN62368 Recognized
? 100 percent Electrical Testing
? 1500Vrms Hi-Pot
? Patented Open Frame Construction
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TG1G-E001NYRL |
| Manufacturer: | HALO Electronics |
| Product Category: | Audio Transformers / Signal Transformers |
| REACH - SVHC: | Details |
| Product: | LAN Isolation Transformers |
| Type: | Module |
| Termination Style: | SMD/SMT |
| Frequency Range: | 1 MHz to 100 MHz |
| Inductance: | 350 uH |
| Isolation Voltage: | 1.5 kV |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 85 C |
| Number of Channels: | Dual |
| Application: | Gigabit Interface |
| Package / Case: | SMD-24 |
| Length: | 15.24 mm |
| Width: | 13.72 mm |
| Height: | 6.35 mm |
| Series: | TG1G |
| Packaging: | Tube |
| Brand: | HALO Electronics |
| Current Rating: | 8 mA |
| Product Type: | Audio & Signal Transformers |
| Shielding: | Shielded |
| Factory Pack Quantity: | 36 |
| Subcategory: | Transformers |

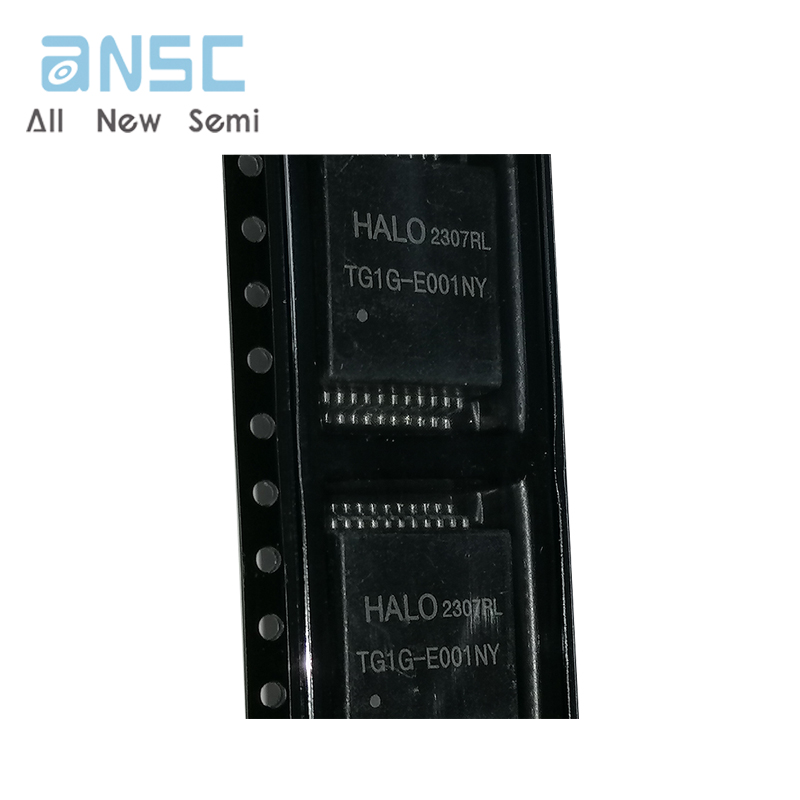

Actual product photos

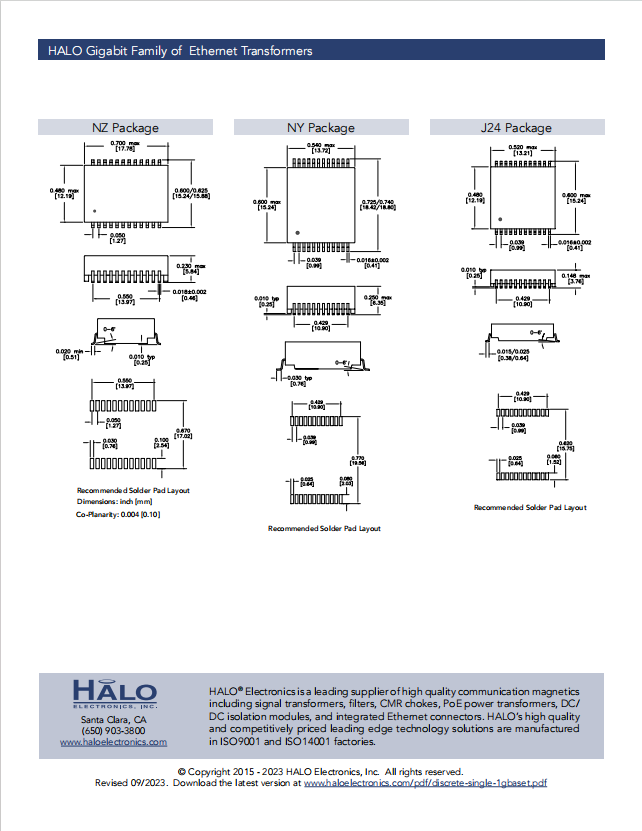

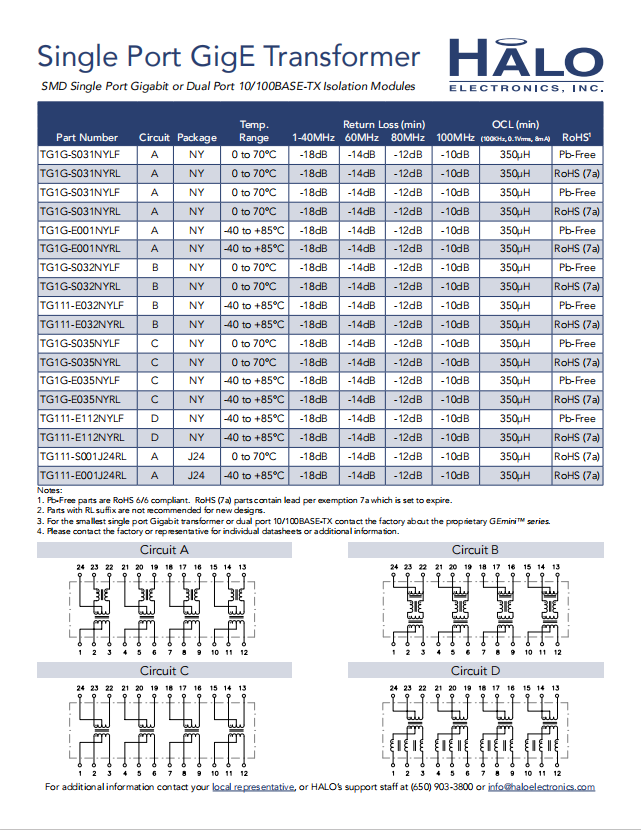

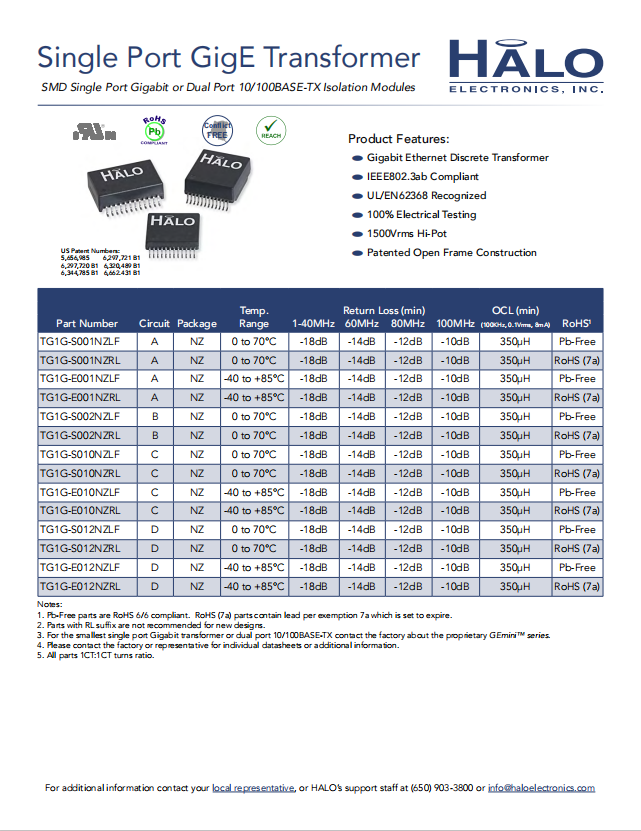

Product Data Book：
For more product information, please download the PDF
