Product Features

The TOSHIBA mini flat coupler TLP185 is a small outline coupler, suitable for

surface mount assembly.

TLP185 consists of a photo transistor optically coupled to a gallium arsenide

infrared emitting diode. Since TLP185 is smaller than DIP package, it’s

suitable for high-density surface mounting applications such as

programmable controllers.

? Collector-emitter voltage: 80 V (min)

? Current transfer ratio: 50 percent (min)

Rank GB: 100 percent (min)

? Isolation voltage: 3750 Vrms (min)

? Operation Temperature:-55 to 110 ?C

Attribute	Attribute value
ANSM-Part#	ANSM-TLP185GB
Category	Isolators
	Optoisolators
	Transistor, Photovoltaic Output Optoisolators
Mfr	Toshiba Semiconductor and Storage
Series	-
Package	Tube
Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	100% @ 5mA
Current Transfer Ratio (Max)	400% @ 5mA
Turn On / Turn Off Time (Typ)	9μs, 9μs
Rise / Fall Time (Typ)	5μs, 9μs
Input Type	DC
Output Type	Transistor
Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.173", 4.40mm Width), 4 Leads
Supplier Device Package	6-SOP
Base Product Number	TLP185

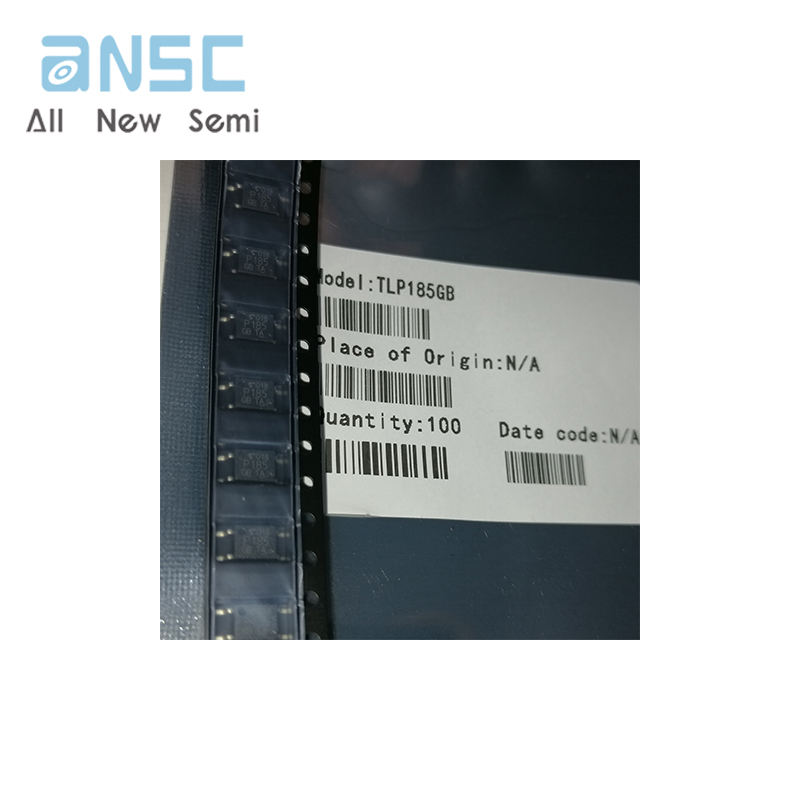

TLP185GB
