Product Feature

? Meets or Exceeds the Requirements of ANSI TIA/EIA-422-B and ITU

? Operates From a Single 5-V Supply

? TTL-Compatible

? Complementary Outputs

? High Output Impedance in Power-Off Conditions

? Complementary Output-Enable Inputs

? Available MIL-PRF-38535-Qualified Options (M):

All Parameters Are Tested Unless Otherwise

Noted. On All Other Products, Production

Processing Does Not Necessarily Include Testing

of All Parameters.

The AM26LS31 family of devices is a quadruple complementary-output line driver designed to meet the requirements of ANSI TIA/EIA-422-B

and ITU (formerly CCITT) Recommendation V.11. The 3-state outputs have high-current capability for driving balanced lines such as twisted-pair

or parallel-wire transmission lines, and they are in the highimpedance state in the power-off condition. The enable function is common to all

four drivers and offers the choice of an active-high or active-low enable (G, G) input. Low-power Schottky circuitry reduces power consumption

without sacrificing speed.

? Motor Encoders

? Field Transmitters: Pressure Sensors and Temperature Sensors

? Military and Avionics Imaging

? Temperature Sensors or Controllers Using Modbus

Attribute	Attribute value
ANSM-Part#	ANSM-AM26LS31DM
Number of receivers	0
Number of transmitters	4
Duplex	Half
Supply voltage (nom) (V)	5
Signaling rate (max) (MBits)	10
IEC 61000-4-2 contact (±V)	None
Fault protection (V)	-7 to 7
Common-mode range (V)	-7 to 7
Number of nodes	32
Isolated	No
Supply current (max) (μA)	80000
Rating	Catalog
Operating temperature range (°C)	0 to 70
Mfr	TEXAS INSTRUMENTS
Supplier Device Package	16DIP
Package	TUBE

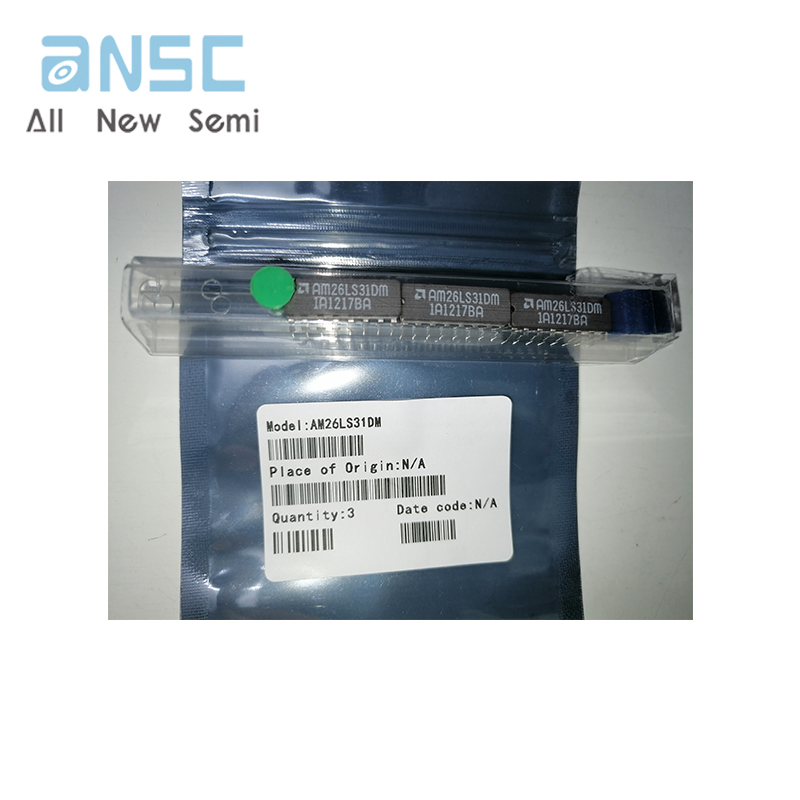

AM26LS31DM

Product Data Book：

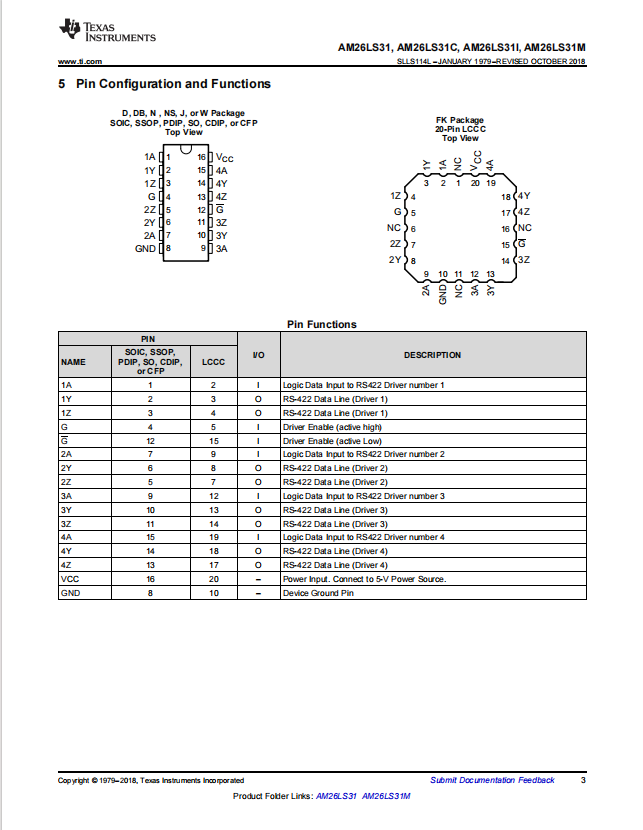

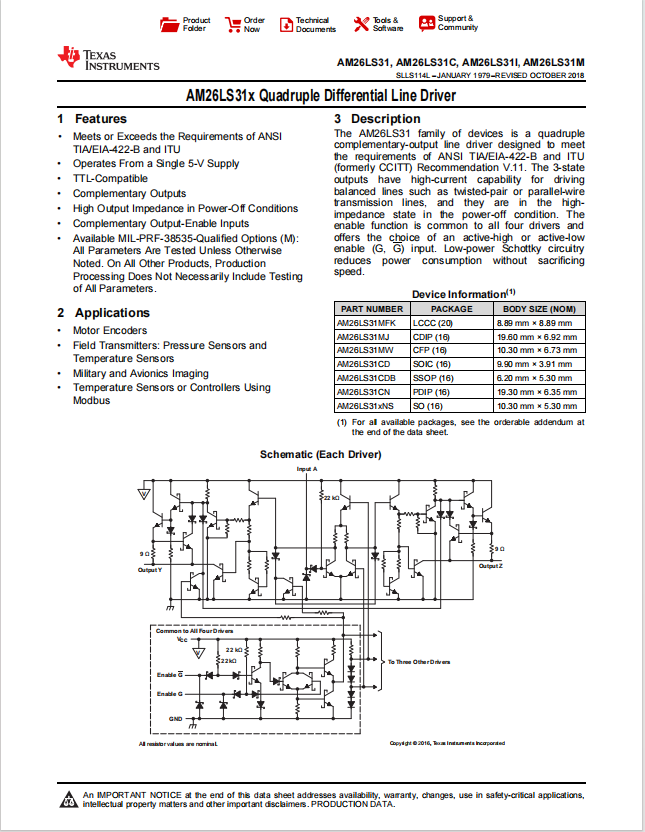

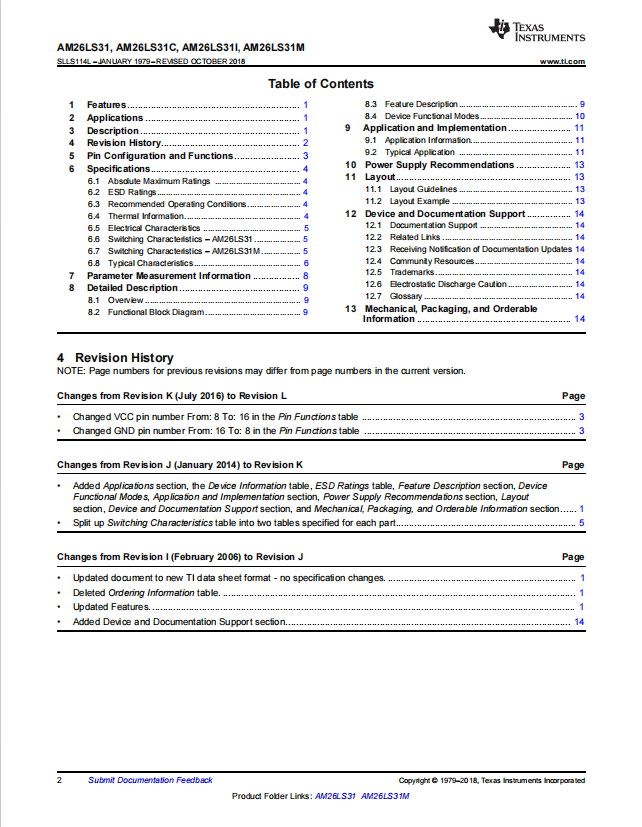

搜狗高速瀏覽器截圖20240103112741

搜狗高速瀏覽器截圖20240103112746

搜狗高速瀏覽器截圖20240103112750

For more product information, please download the PDF
