Product Feature
? Small plastic SMD package
? Switching speed: max. 50 ns
? General application
? Continuous reverse voltage: max. 200 V
? Repetitive peak reverse voltage: max. 250 V
? Repetitive peak forward current: max. 625 mA.
Product Applications
? General purpose where high breakdown voltages are required.
Product DESCRIPTION
The BAV23S consists of two general purpose diodes connected in series fabricated in planar technology, andencapsulated in the small SOT23
plastic SMD package.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BAV23S KL31 |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Diode Configuration | 1 Pair Series Connection |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 250 V |
| Current - Average Rectified (Io) (per Diode) | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 200 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 50 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 250 V |
| Operating Temperature - Junction | 150°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | BAV23 |

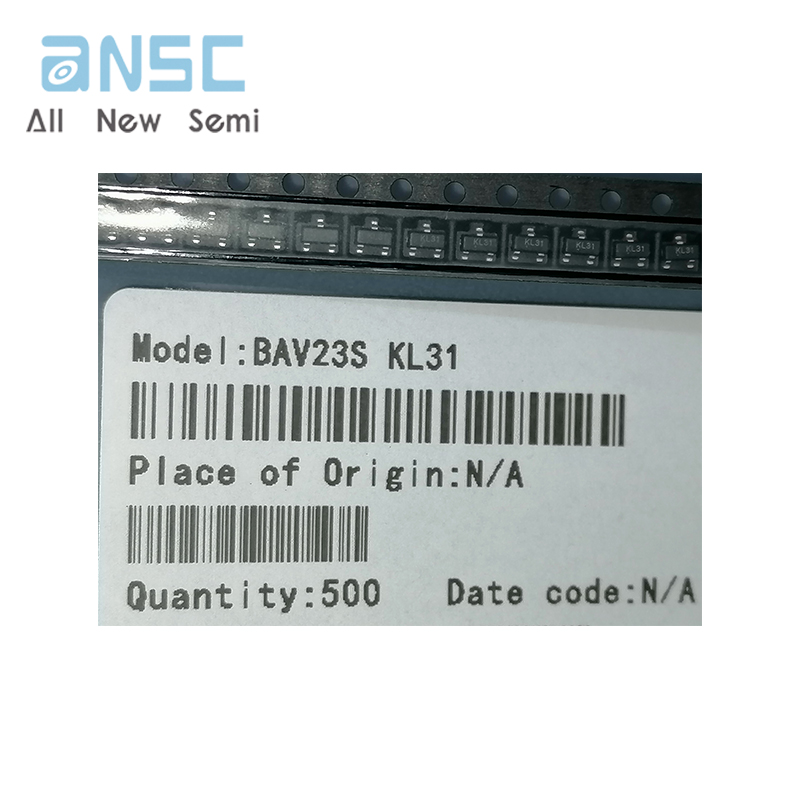

Actual product photos

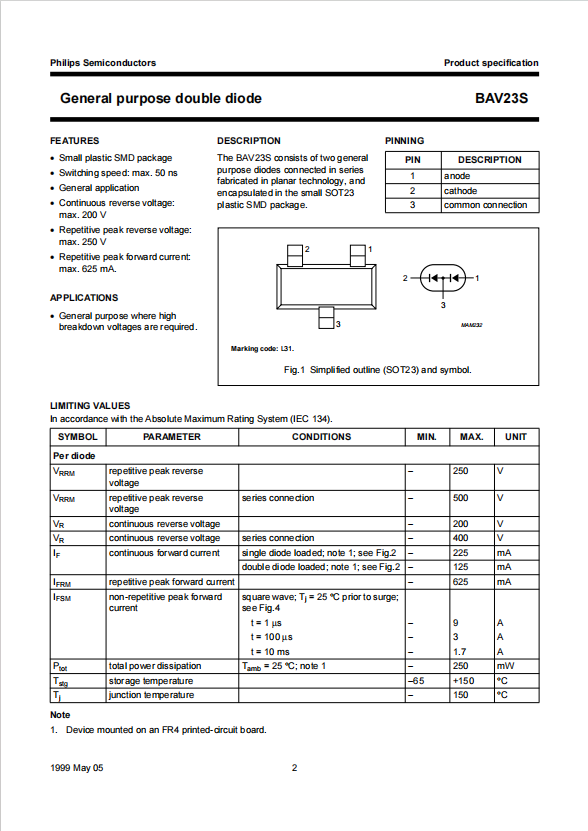

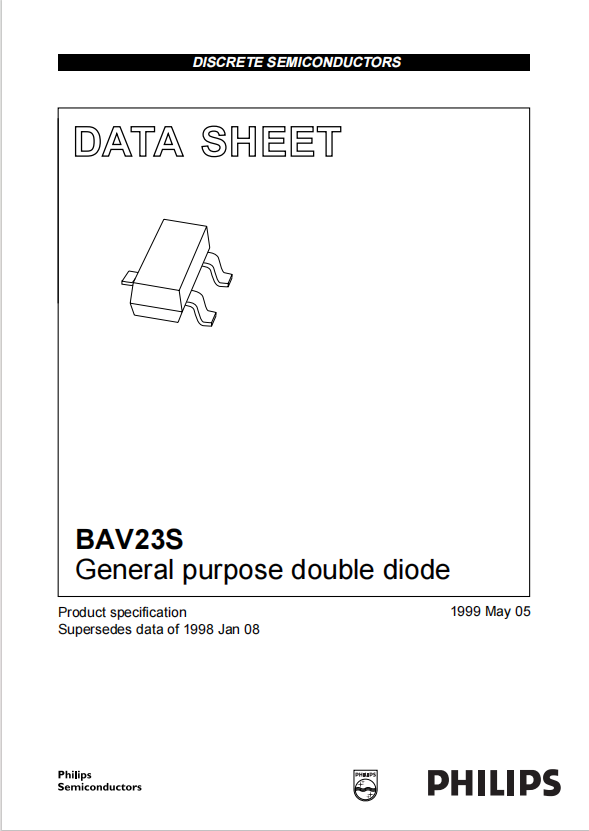

Product Data Book：
For more product information, please download the PDF
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
