Product Feature
? Glass passivated
? High maximum operating temperature
? Low leakage current
? Excellent stability
? Guaranteed avalanche energy absorption capability
? Available in ammo-pack.
Product DESCRIPTION
Rugged glass SOD57 package, using a high temperature alloyed construction. This package is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BYV95B |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8541.10.00.80 |
| Automotive | No |
| PPAP | No |
| Type | Switching Diode |
| Maximum DC Reverse Voltage (V) | 400 |
| Configuration | Single |
| Peak Reverse Repetitive Voltage (V) | 400 |
| Maximum Continuous Forward Current (A) | 1.5 |
| Peak Non-Repetitive Surge Current (A) | 35 |
| Peak Forward Voltage (V) | 1.6@3A |
| Peak Reverse Current (uA) | 5 |
| Peak Reverse Recovery Time (ns) | 250 |
| Minimum Operating Temperature (°C) | -65 |
| Maximum Operating Temperature (°C) | 175 |
| Diameter | 4.1(Max) |
| Mounting | Through Hole |
| Package Length | 7.2(Max) |
| PCB changed | 2 |
| Supplier Package | Case D-2 |
| Pin Count | 2 |

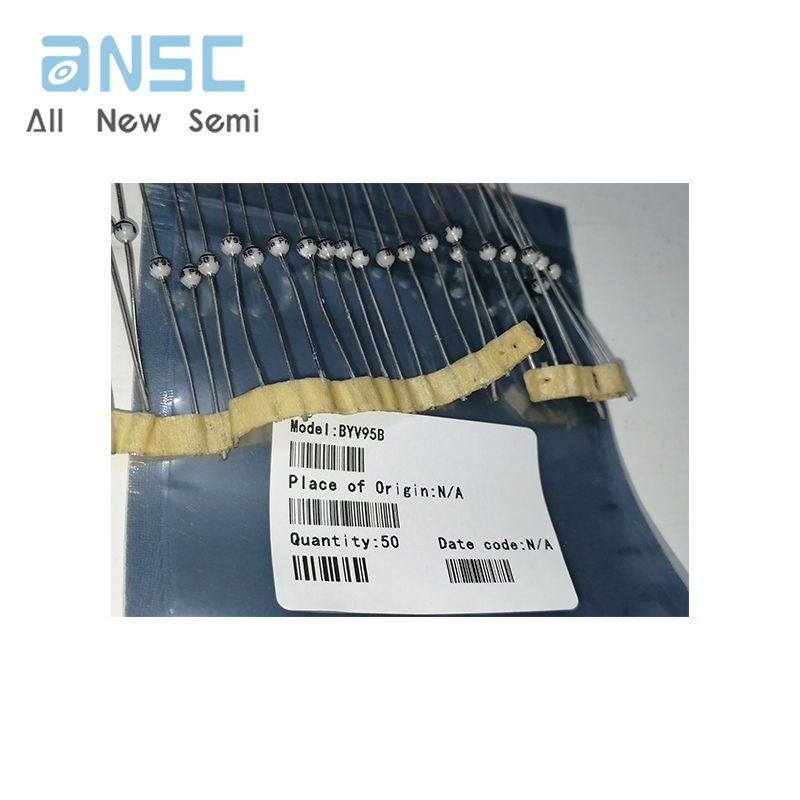

Actual product photos

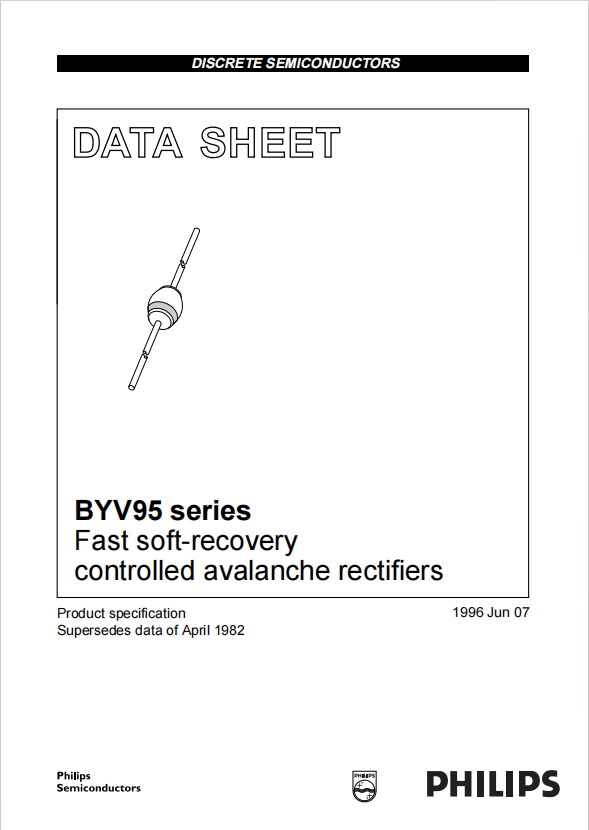

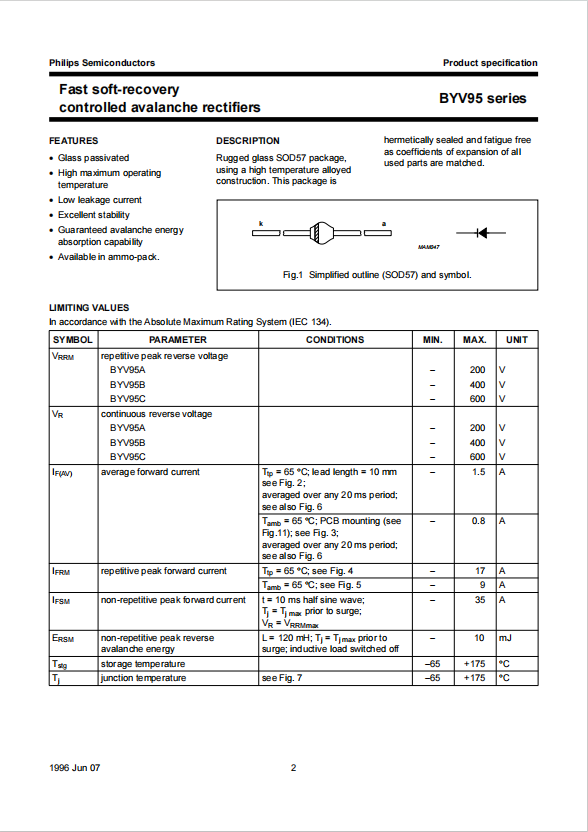

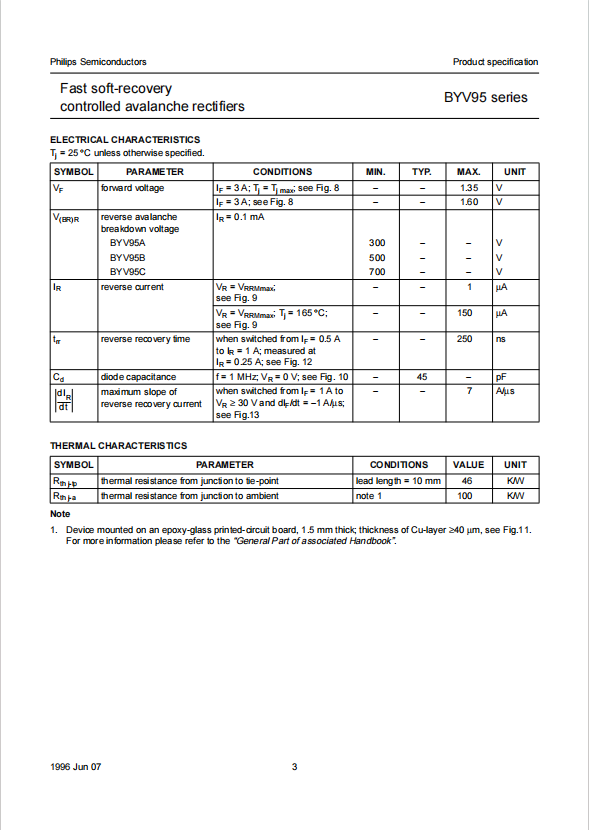

Product Data Book：
For more product information, please download the PDF
