Product Feature
? 6.0 mmx3.5 mm-type for space saving, high-density mounting
? Excellent clear click feeling
? Wave soldering available
? Excellent soldering heat endurance due to heat-resistant resin
? Excellent mounting efficiency with radial taping package
Product Mechanical Data
? Car Audio Equipment
? Compact Disc Players
? Operating switches for Electronic Equipment
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-EVQPJU04K |
| Category | Switches |
| Tactile Switches | |
| Mfr | Panasonic Electronic Components |
| Series | EVQPJ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Obsolete |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Actuator Height off PCB, Vertical | 4.30mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | J Lead |
| Outline | 6.00mm x 3.50mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 240gf |
| Ingress Protection | - |
| Features | Tactile Feedback |
| Operating Temperature | -30°C ~ 85°C |
| Actuator Material | - |
| Switch Travel | 0.25mm |
| Mechanical Life | 30,000 Cycles |
| Base Product Number | EVQ-PJ |
Actual product photos

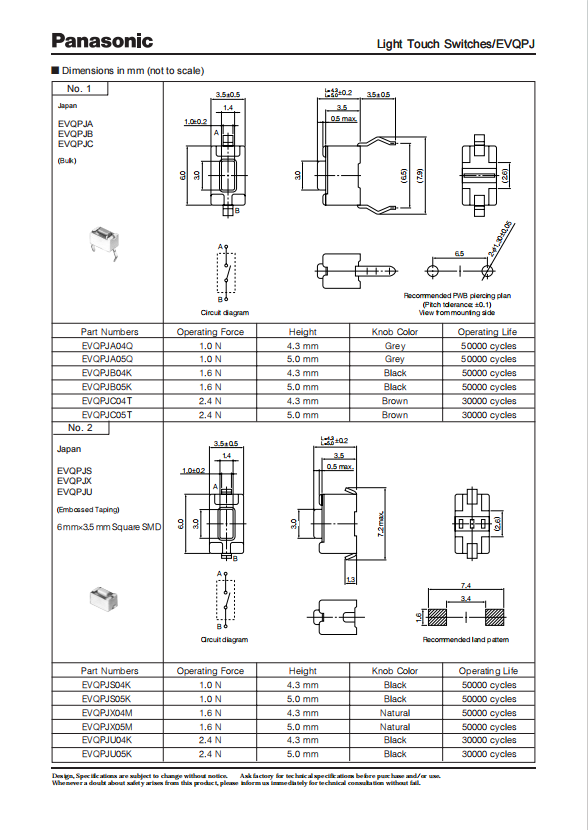

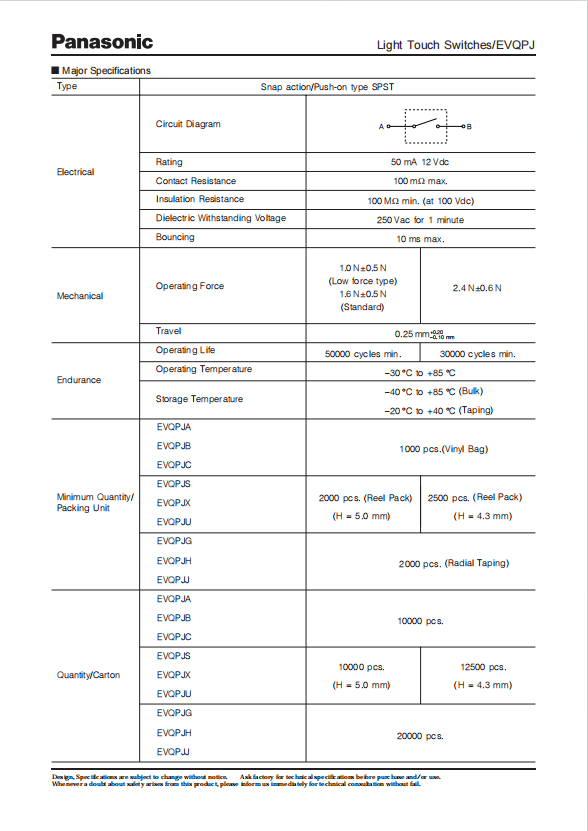

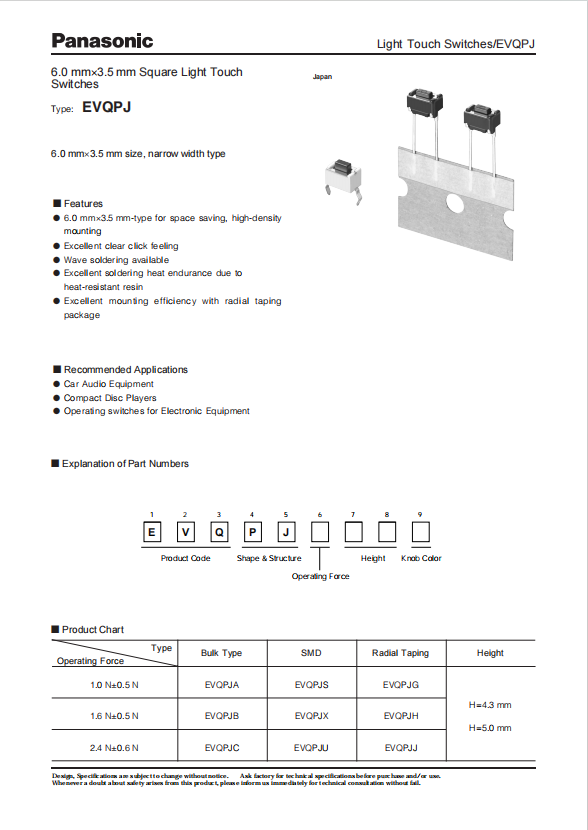

Product Data Book：
For more product information, please download the PDF
