Product Feature
? The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
? Fast switching for high efficiency
? Low reverse leakage
? High forward surge current capability
? High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension
? This is a Pb ? Free Device
? All SMC parts are traceable to the wafer lot ? Additional testing can be offered upon request
Product Mechanical Data
? Case: JEDEC DO-41 molded plastic body
? Terminals: Plated axial leads, solderable per MIL- STD-750, Method 2026
? Polarity: Color band denotes cathode end
? Mounting Position: Any
? Weight:0.012 ounce, 0.33 grams
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-FR107 |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | SMC Diode Solutions |
| Series | - |
| Package | Cut Tape (CT) |
| Tape & Box (TB) | |
| Product Status | Obsolete |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 500 ns |
| Current - Reverse Leakage @ Vr | 5 μA @ 1000 V |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Base Product Number | FR10 |

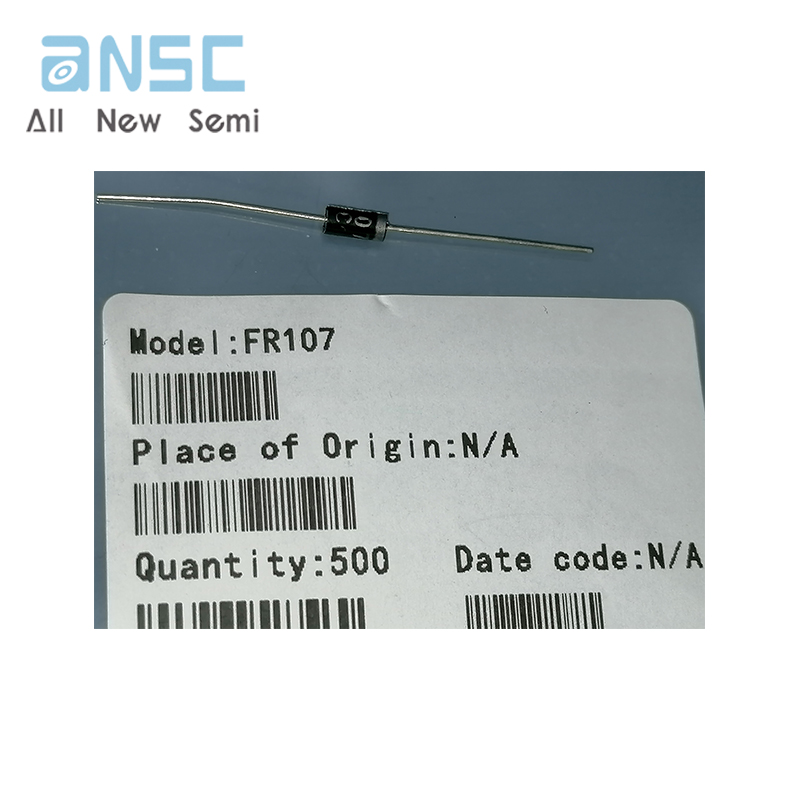

Actual product photos

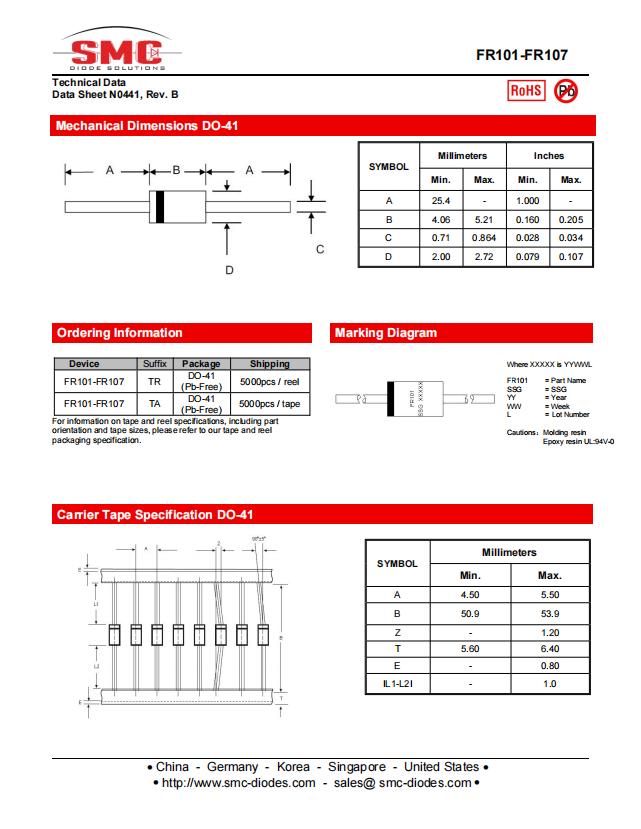

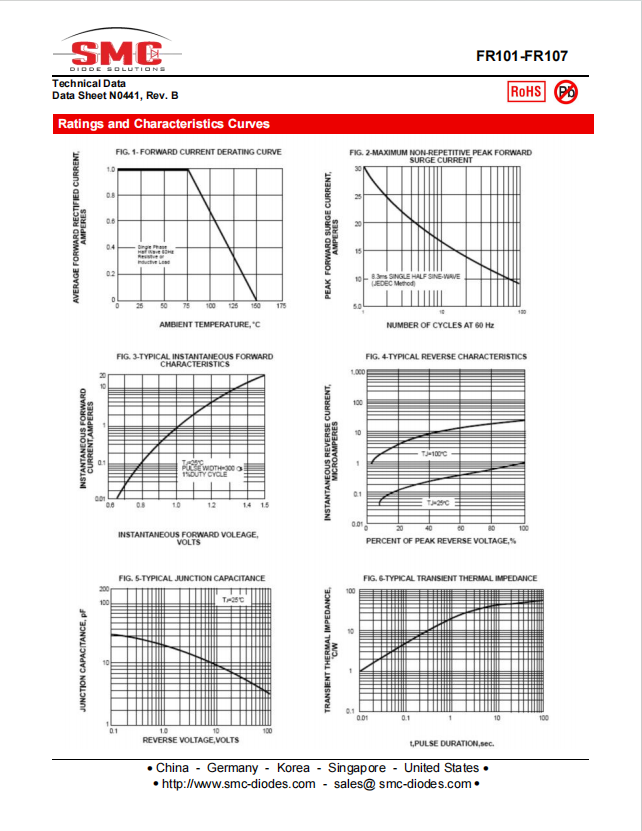

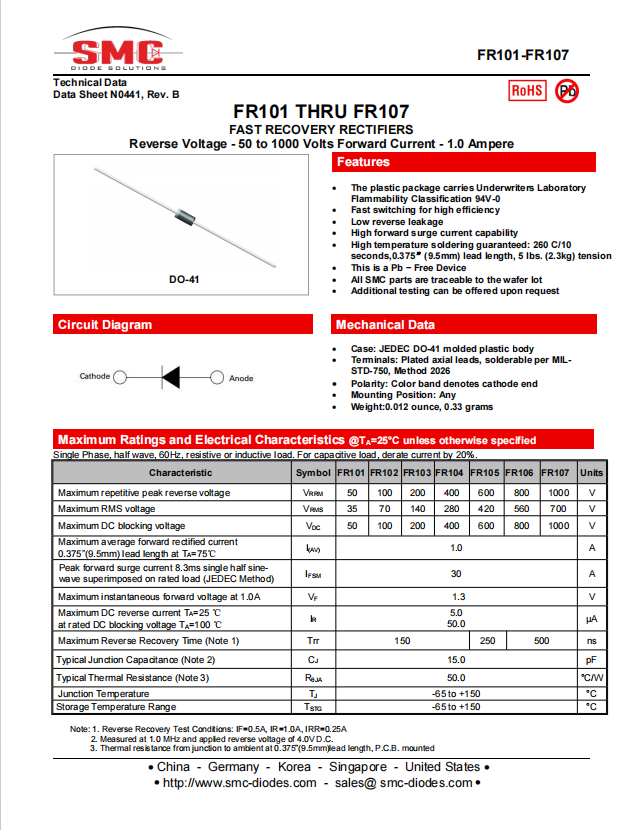

Product Data Book：
For more product information, please download the PDF
