Product Features

1. Space-saving on Board

Double row contact arrangement with 2mm pitch has been condensed within a 5mm width. Double the number of signals can be secured in

the same space as a conventional 2mm singlerow connector.

2. Wide Varieties

The connection method is crimping. Variations are available in cable-to-board, in-line, and board-to-board to expand PCB design freedom.

Additionally, both gold and tin plating can be selected based on the application and SMT compatible products are also available.

3. Wide Applicable Wire Range

The double 2mm pitch rows are compact while enabling an applicable wire range of 22 to 30 AWG.

Attribute	Attribute value
ANSM-Part#	ANSM-DF11-16DP-2DS(52)
Category	Connectors, Interconnects
	Rectangular Connectors
	Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF11
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.118" (3.00mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	-
Insulation Height	0.197" (5.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00μin (0.203μm)
Contact Finish - Post	-
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	-
Operating Temperature	-40°C ~ 85°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2A
Voltage Rating	250V
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	DF11

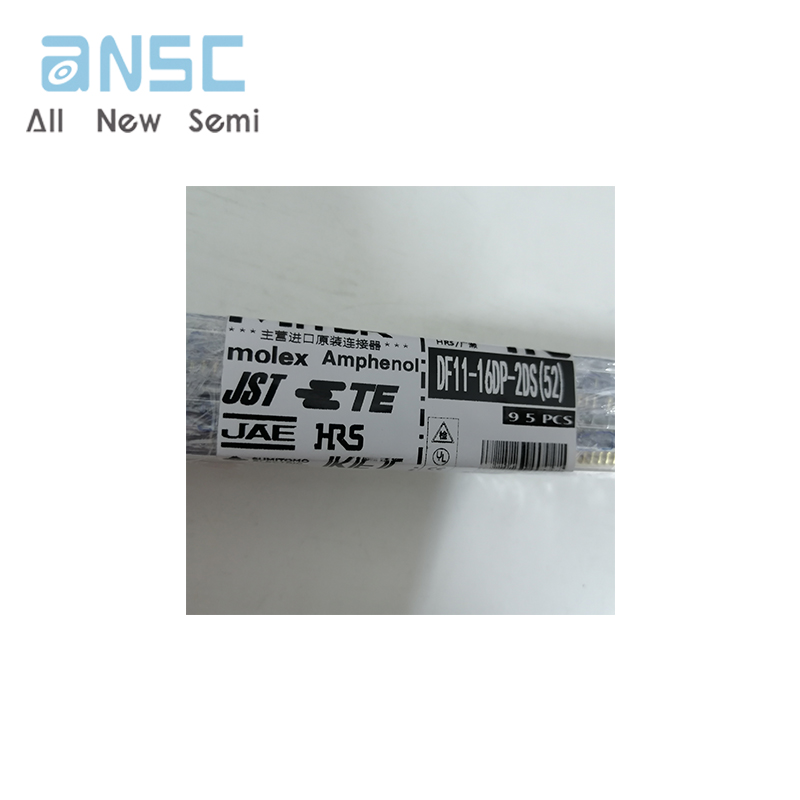

DF11-16DP-2DS(52)

Product Data Book：

搜狗高速瀏覽器截圖20240102093035

搜狗高速瀏覽器截圖20240102093043

搜狗高速瀏覽器截圖20240102093049

For more product information, please download the PDF
