Product Descriptions
The PTVA104501EH LDMOS FET is designed for use in power ampli-fi er applications in the 960 to 1215 MHz frequency band. Features include high gain and thermally-enhanced package with bolt-down fl ange. Manufactured with Infi neon's advanced LDMOS process, this device provides excellent thermal performance and superior reliability
Product Features
? Broadband internal input and output matching
? High gain and effi ciency
? Integrated ESD protection
? Low thermal resistance
? Excellent ruggedness
? Pb-free and RoHS compliant
? Capable of withstanding a 10:1 load mismatch (all phase angles) at 450 W peak under RF pulse, 128 μS, 10% duty cycle.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-PTVA104501EH |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| RF FETs, MOSFETs | |
| Mfr | MACOM Technology Solutions |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Technology | LDMOS |
| Frequency | 960MHz ~ 1.215GHz |
| Gain | 17.5dB |
| Voltage - Test | 50 V |
| Current Rating (Amps) | - |
| Noise Figure | - |
| Current - Test | 200 mA |
| Power - Output | 450W |
| Voltage - Rated | 105 V |
| Mounting Type | Chassis Mount |
| Package / Case | H-33288-2 |
| Supplier Device Package | H-33288-2 |
| Base Product Number | PTVA104501 |

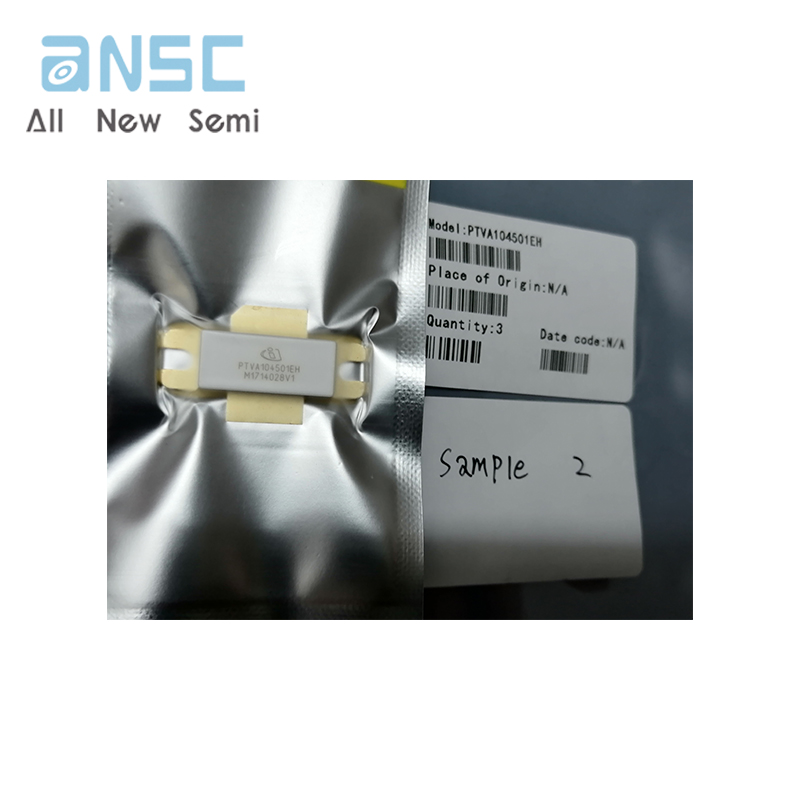

Actual product photos

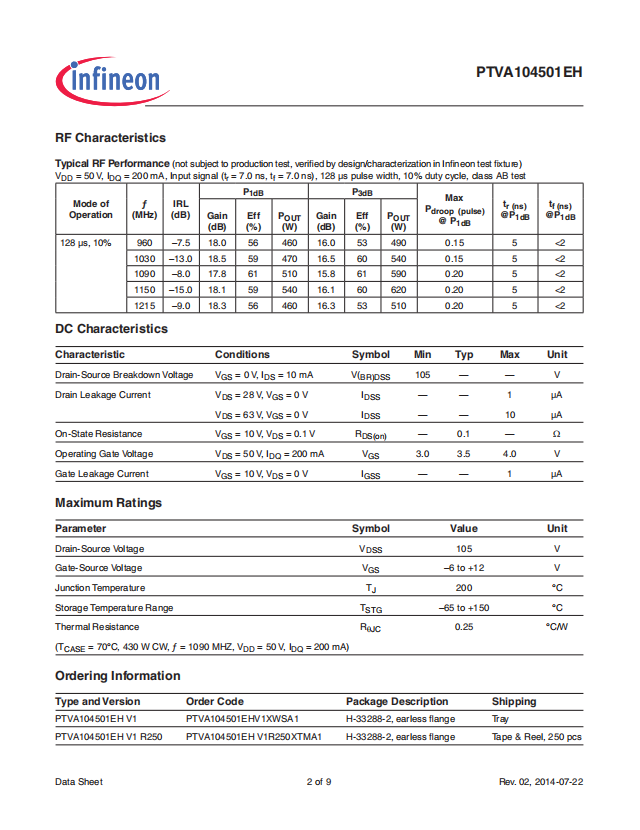

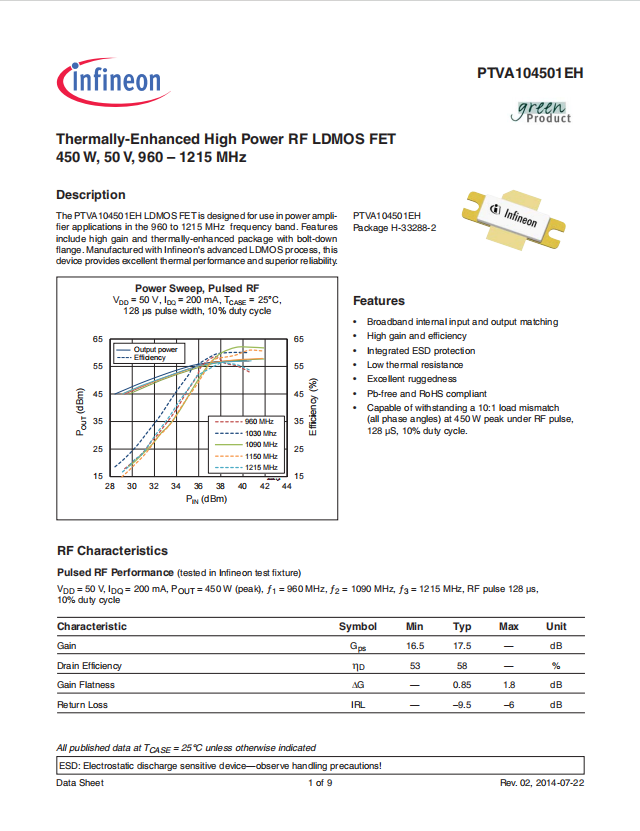

Product Data Book：
For more product information, please download the PDF
