Product Descriptions
Powerex IGBTMOD? Modules are designed for use in switching applications. Each module consists of two IGBT Transistors in a half-bridge
configuration with each transistor having a reverseconnected super-fast recovery free-wheel diode. All components and interconnects are
isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.
Product Features
? Low Drive Power
? Low VCE(sat)
? Discrete Super-Fast Recovery (135ns) Free-Wheel Diode
? High Frequency Operation (20-25kHz)
? Isolated Baseplate for Easy Heat Sinking
Product Applications
? AC Motor Control
? Motion/Servo Control
? UPS
? Welding Power Supplies
? Laser Power Supplies
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CM200DY-24H |
| Category | Discrete Semiconductor Products |
| Transistors | |
| IGBTs | |
| IGBT Modules | |
| Mfr | Powerex Inc. |
| Series | IGBTMOD? |
| Package | Bulk |
| Product Status | Obsolete |
| IGBT Type | - |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 200 A |
| Power - Max | 1500 W |
| Vce(on) (Max) @ Vge, Ic | 3.4V @ 15V, 200A |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 40 nF @ 10 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |

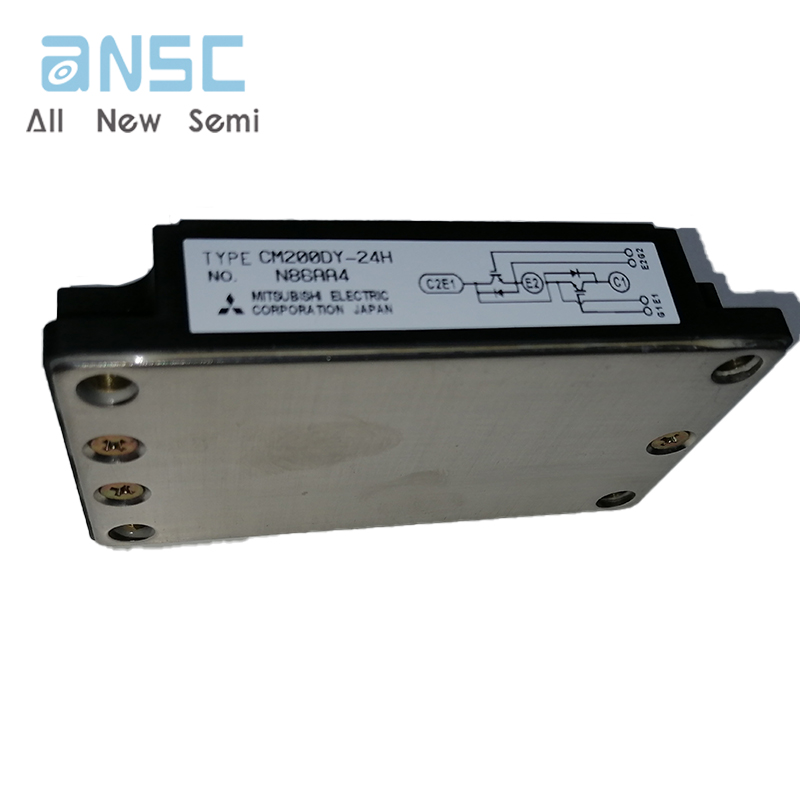

Actual product photos

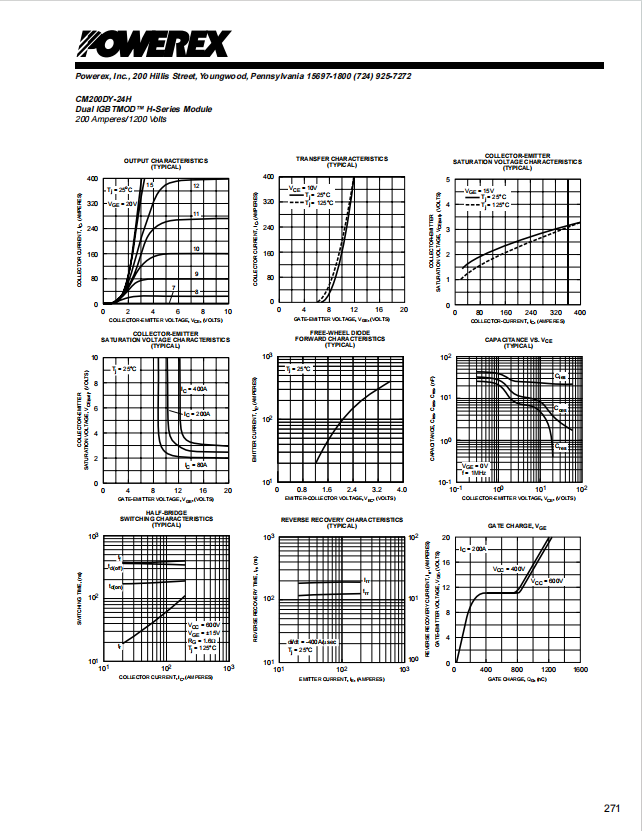

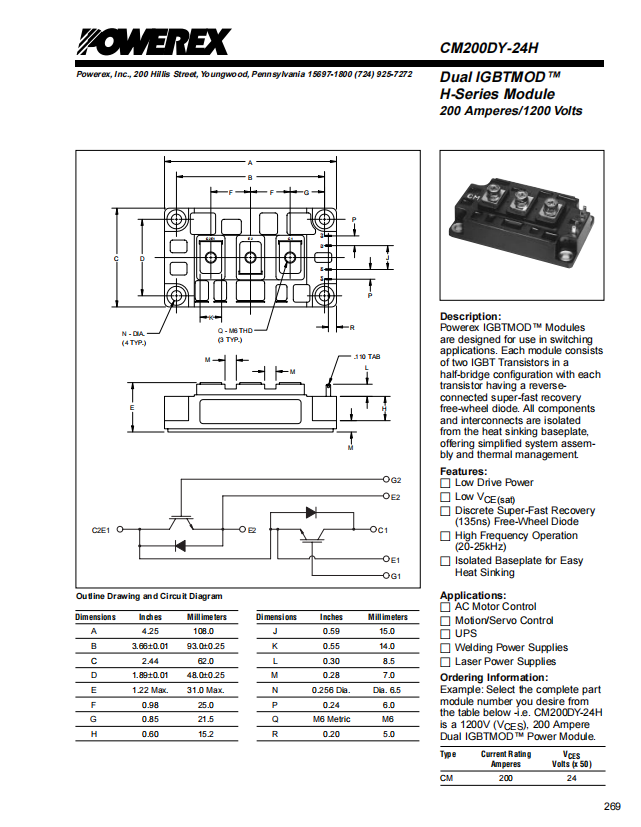

Product Data Book：
For more product information, please download the PDF
