Product Descriptions
Designed for thick and thin–film circuits using surface mount components and requiring low–noise, high–gain signal amplification at frequencies to 1.0 GHz.
? High Gain — Gpe = 17 dB Typ @ f = 450 MHz
? Low Noise — NF = 2.5 dB Typ @ f = 450 MHz
? Available in tape and reel packaging options:
T1 suffix = 3,000 units per reel
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MMBR5031LT1 |
| ECCN (US) | EAR99 |
| Part Status | Obsolete |
| Automotive | No |
| PPAP | No |
| Type | NPN |
| Material | Si |
| Configuration | Single |
| Number of Elements per Chip | 1 |
| Maximum Collector Base Voltage (V) | 15 |
| Maximum Collector-Emitter Voltage (V) | 10 |
| Maximum Collector-Emitter Voltage Range (V) | <20 |
| Maximum Emitter Base Voltage (V) | 3 |
| Maximum DC Collector Current (A) | 0.02 |
| Maximum DC Collector Current Range (A) | 0.001 to 0.06 |
| Maximum Collector Cut-Off Current (nA) | 10 |
| Operational Bias Conditions | 6V/1mA |
| Minimum DC Current Gain | 25@1mA@6V |
| Minimum DC Current Gain Range | 2 to 30 |
| Maximum Junction Case Thermal Resistance | 250°C/W |
| Typical Output Capacitance (pF) | 1.5(Max) |
| Maximum Power Dissipation (mW) | 300 |
| Typical Power Gain (dB) | 17 |
| Maximum Transition Frequency (MHz) | 1000(Typ) |
| Maximum Noise Figure (dB) | 2.5(Typ) |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 150 |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 0.94 |
| Package Width | 1.3 |
| Package Length | 2.9 |
| PCB changed | 3 |
| Standard Package Name | SOT |
| Supplier Package | SOT-23 |
| Pin Count | 3 |
| Lead Shape | Gull-wing |

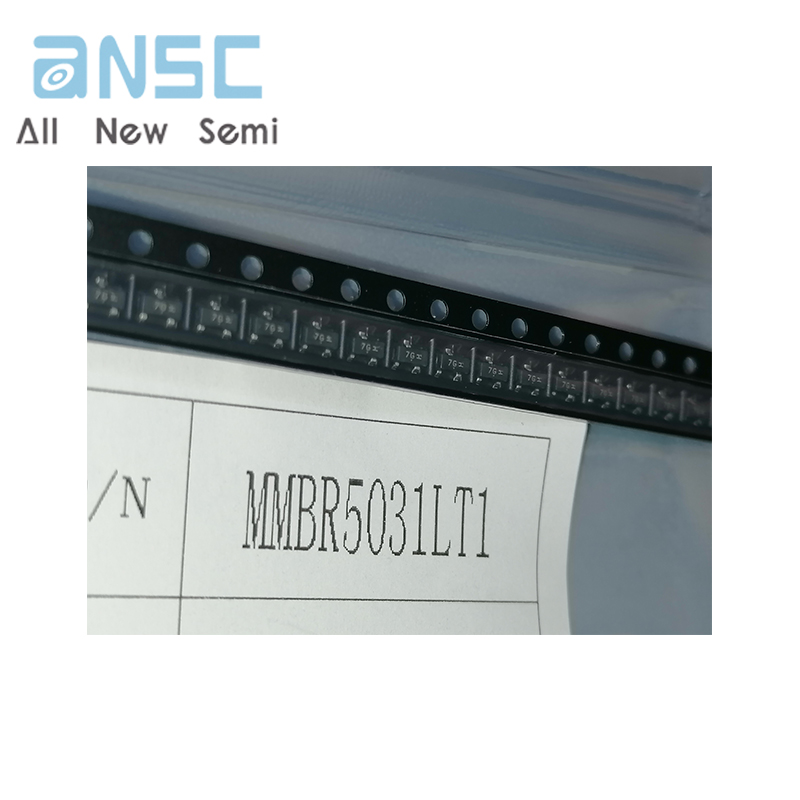

Actual product photos
