Product Features
SinglFuse? SF-1206S Series Features
■ Slow blow thin film chip fuse for overcurrent protection
■ 3216 (EIA 1206) miniature footprint
■ Surface mount packaging for automated assembly
■ UL 248-14 compliant
■ RoHS compliant* and halogen free**
Product Applications
SinglFuse? SF-1206S Series Applications
■ Portable memory
■ LCD monitors
■ Disk drives
■ PDAs
■ Digital cameras
■ DVDs
■ Cell phones
■ Rechargeable battery packs
■ Battery chargers
■ Set top boxes
■ Industrial controllers
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SF-1206S100 |
| Category | Circuit Protection |
| Fuses | |
| Mfr | Bourns Inc. |
| Series | SinglFuse? SF-1206S |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 1 A |
| Voltage Rating - DC | 63 V |
| Response Time | Slow Blow |
| Package / Case | 1206 (3216 Metric) |
| Breaking Capacity @ Rated Voltage | 50A |
| Melting I2t | 0.098 |
| Approval Agency | UL |
| Operating Temperature | -20°C ~ 105°C |
| Color | - |
| Size / Dimension | 0.122" L x 0.061" W x 0.024" H (3.10mm x 1.55mm x 0.60mm) |
| DC Cold Resistance | 0.108 Ohms |
| Base Product Number | SF-1206 |

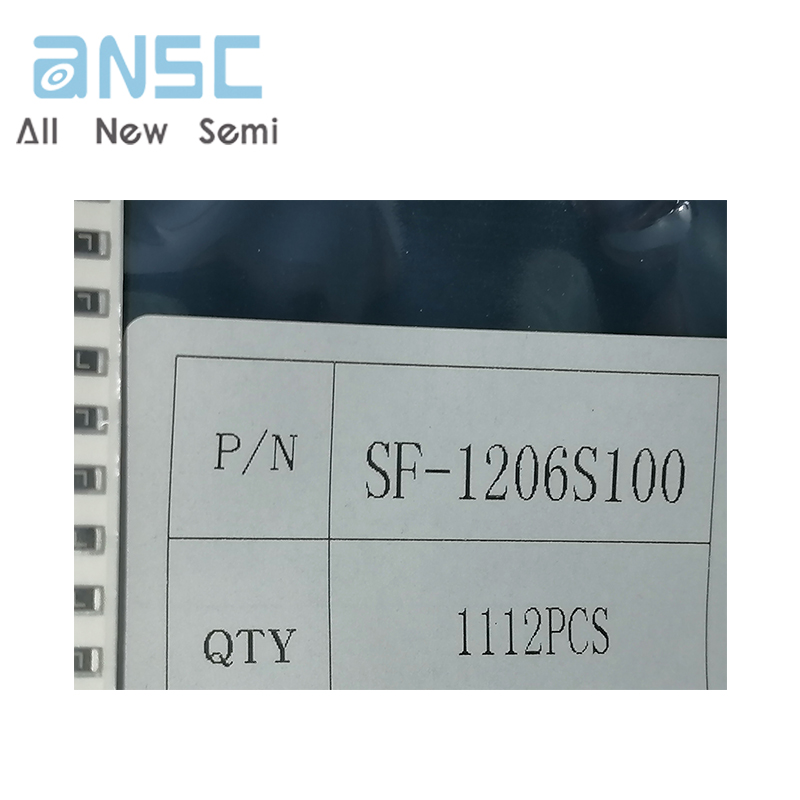

Actual product photos

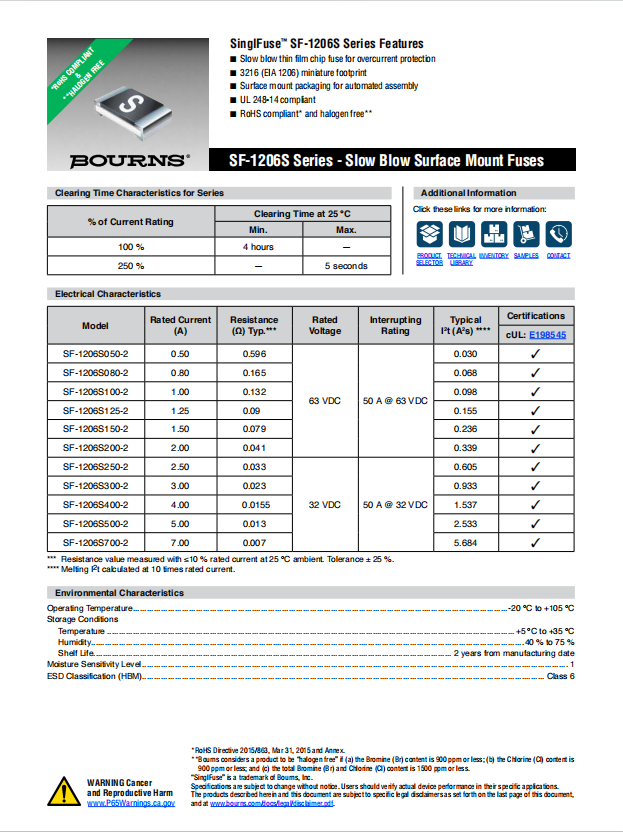

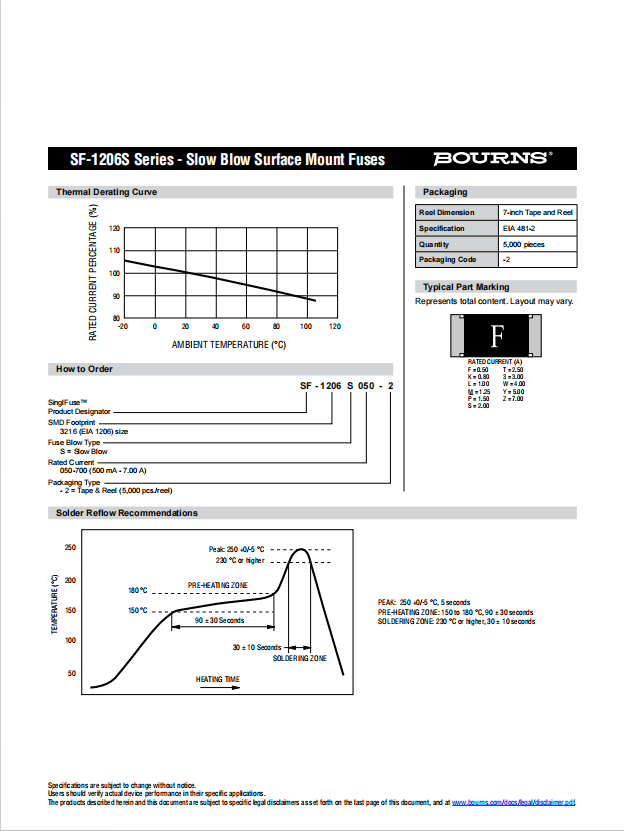

Product Data Book：
For more product information, please download the PDF
