Product Features
? High collector current
? Low saturation voltage
? Three current gain groups (BCP53)
? Compliant to RoHS (w/o exemp.)
? REACH, Conflict Minerals 1)
Product Mechanical Data
? Taped and reeled
? Weight approx.
? Case material
? Solder & assembly conditions
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BCP53-10 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | Diotec Semiconductor |
| Series | - |
| Package | Box |
| Product Status | Active |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 63 @ 500mA, 2V |
| Power - Max | 1.3 W |
| Frequency - Transition | 120MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 |

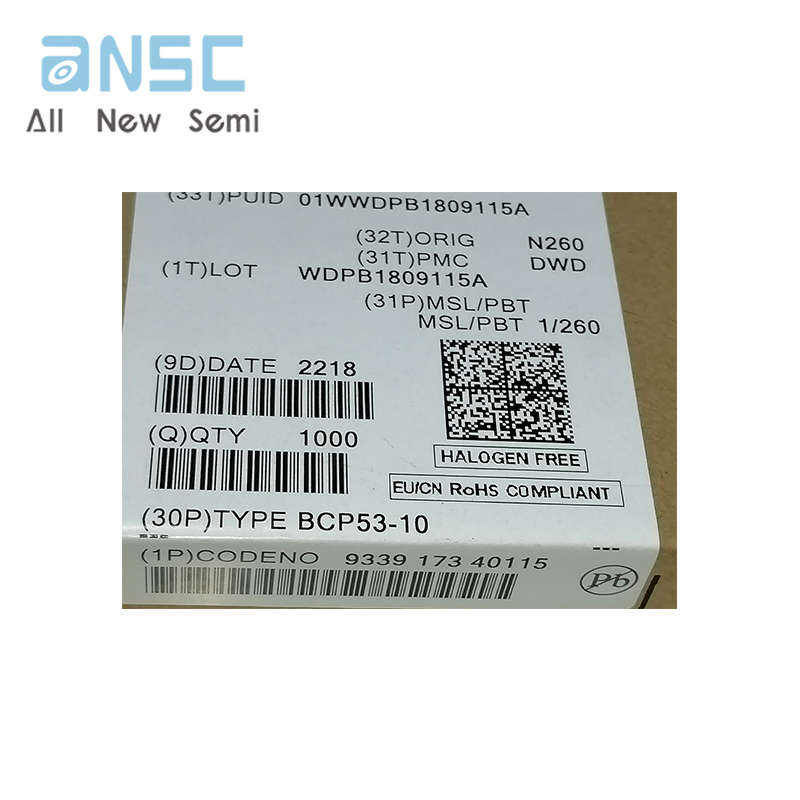

Actual product photos

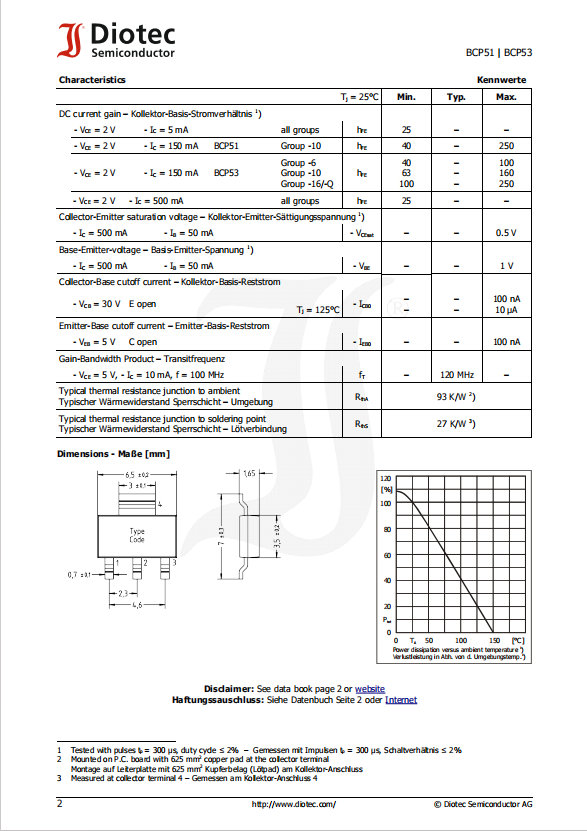

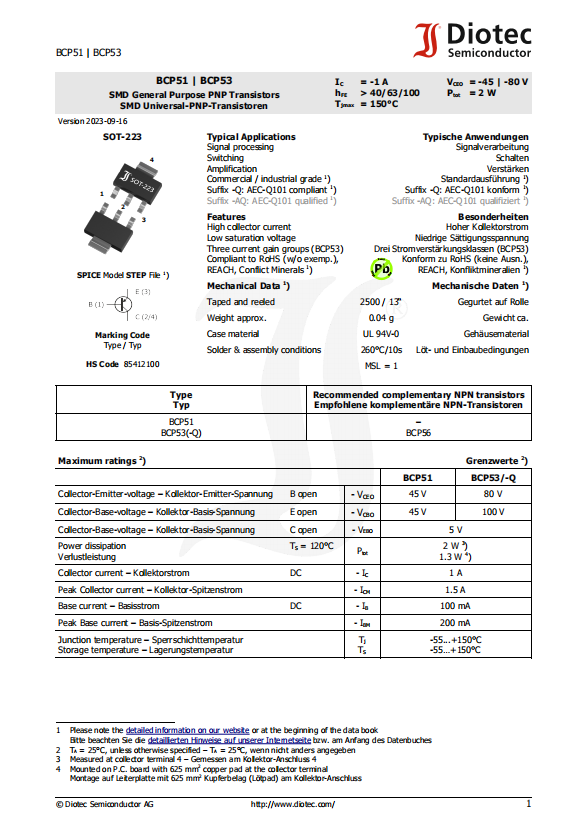

Product Data Book：
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
