Product Features
? Square RBSOA
? Low Saturation Voltage
? Improved FWD Characteristic
? Minimized Internal Stray Inductance
Product Applications
? High Power Switching
? A.C. Motor Controls
? D.C. Motor Controls
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-6MBI15GS-060 |
| Manufacturer | FUJI ELECTRIC |
| Mounting Type | THT |
| Package / Case | COMB11P |
| Diode | WITH DIODE |
| Ic 25°C | 15A |
| Current | 15A |
| Temperature (IC) | 25°C |
| Voltage | 600V |
| Operating Temperature | -40°C ~ +125°C |
| Tj °C | 150°C |
| VCE Sat | 2.8V |
| Power Dissipation | 60W |
| Configuration | SIX |
| Rohs | NON ROHS |
| Packaging | BOX |

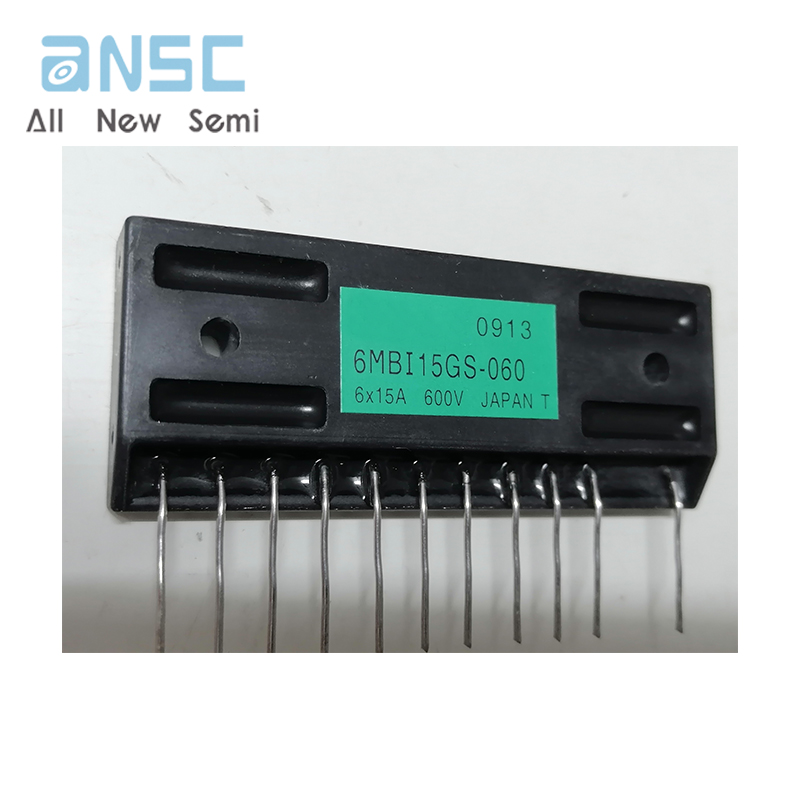

Actual product photos

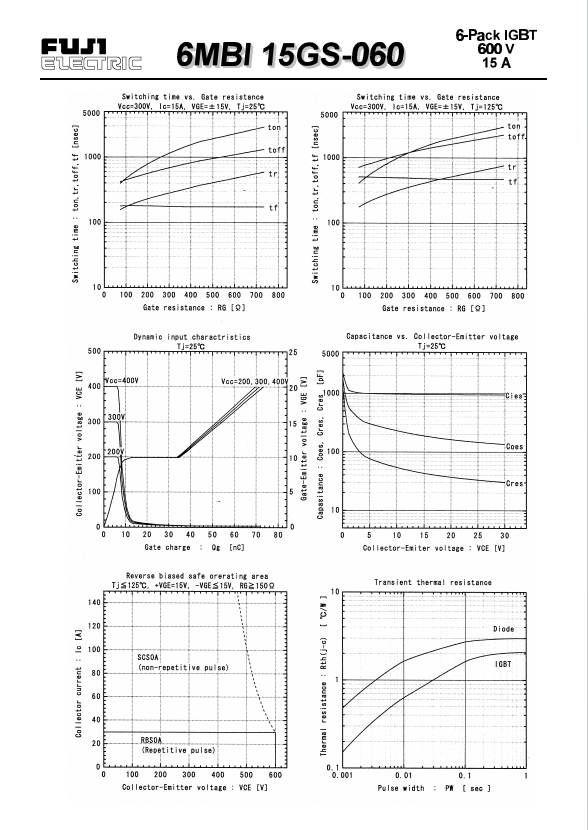

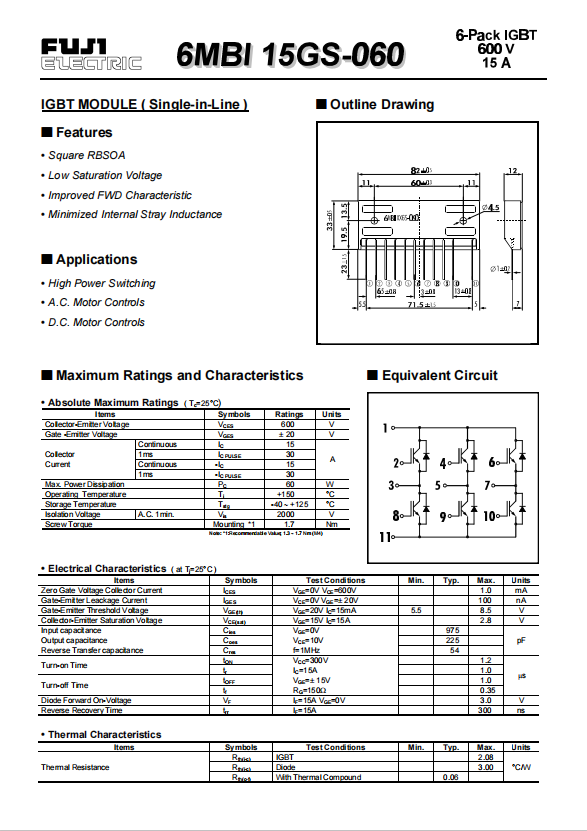

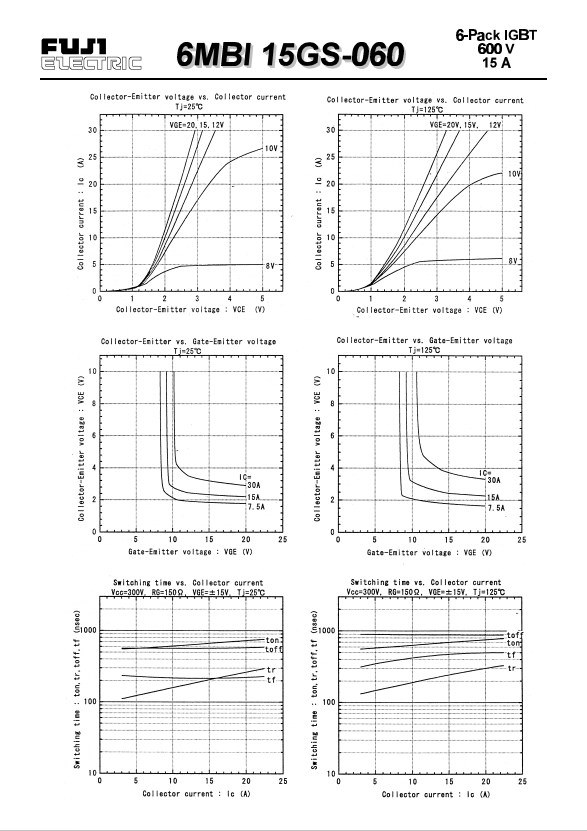

Product Data Book：
For more product information, please download the PDF
