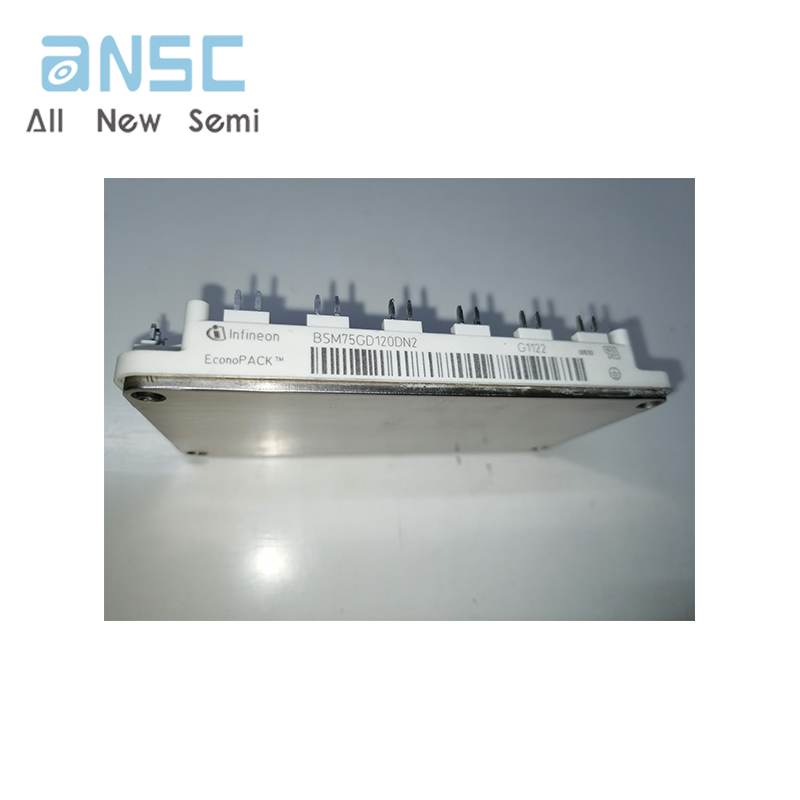

Product Features
? Solderable Power module
? 3-phase full-bridge
? Including fast free-wheel diodes
? Package with insulated metal base plate
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BSM75GD120DN2 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| IGBTs | |
| IGBT Modules | |
| Mfr | Infineon Technologies |
| Series | - |
| Package | Tray |
| Product Status | Obsolete |
| IGBT Type | - |
| Configuration | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 103 A |
| Power - Max | 520 W |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 75A |
| Current - Collector Cutoff (Max) | 1.5 mA |
| Input Capacitance (Cies) @ Vce | 5.1 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
| Base Product Number | BSM75GD120 |
Actual product photos
Product Data Book：

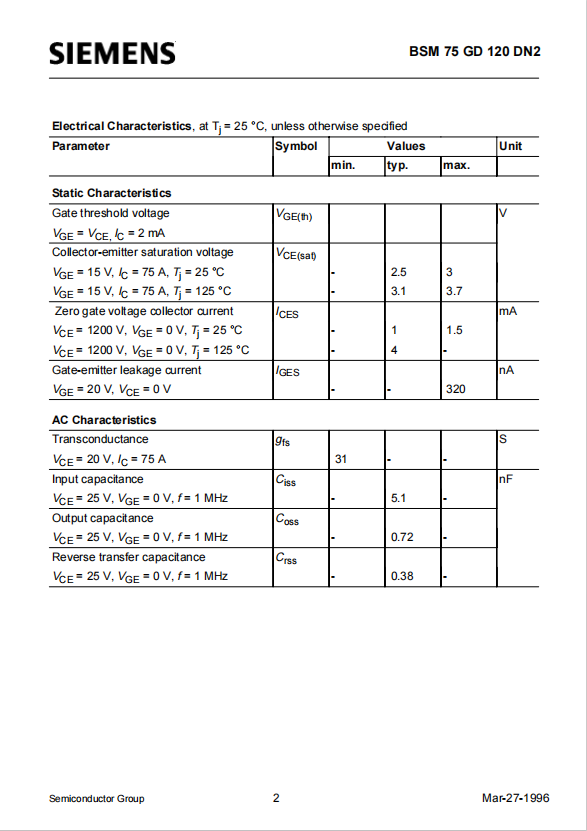

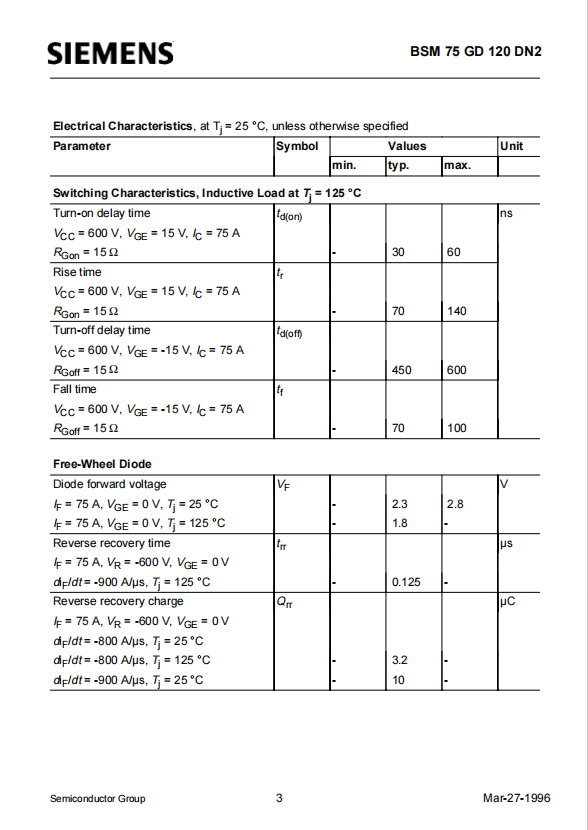

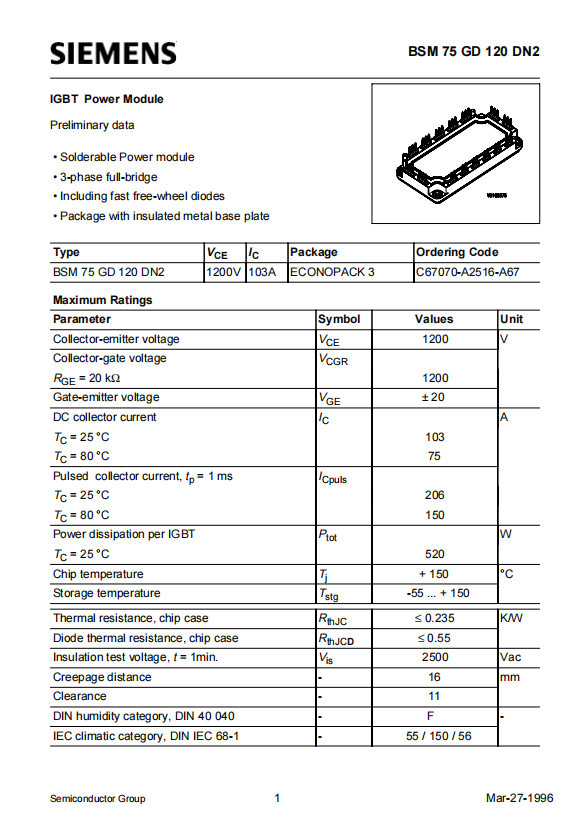

For more product information, please download the PDF
