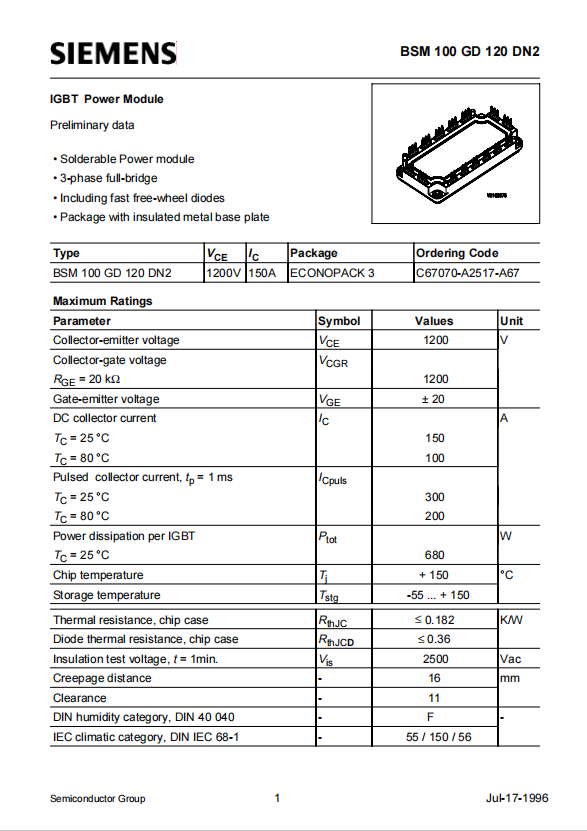

Product Features
? Solderable Power module
? 3-phase full-bridge
? Including fast free-wheel diodes
? Package with insulated metal base plate

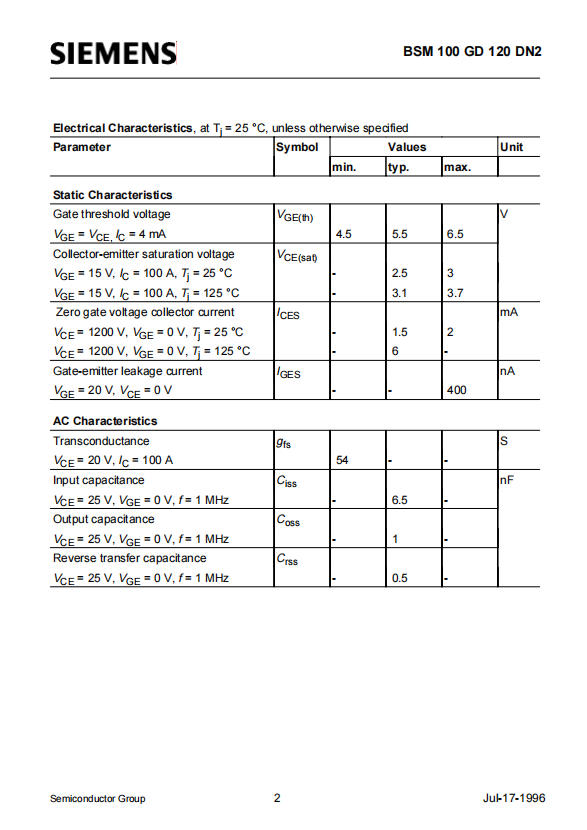

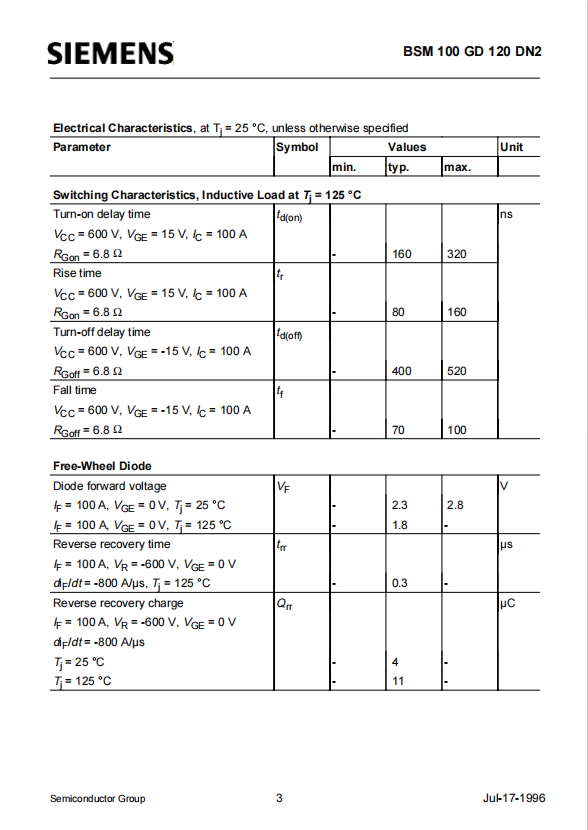

Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BSM100GD120DN2 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| IGBTs | |
| IGBT Modules | |
| Mfr | Infineon Technologies |
| Series | - |
| Package | Tray |
| Product Status | Last Time Buy |
| IGBT Type | - |
| Configuration | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 150 A |
| Power - Max | 680 W |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 2 mA |
| Input Capacitance (Cies) @ Vce | 6.5 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
| Base Product Number | BSM100 |

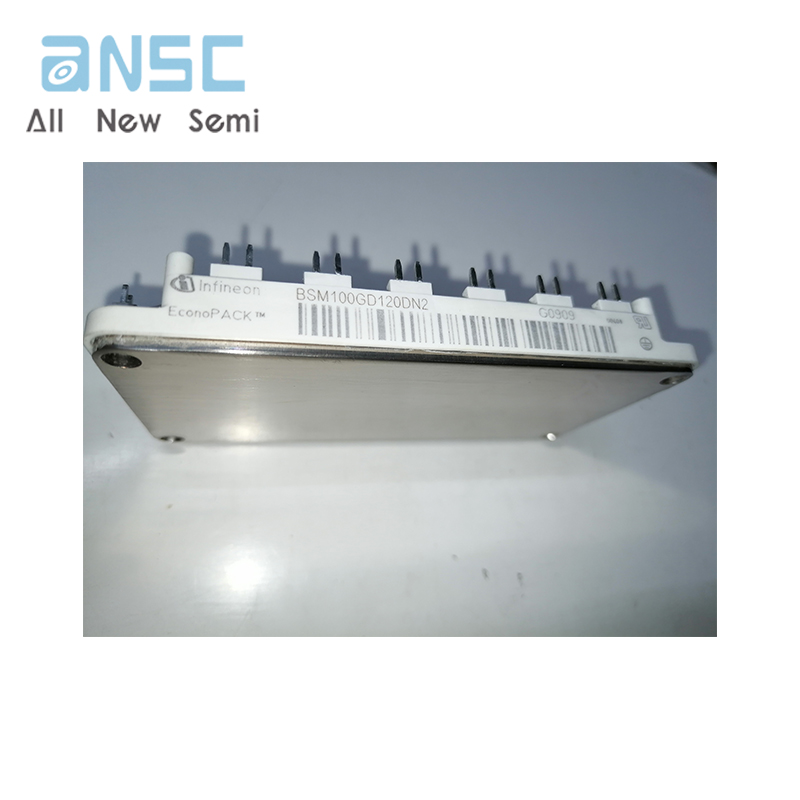

Actual product photos
