Product Features
? Homogeneous Si
? Trench = Trenchgate technology
? VCE(sat) with positive temperature coefficient
? High short circuit capability
? UL recognised file no. E63532
Product Typical Applications
? AC inverter drives
? UPS
? Electronic Welding
Product Remarks
? Case temperature limited to TC=125°C max.
? Product reliability results are valid for Tj=150°C
? Dynamic values apply to the
following combination of resistors:
RGon,main = 1,0 ?
RGoff,main = 1,0 ?
RG,X = 2,2 ?
RE,X = 0,5 ?
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SEMIX202GB12E4S |
| Part Number | 27890110 |
| Product Status | In production |
| Housing | SEMiX 2s (117x64x17) |
| (LLxBBxHH) | 117x64x17 |
| Switches | Half Bridge |
| VCES in V | 1200 |
| ICnom in A | 200 |
| Technology | IGBT 4 (Trench) |

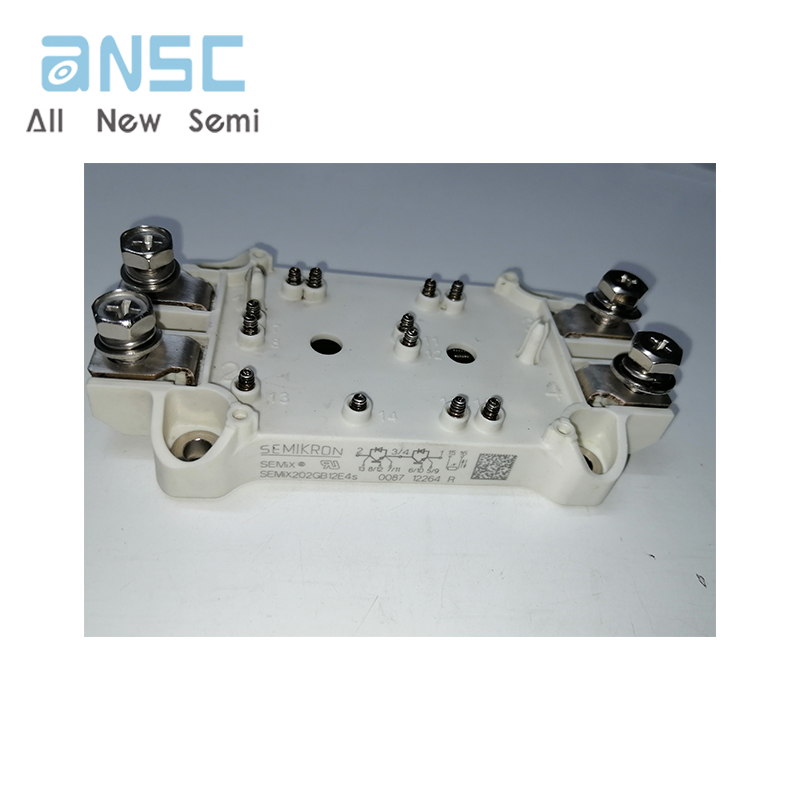

Actual product photos

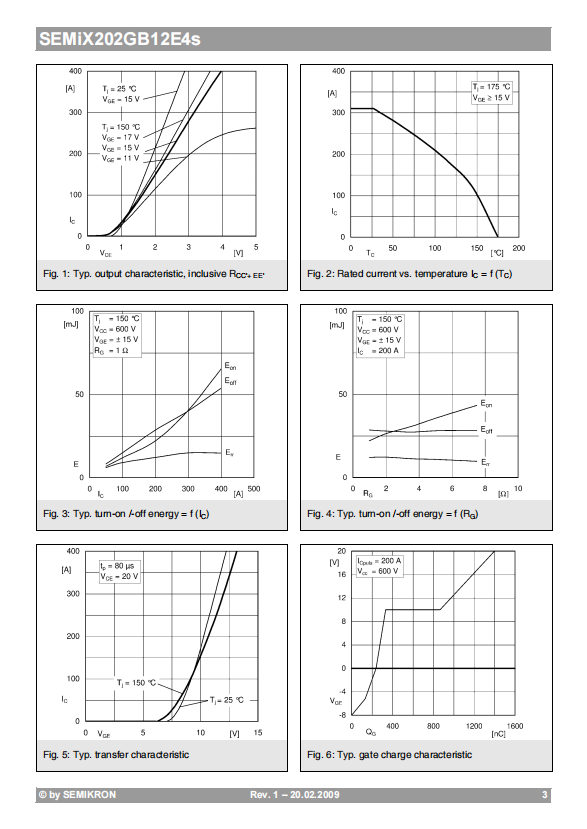

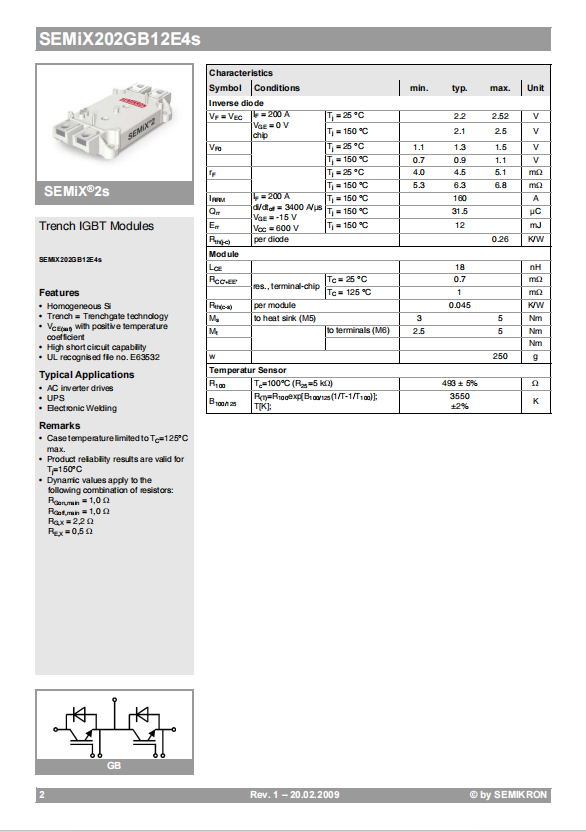

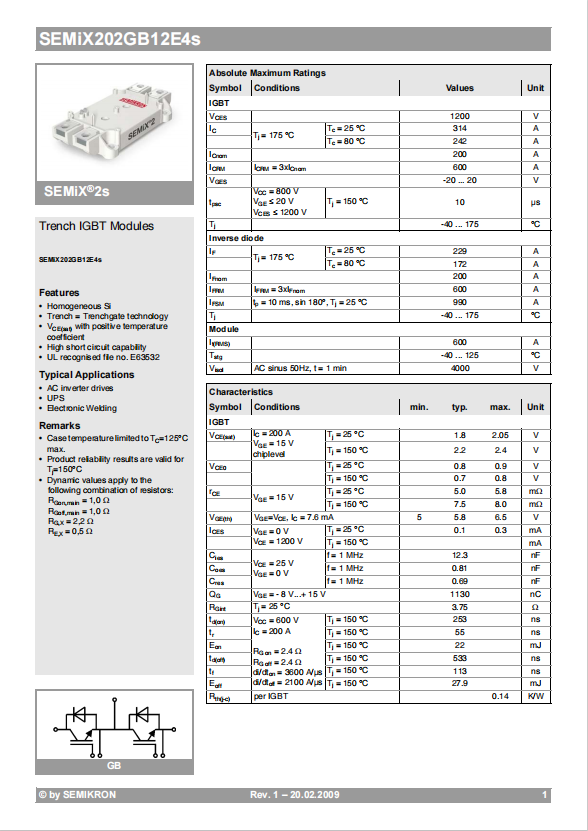

Product Data Book：
For more product information, please download the PDF
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
