Product Features

? Low profile package

? Ideal for automated placement

? Glass passivated pellet chip junction

? Low reverse current

? Low forward voltage

? Soft recovery characteristic

? Ultra fast reverse recovery time

? Meets MSL level 1, per J-STD-020, LF maximum peak

of 260 °C

? AEC-Q101 qualified available

- Automotive ordering code: base P/NHE3 or P/NHM3

Product TYPICAL APPLICATIONS

For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, automotive, and telecommunication.

Product MECHANICAL DATA

Case: SMA (DO-214AC)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Base P/N-M3 - halogen-free, RoHS-compliant, and

commercial grade

Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified

Base P/NHM3_X - halogen-free, RoHS-compliant, and

AEC-Q101 qualified

(“_X” denotes revision code e.g. A, B,...)

Terminals: matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3, M3, HE3, and HM3 suffix meet JESD 201 class 2

whisker test

Polarity: color band denotes the cathode end

Specifications

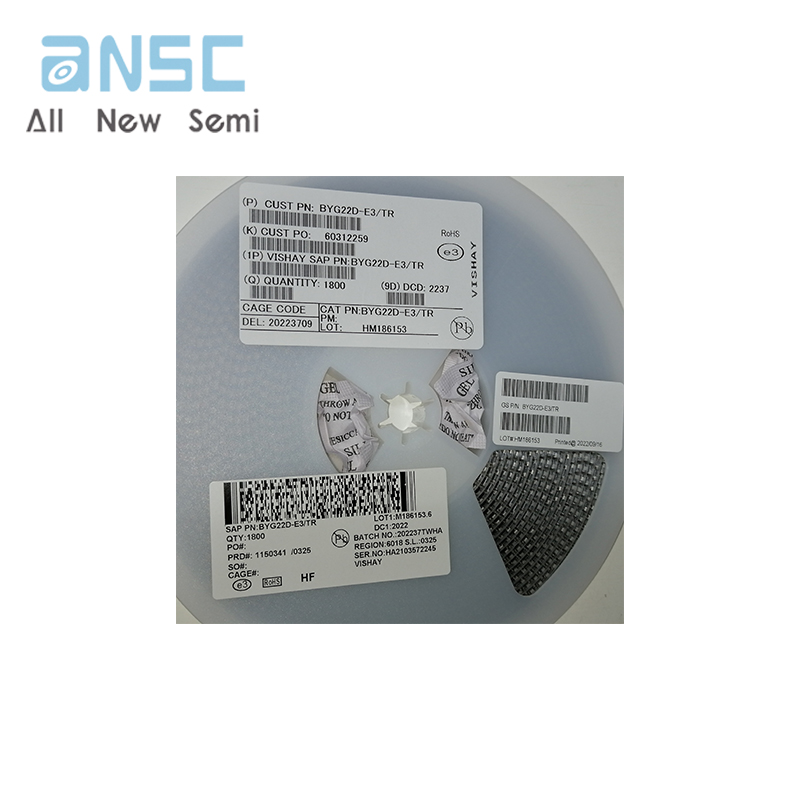

Actual product photos

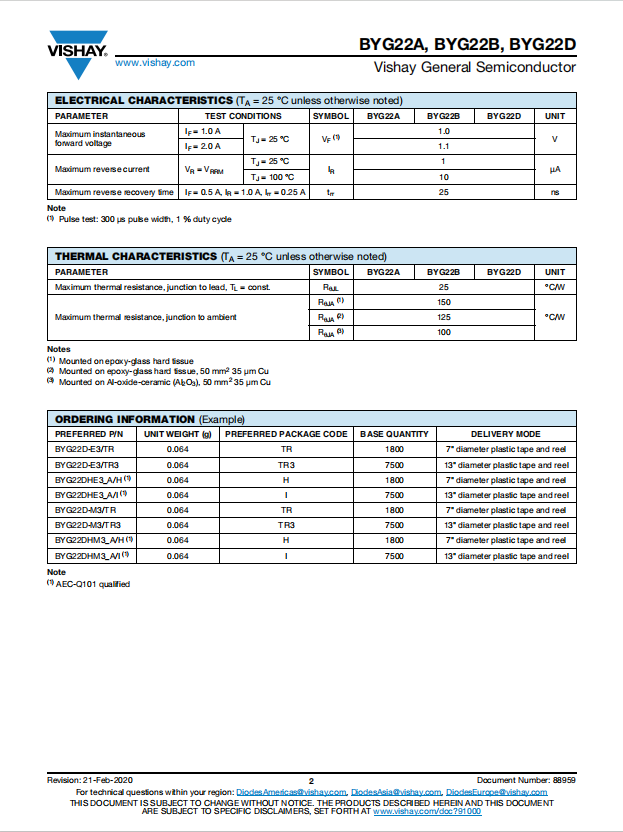

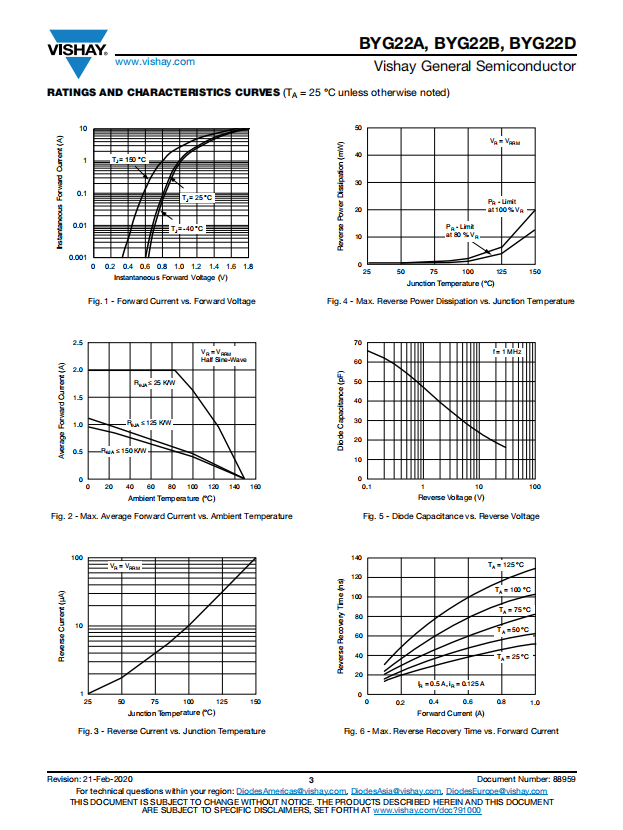

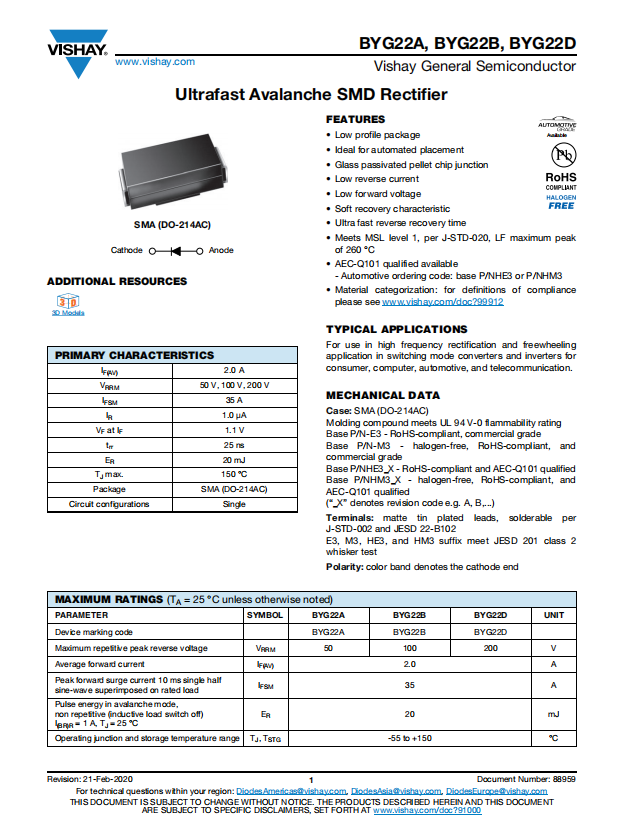

Product Data Book：

For more product information, please download the PDF

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
