Product Features
? Glass Passivated Die Construction
? 600W Peak Pulse Power Dissipation
? 5.0V- 200V Standoff Voltage
? Uni- and Bi-Directional Versions Available
? Excellent Clamping Capability
? Fast Response Time
? Plastic Case Material has UL Flammability Classification Rating 94V-O
? “-A” is an AEC-Q101 qualified device
? RoHS Compliant ? All SMC Parts are Traceable to the Wafer Lot
? Additional testing can be offered upon request
Product Mechanical Data
? Case: SMB Low Profile Molded Plastic
? Terminals: Solder Plated , Solderable per MIL-STD 750, Method 2026
? Polarity: Cathode Band or Cathode Notch
? Weight:0.093 grams(approx.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SMBJ28CA |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | SMC Diode Solutions |
| Series | SMBJ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 28V |
| Voltage - Breakdown (Min) | 31.1V |
| Voltage - Clamping (Max) @ Ipp | 45.4V |
| Current - Peak Pulse (10/1000碌s) | 13.2A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB (DO-214AA) |
| Base Product Number | SMBJ28 |

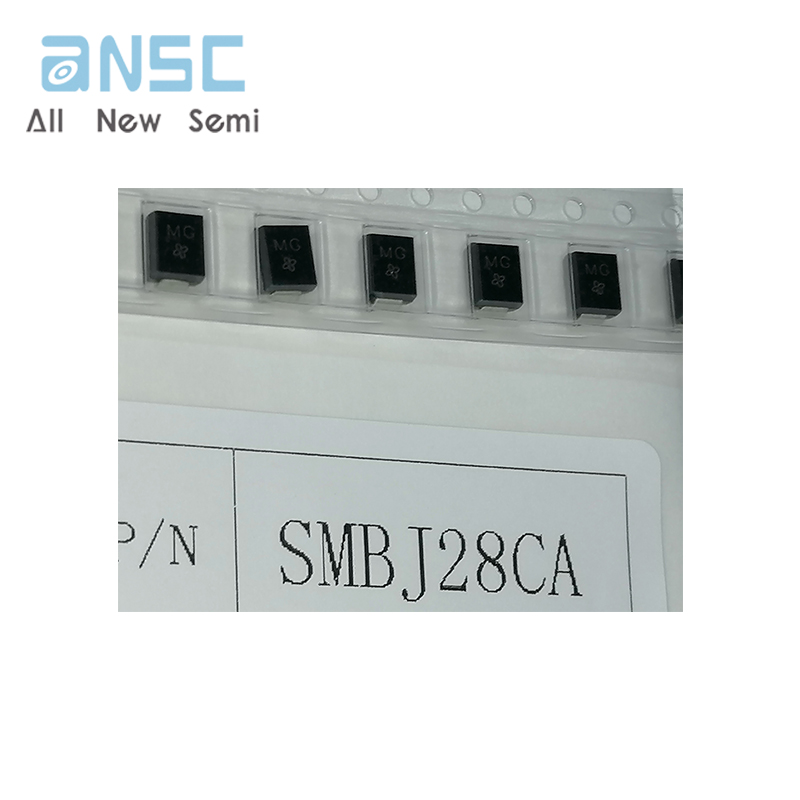

Actual product photos

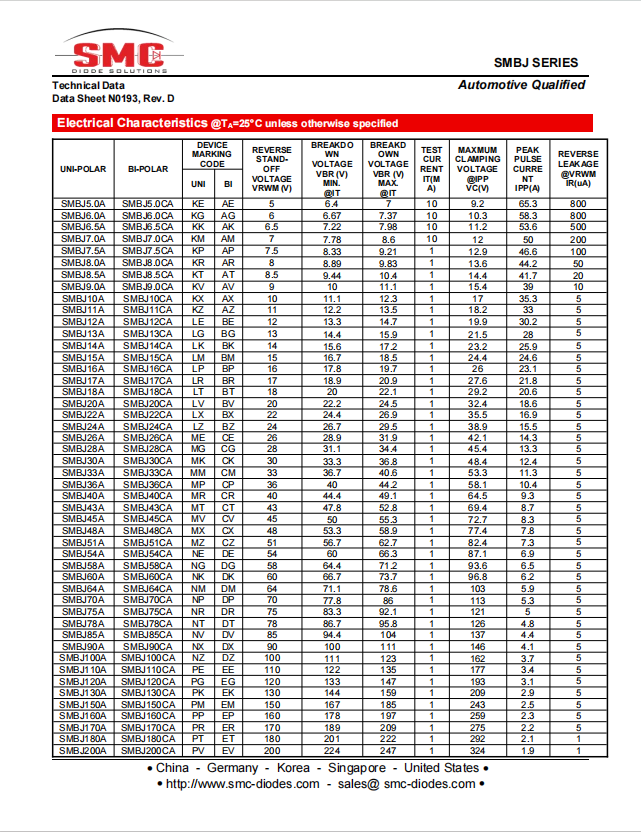

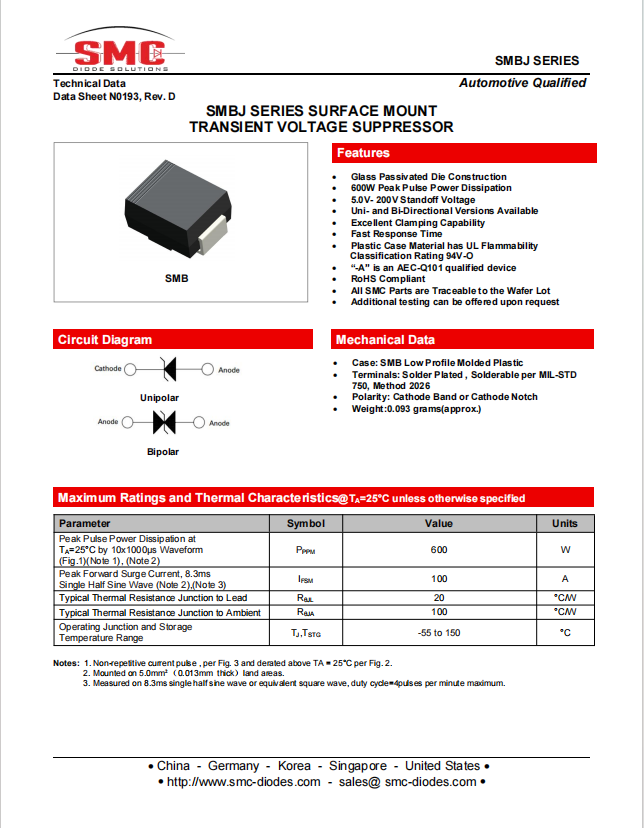

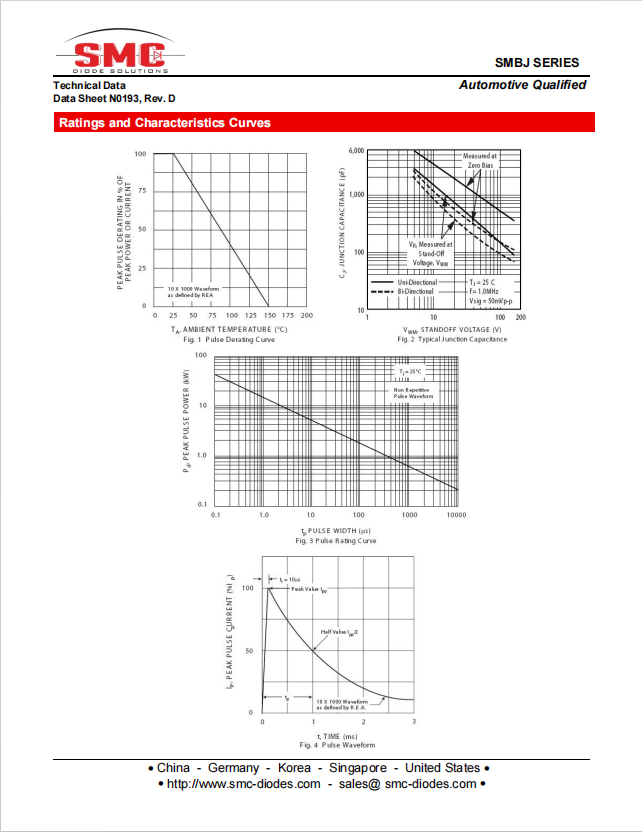

Product Data Book：
For more product information, please download the PDF
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
