Product Features
? High Current Capability (IO = 500mA)
? Low VF
? Totally Lead-Free Finish & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? Qualified to AEC-Q101 Standards for High Reliability
Product Mechanical Data
? Case: SOT23
? Case Material: Molded Plastic, “Green” Molding Compound.
? UL Flammability Classification Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020
? Terminals: Matte Tin Finish annealed over Alloy 42 leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208
? Weight: 0.0089 grams (approximate)
Product Applications
? DC - DC Converters
? Mobile Telecomms
? PCMIA
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ZHCS506TA |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Diodes Incorporated |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Current - Average Rectified (Io) | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 630 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 10 ns |
| Current - Reverse Leakage @ Vr | 40 μA @ 45 V |
| Capacitance @ Vr, F | 20pF @ 25V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Operating Temperature - Junction | 125°C (Max) |
| Base Product Number | ZHCS506 |

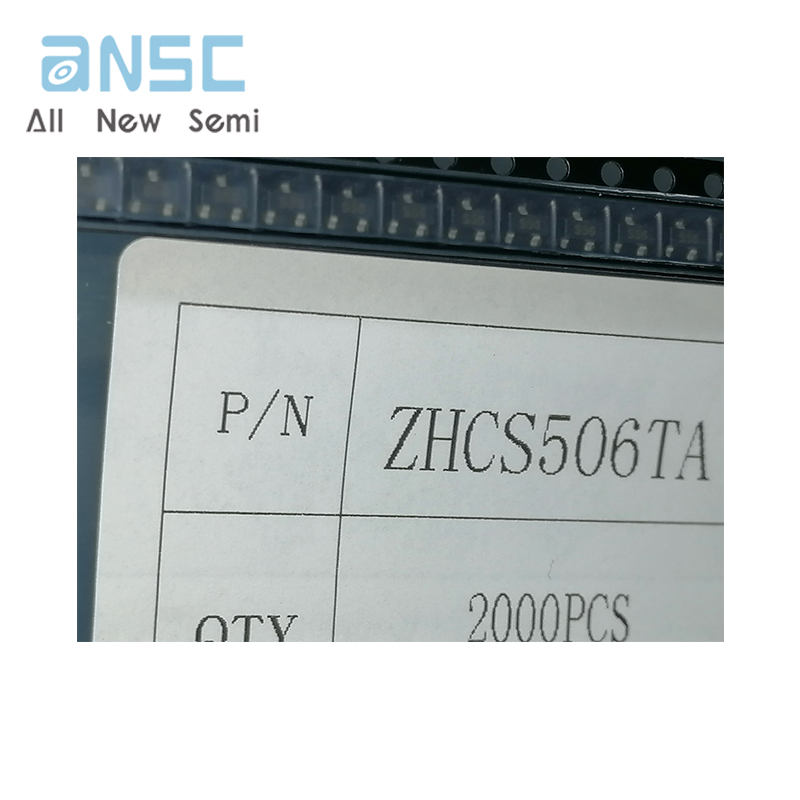

Actual product photos

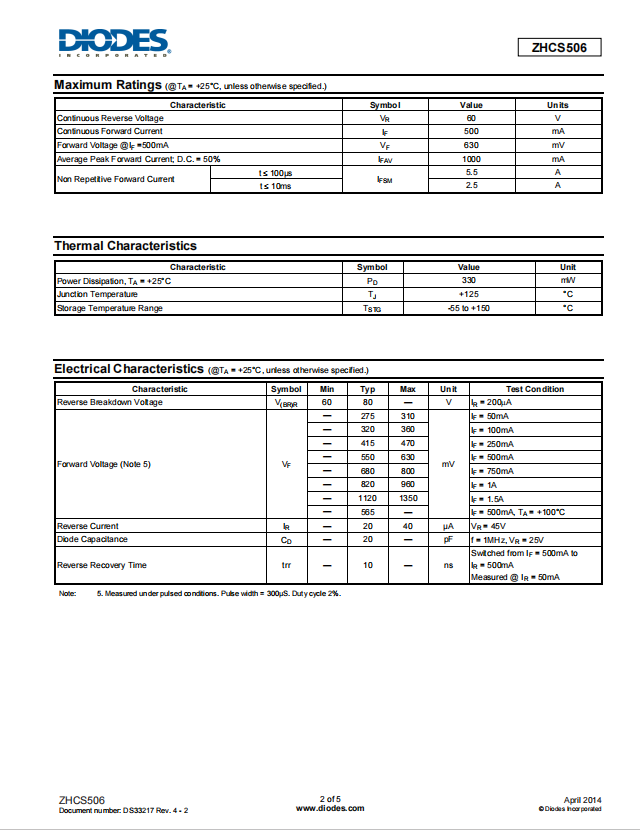

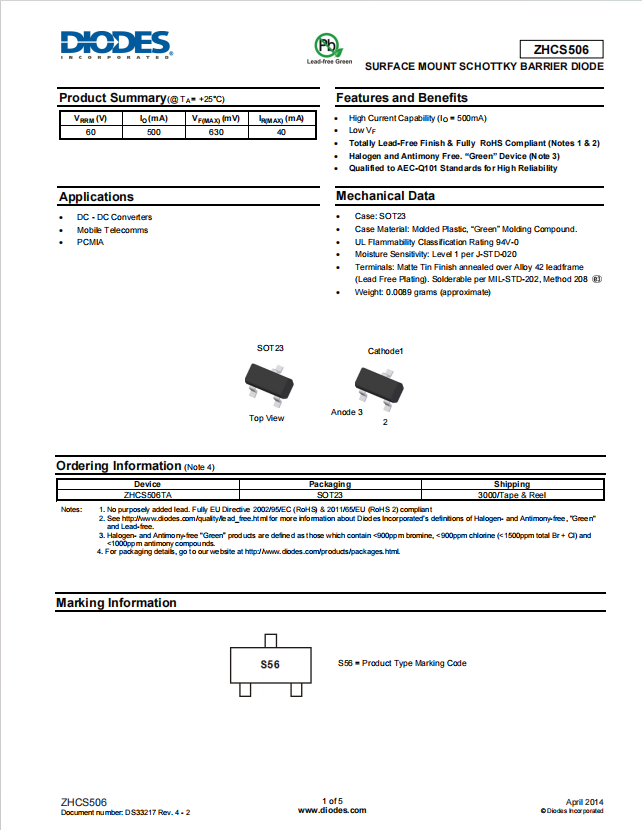

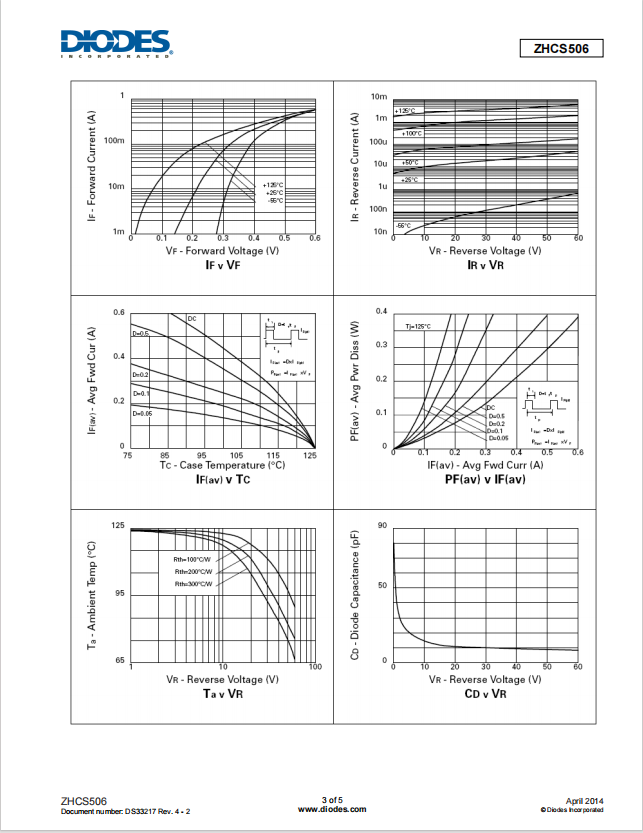

Product Data Book：
For more product information, please download the PDF
