Product Descriptions
■SERIES OVERVIEW
General type C series is a surface-mounted component, which multilayer dielectrics and inner electrodes are stacked alternately. The monolithic
structure ensures superior mechanical strength and high reliability. Also, outstanding frequency characteristics such as low ESR and low ESL are
provided owing to the simpler structure than other capacitors. The capacitance range is up to 100μF and the lineup has been expanding to a range of the film capacitor and electrolytic capacitor.
Product Features
? Superior mechanical strength and high reliability due to the monolithic structure
? Outstanding frequency characteristics such as low ESR and low ESL by the simple structure
? Low self-heating value and high resistance to ripple on account of the low ESR
? No polarity
Product Applications
? General electronic equipment
? Mobile devices
? Servers, PCs, tablets
? Power supply circuit
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-C2012X5R1A226K125AB |
| Category | Capacitors |
| Ceramic Capacitors | |
| Mfr | TDK Corporation |
| Series | C |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Not For New Designs |
| Capacitance | 22 μF |
| Tolerance | ±10% |
| Voltage - Rated | 10V |
| Temperature Coefficient | X5R |
| Operating Temperature | -55°C ~ 85°C |
| Features | Low ESL |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.057" (1.45mm) |
| Lead Spacing | - |
| Lead Style | - |

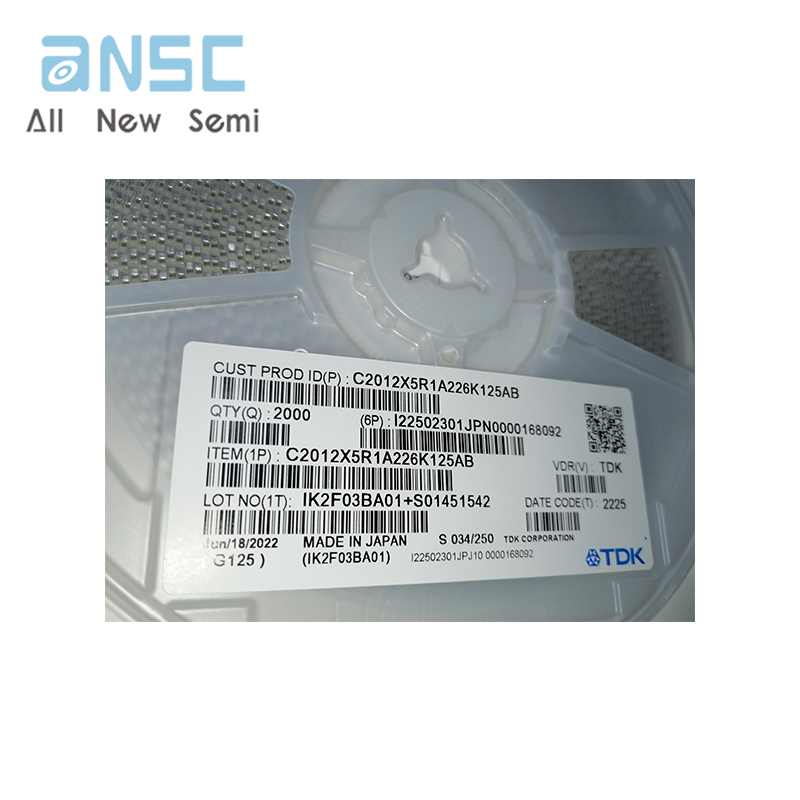

Actual product photos

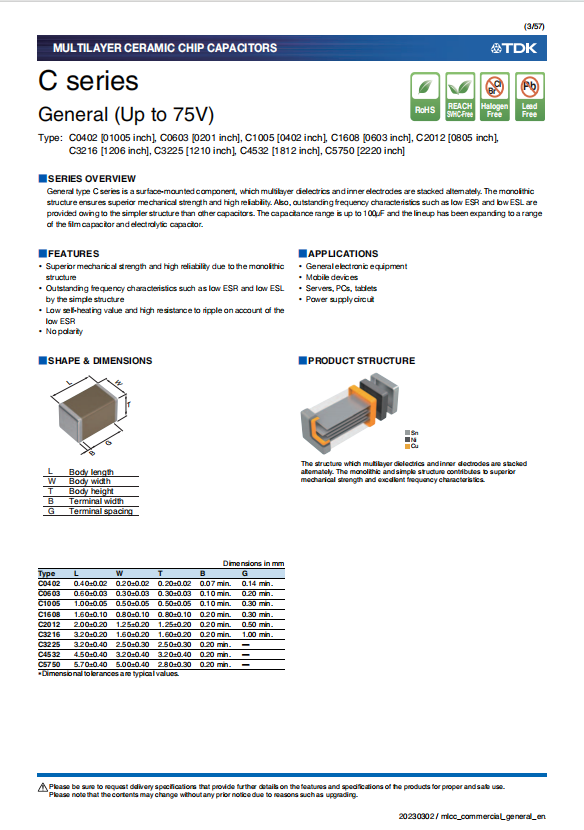

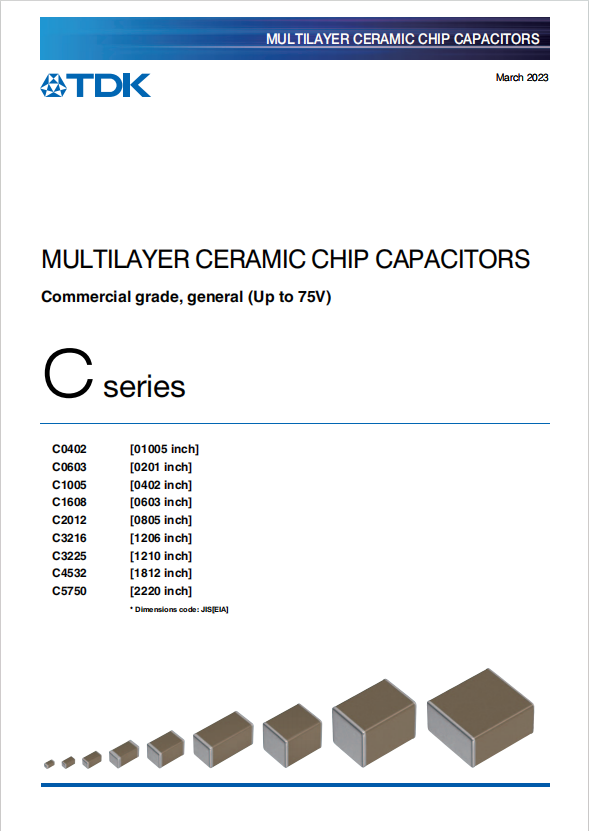

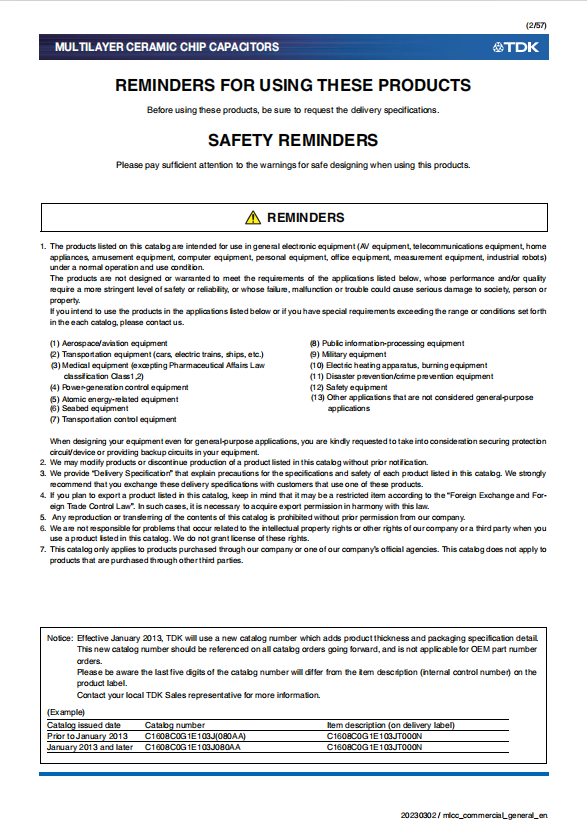

Product Data Book：
For more product information, please download the PDF
