Product APPLICATIONS
This specification is applied to Safety Standard Certified Lead Type Disc Ceramic Capacitors Type KH used for General Electric equipment.Type KH is Safety Standard Certified capacitors of Class X1,Y2. Do not use these products in any automotive power train or safety equipment including battery chargers for electric vehicles and plug-in hybrids.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DE2B3KY681KN2AM01F |
| Category | Capacitors |
| Ceramic Capacitors | |
| Mfr | Murata Electronics |
| Series | KY |
| Package | Cut Tape (CT) |
| Tape & Box (TB) | |
| Product Status | Obsolete |
| Capacitance | 680 pF |
| Tolerance | ±10% |
| Voltage - Rated | 250VAC |
| Temperature Coefficient | B |
| Operating Temperature | -40°C ~ 125°C |
| Features | Safety Series X1Y2 |
| Ratings | X1, Y2 |
| Applications | Safety |
| Failure Rate | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
| Lead Style | Straight |
| Base Product Number | DE2B3KY |

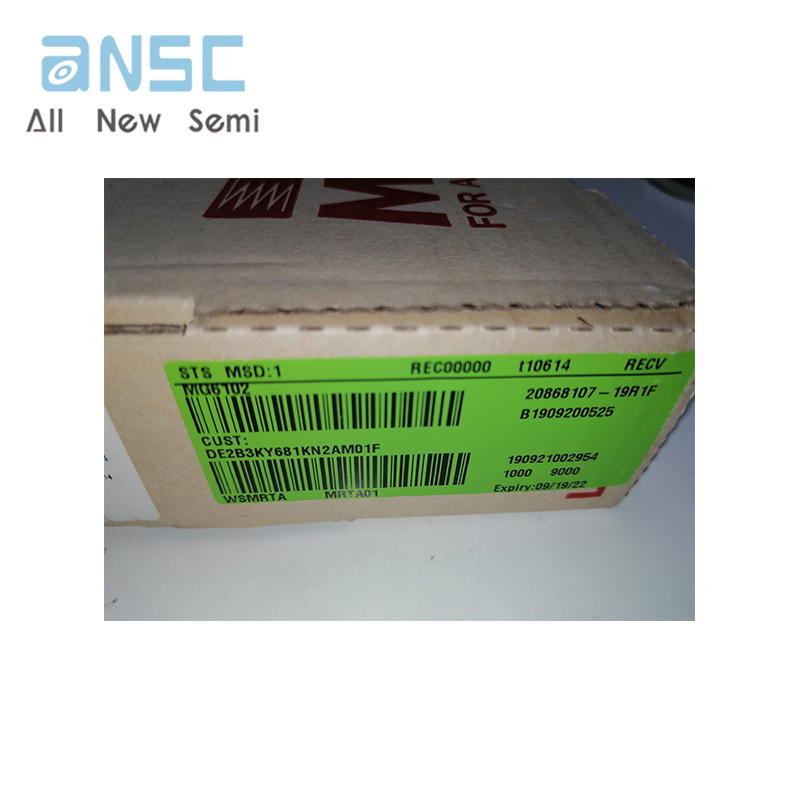

Actual product photos

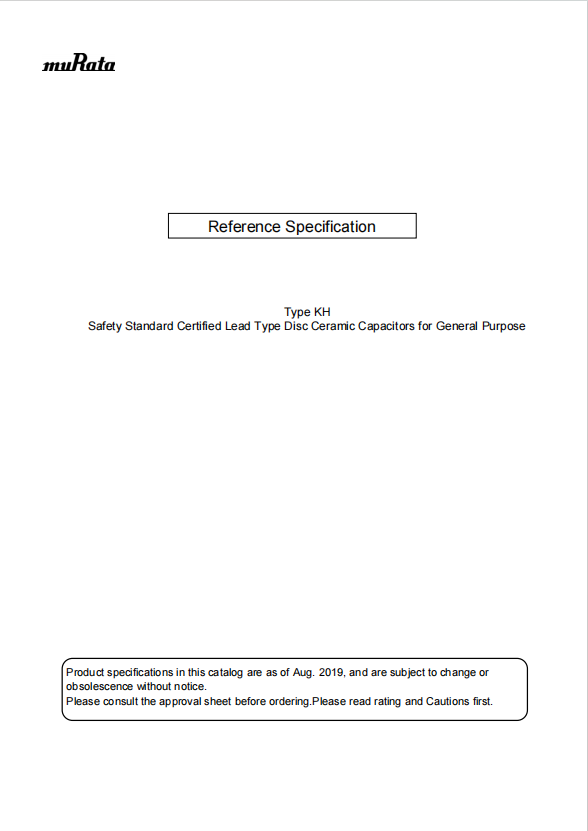

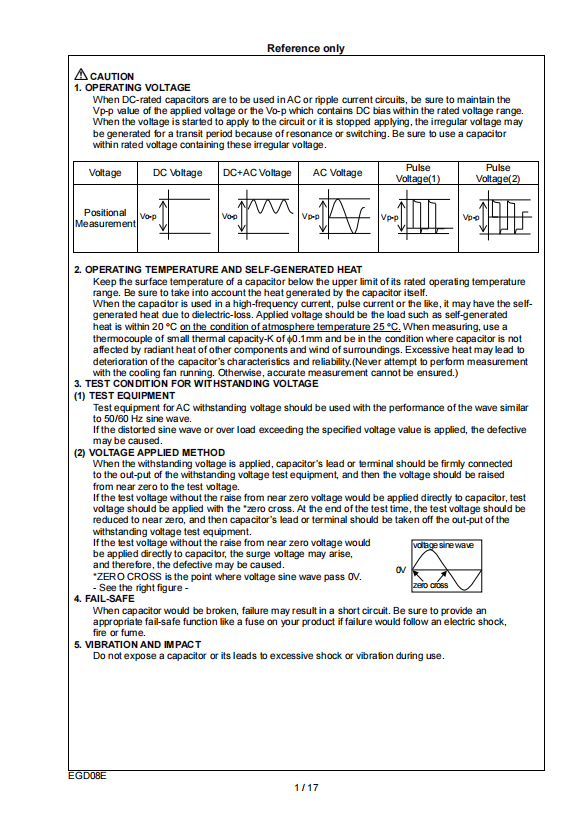

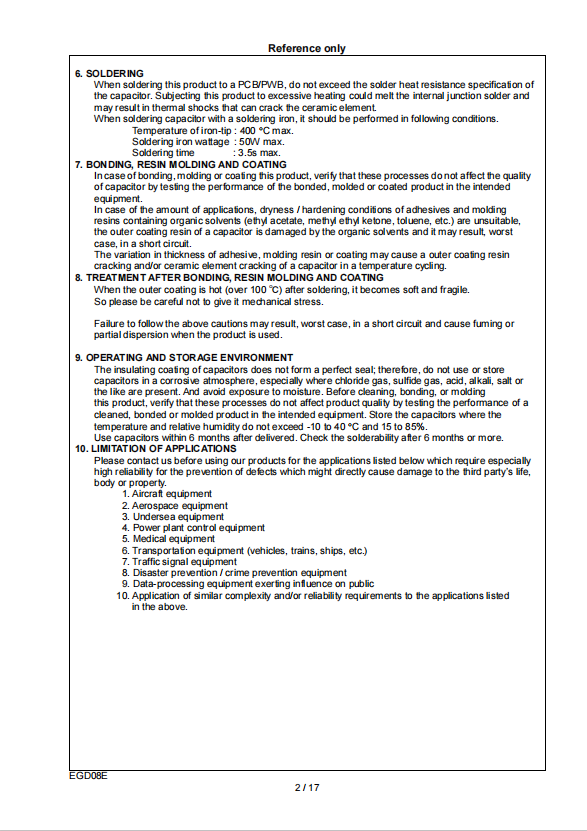

Product Data Book：
For more product information, please download the PDF
