Product Descriptions
Designer’s Kit C378 contains 3 of each 20% part
Core material Ferrite
Terminations RoHS compliant electroplated gold (<50 μin) over nickel
over phos bronze. Other terminations available at additional cost.
Weight 0.92– 1.23 g
Ambient temperature –40°C to +85°C with Irms current
Maximum part temperature +125°C (ambient + temp rise) Derating.
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Packaging 1000 per 13″ reel Plastic tape: 24 mm wide,
0.33 mm thick, 12 mm pocket spacing, 5.8 mm pocket depth
PCB washing Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash.
Product Features
? High energy storage and very low resistance
? High inductance values are perfect for EL driver applications
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DO3316P-224MLD |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Coilcraft |
| Series | DO3316 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Drum Core |
| Material - Core | Ferrite |
| Inductance | 220 μH |
| Tolerance | ±20% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | 800mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 610mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.510" L x 0.370" W (12.95mm x 9.40mm) |
| Height - Seated (Max) | 0.205" (5.21mm) |

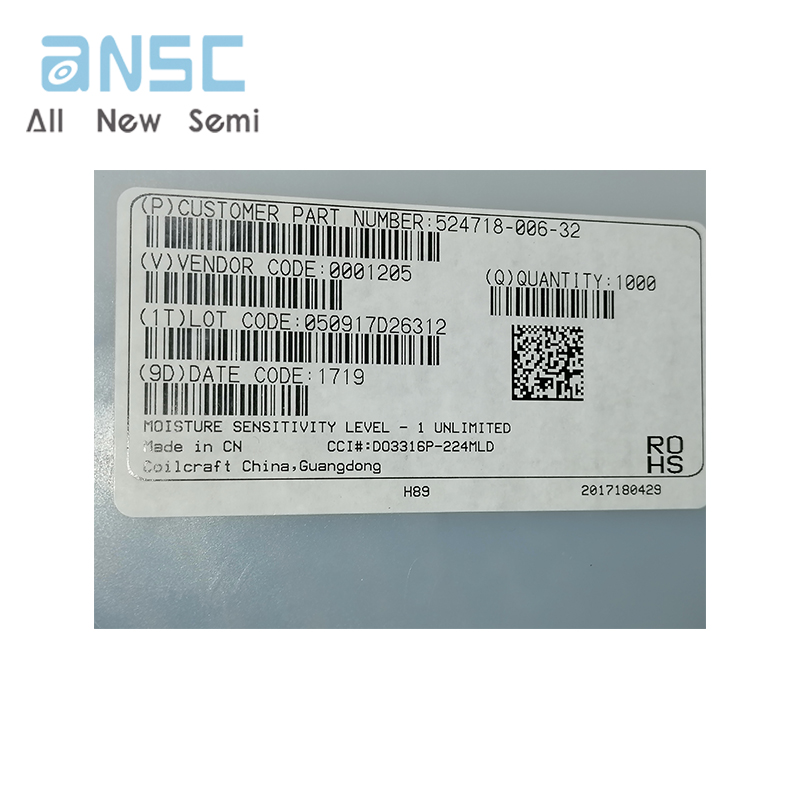

Actual product photos

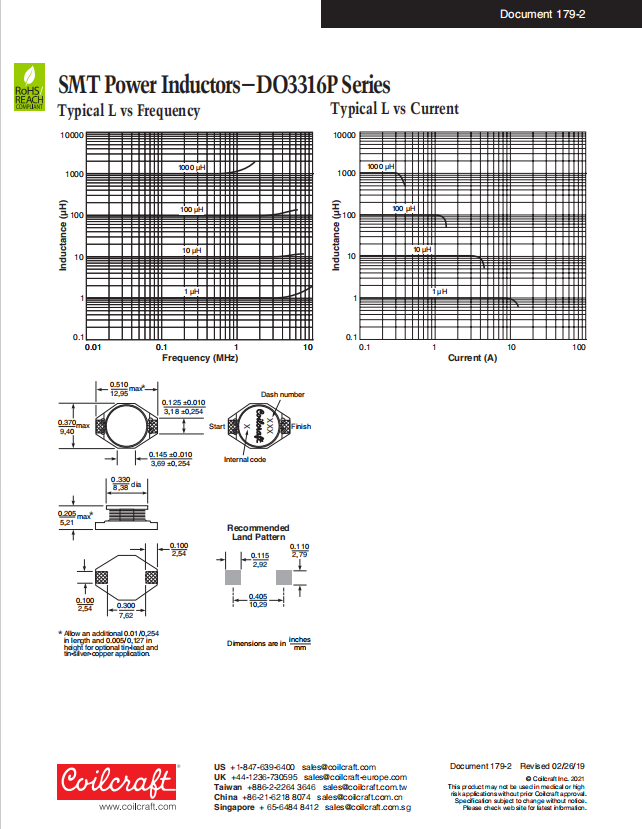

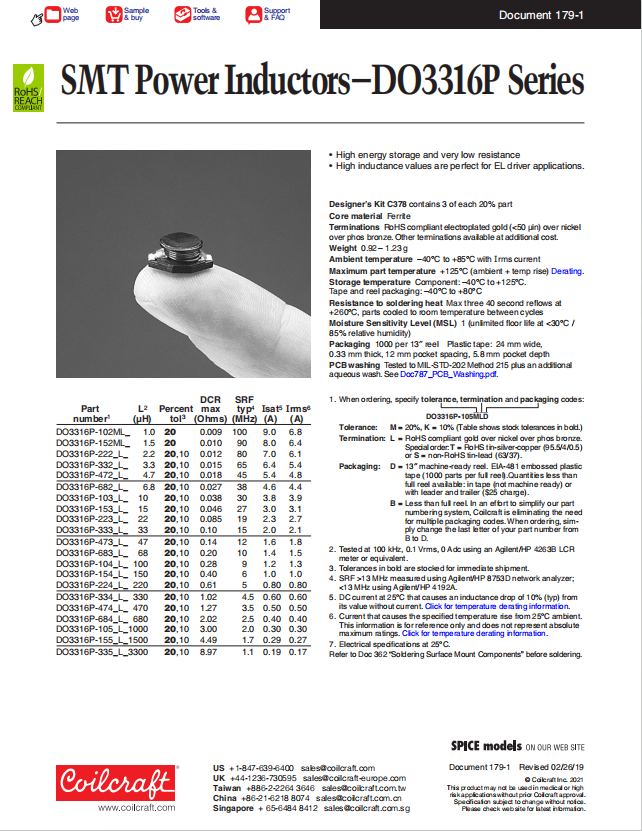

Product Data Book：
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
