Product FEATURES
? Resin mold type wound inductor for decoupling circuits.
? E-12 Series, wide lineup compatible with K (±10%) tolerance allows for various usages.
Product APPLICATION
? Smart meters, AV equipment, xDSL, electronic devices for communications
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NLC565050T-102K-PF |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | TDK Corporation |
| Series | NLC |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 85 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 15Ohm Max |
| Q @ Freq | 20 @ 252kHz |
| Frequency - Self Resonant | 1.8MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 252 kHz |
| Mounting Type | Surface Mount |
| Package / Case | 2220 (5650 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.220" L x 0.197" W (5.60mm x 5.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
Actual product photos

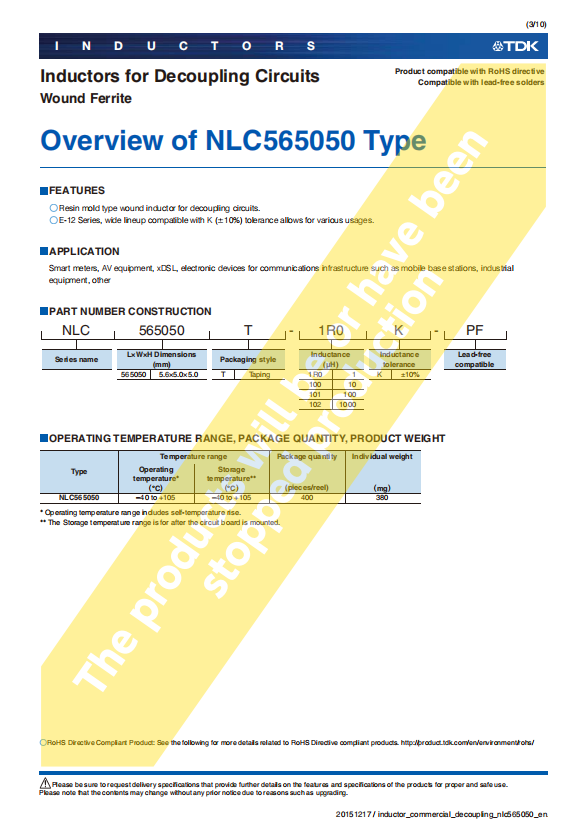

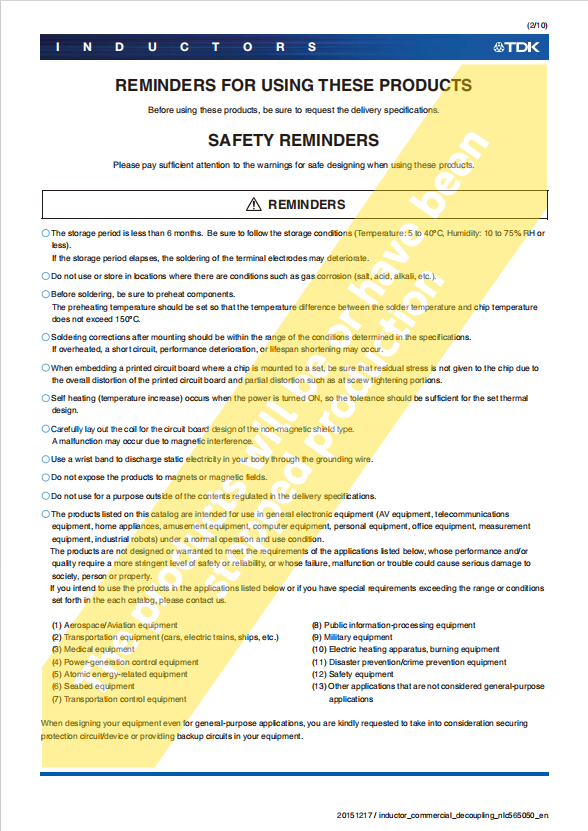

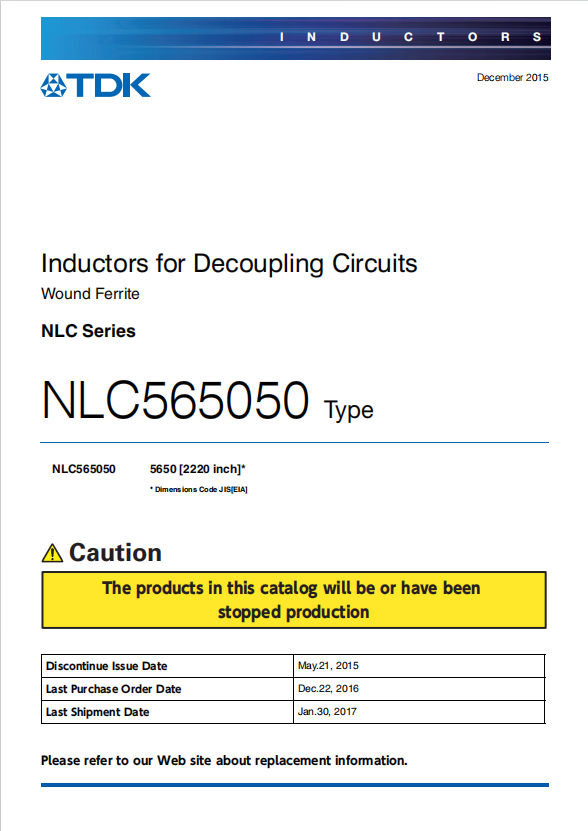

Product Data Book：
For more product information, please download the PDF
