Product Descriptions
This Broadcom? family of T-13/4 nondiffused LED lamps is specially designed for applications requiring higher on-axis intensity than is achievable with a standard lamp. The light generated is focused to a narrow beam to achieve this effect.
Product Features
? High intensity
? AlInGaP LED technology
? Choice of three bright colors:
– Red
– Yellow
– Green
? Popular T-13/4 diameter package
? Selected minimum intensities
? Narrow viewing angle
? General-purpose leads
? Reliable and rugged
? Available on tape and reel
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-HLMP-3316 |
| Category | Optoelectronics |
| LED Indication - Discrete | |
| Mfr | Broadcom Limited |
| Series | - |
| Package | Bulk |
| Product Status | Active |
| Color | Red |
| Configuration | Standard |
| Lens Color | Red |
| Lens Transparency | Clear |
| Millicandela Rating | 60mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Current - Test | 10mA |
| Viewing Angle | 35° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 626nm |
| Wavelength - Peak | 635nm |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | T-1 3/4 |
| Size / Dimension | - |
| Height (Max) | 9.19mm |
| Base Product Number | HLMP-3316 |

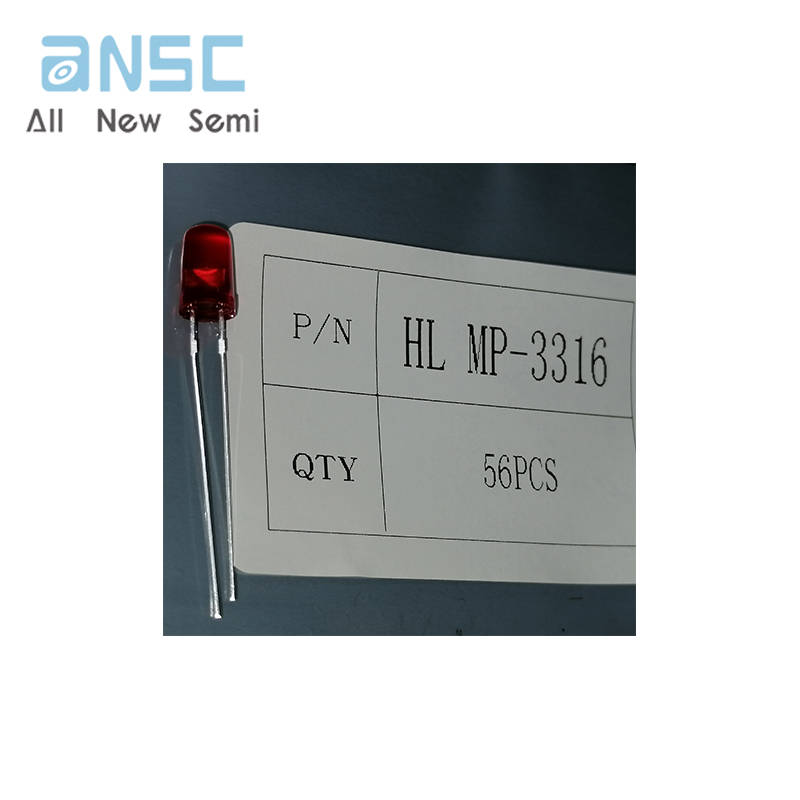

Actual product photos

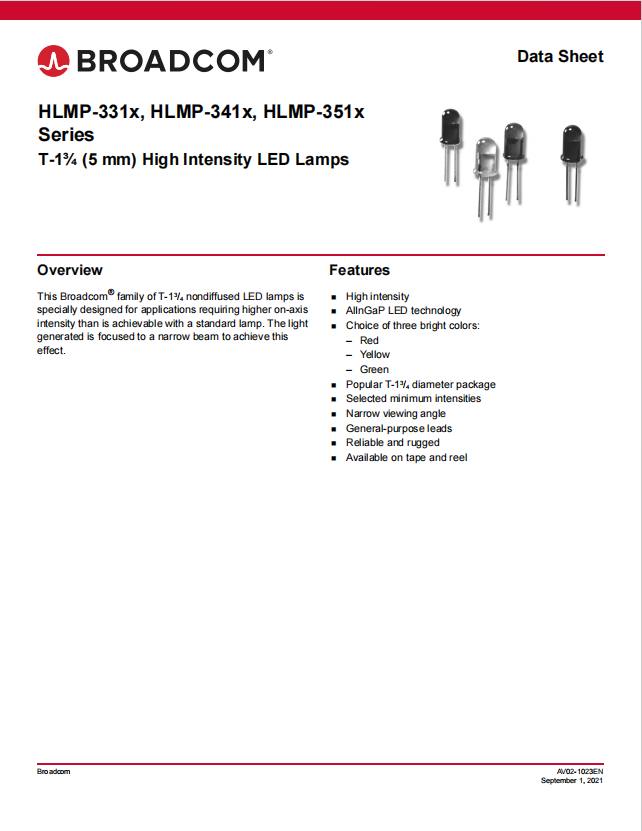

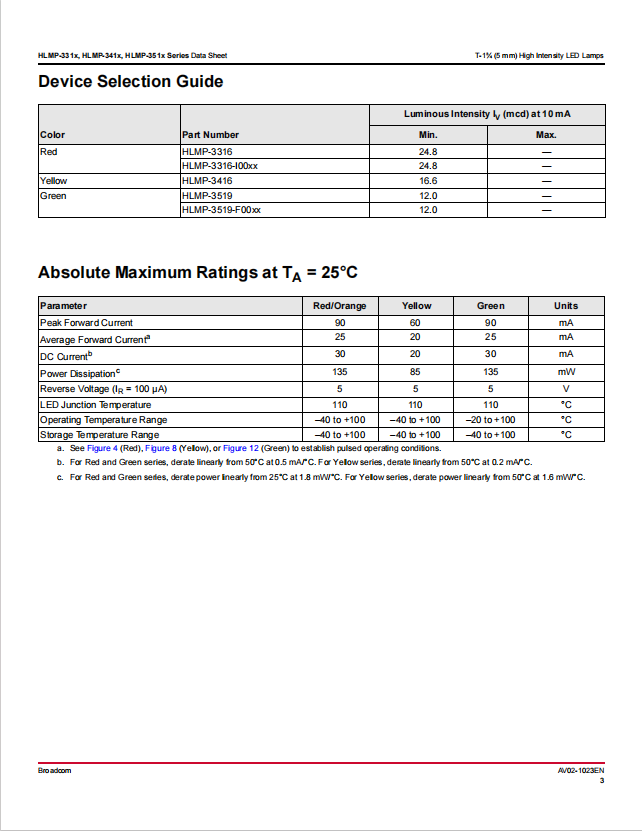

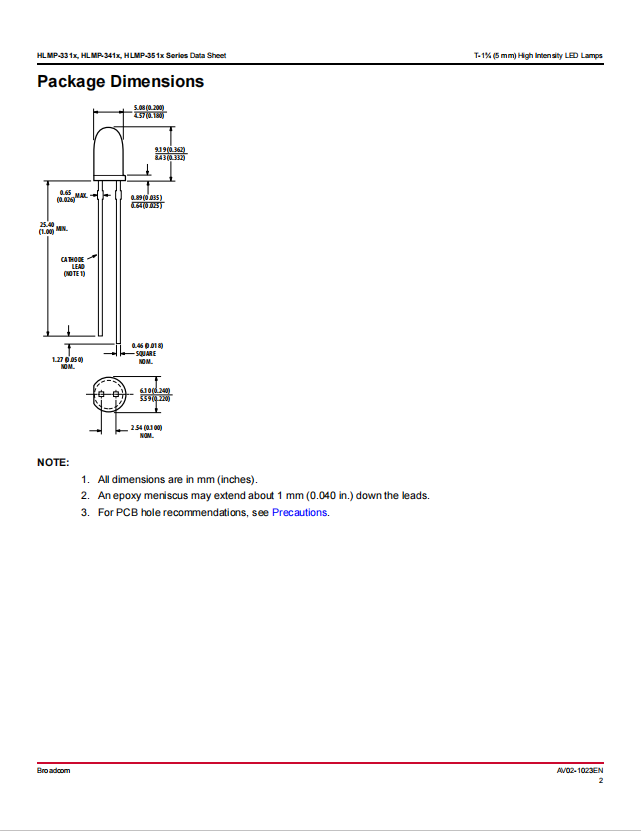

Product Data Book：
For more product information, please download the PDF
