Product Details
Meets IEEE 802.3 and ANSI X3.263 standards, including 350 μH OCL with 8 mA bias
Designed for reflow soldering at temperatures up to 235oC
Compact footprint for use in the most space restrictive applications
Product Description
| Type | Description |
| ANSC PART# | ANSC - HX1198FNL |
| Category | Transformers |
| Pulse Transformers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Bulk |
| Part Status | Active |
| Transformer Type | LAN 10/100 Base-T |
| Inductance | 350μH |
| ET (Volt-Time) | - |

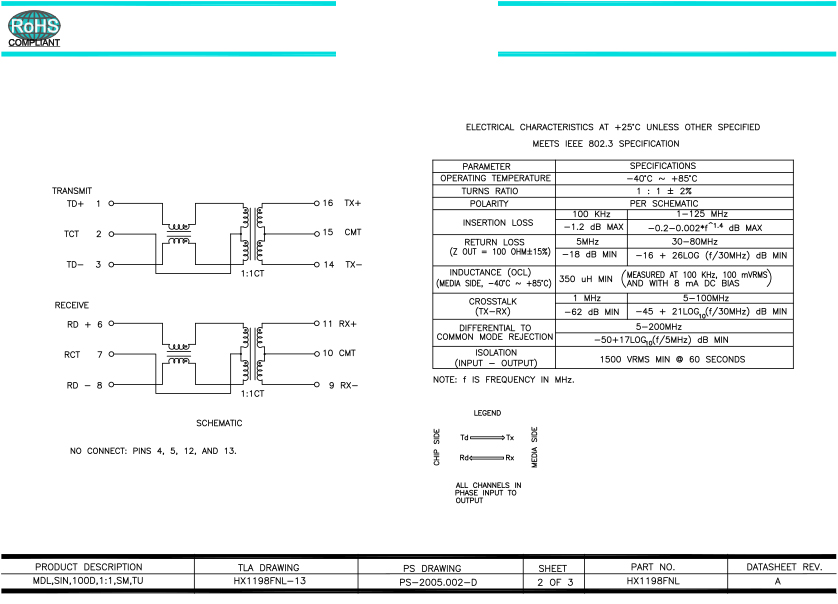

| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver |
| Mounting Type | Surface Mount |

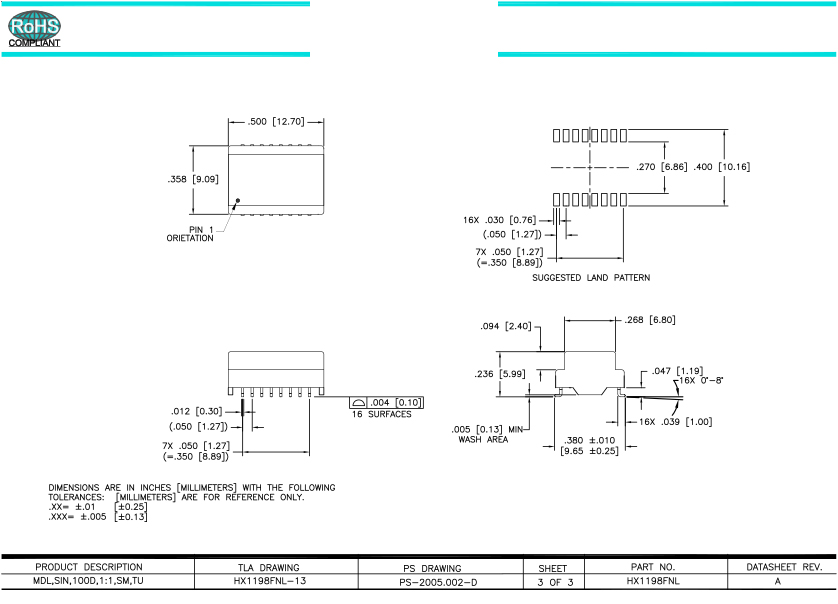

| Size / Dimension | 0.500" L x 0.358" W (12.70mm x 9.09mm) |
| Height - Seated (Max) | 0.236" (5.99mm) |
| Operating Temperature |
-40°C ~ 85°C |
| Weight | - |
Product Photos

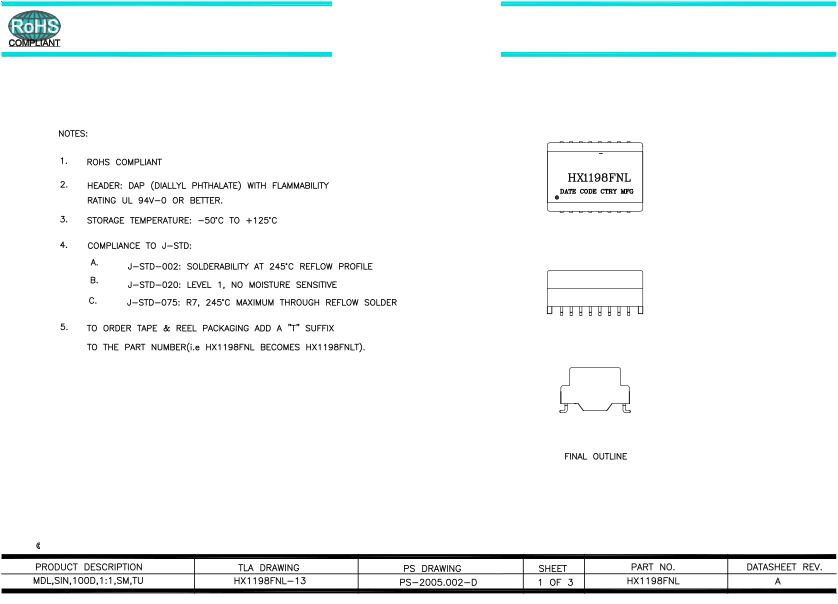

Product datasheet
