Product Details
|
Brief Description: The AOD423 is a P-Channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) manufactured by Alpha & Omega Semiconductor Inc. It is a surface-mount device with a TO-252-3 package, also known as D-Pak or SC-63. Features: Continuous Drain Current (ID): 70A Current - Continuous Drain (Id) @ 25°C: 15A, 70A @ 25°C Drain to Source Voltage (Vdss): 30V Drive Voltage (Max Rds On, Min Rds On): 10V, 20V FET Type: P-Channel Gate Charge (Qg) (Max) @ Vgs: 65nC @ 10V Input Capacitance: 2.76nF Input Capacitance (Ciss) (Max) @ Vds: 2760pF @ 15V Maximum Operating Temperature: 175°C Minimum Operating Temperature: -55°C Power Dissipation (Max): 2.5W @ 25°C, 90W @ 175°C Rds On (Max) @ Id, Vgs: 6.2mOhm @ 20A, 20V Rds On Max: 6.2mΩ Vgs (Max): ±25V Vgs(th) (Max) @ Id: 3.5V @ 250μA Application Grade: The AOD423 is designed for high-power, high-current applications, making it suitable for use in power supplies, motor drives, and other high-power electronic systems. Applications: Power supplies Motor drives High-power electronic systems Industrial control systems Automotive applications Renewable energy systems Note: The AOD423 is not recommended for new designs due to its age and availability. |
Product Description
| Type | Description |
| ANSC PART# | ANSC-AOD423 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Not For New Designs |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
|
Current - Continuous Drain (Id) @ 25°C |
15A (Ta), 70A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V, 20V |
| Rds On (Max) @ Id, Vgs | 6.2mOhm @ 20A, 20V |
| Vgs(th) (Max) @ Id | 3.5V @ 250μA |
| Gate Charge (Qg) (Max) @ Vgs | 65 nC @ 10 V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 2760 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 90W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252 (DPAK) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | AOD42 |

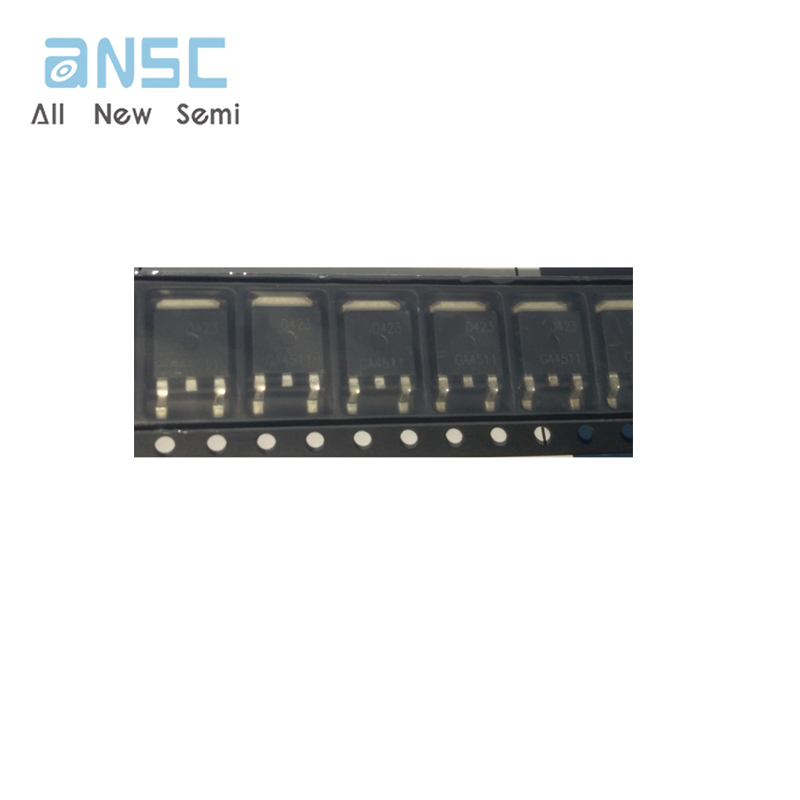

Product Photos

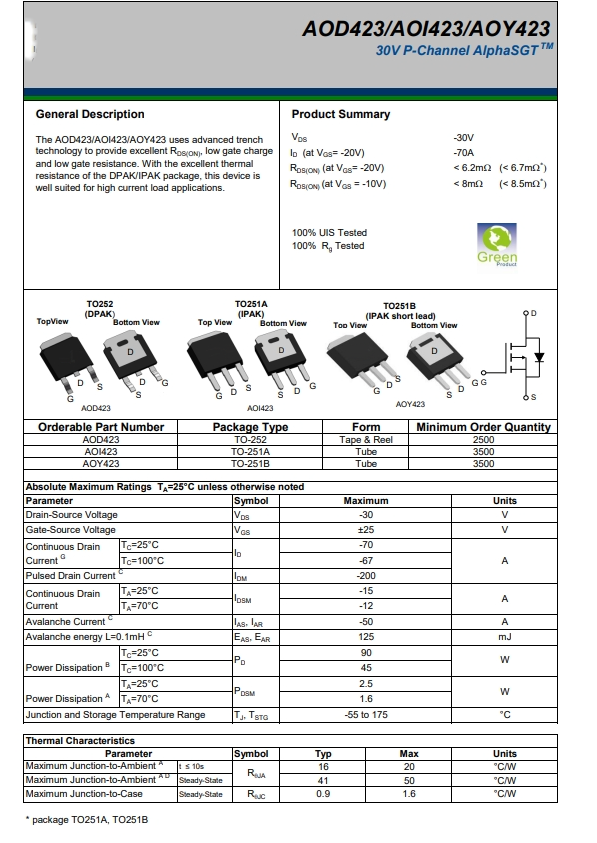

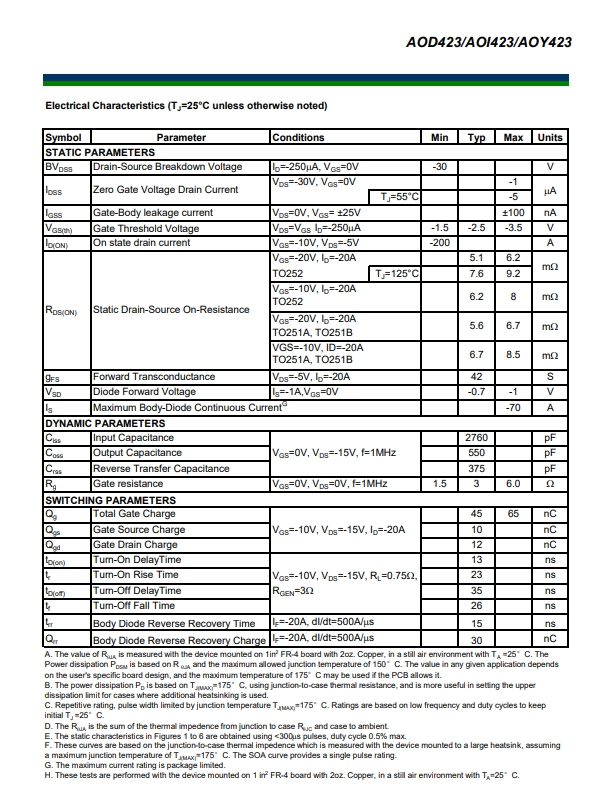

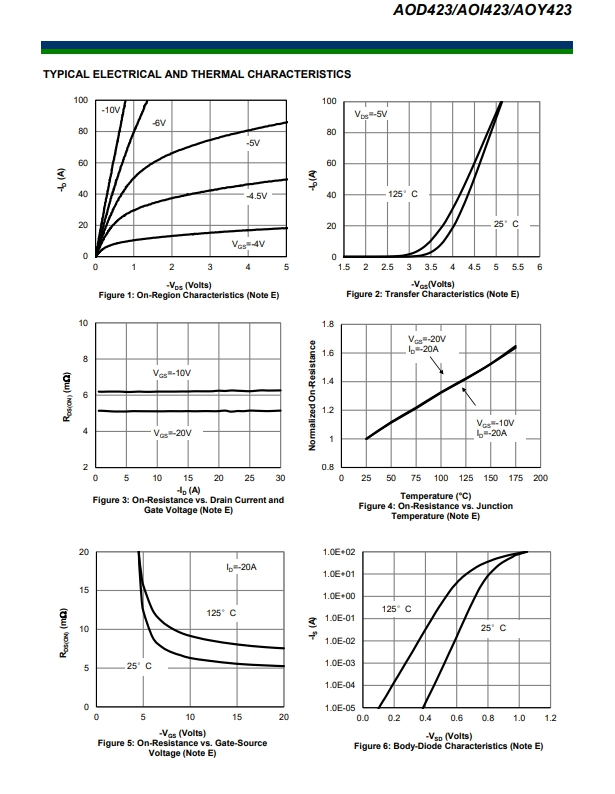

Product datasheet
