Product DESCRIPTIONS
? The Super Bright Red source color devices are made with Gallium Aluminum Arsenide Red Light Emitting Diode
? Electrostatic discharge and power surge could damage the LEDs
? It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs
? All devices, equipments and machineries must be electrically grounded
Product Features
? 0.56 inch digit height
? Low current operation
? Excellent character appearance
? Easy mounting on P.C. boards or sockets
? Mechanically rugged
? Standard: gray face, white segment
? RoHS compliant
Product APPLICATIONS
? Home and smart appliances
? Display time and digital combination
? Industrial and instrumental applications
? Numeric status
Product ATTENTION
Observe precautions for handling
electrostatic discharge sensitive devices
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SC56-21SRWA |
| Category | Optoelectronics |
| LED Character and Numeric | |
| Mfr | Kingbright |
| Series | - |
| Package | Tube |
| Product Status | Obsolete |
| Number of Characters | 1 |
| Size / Dimension | 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Display Type | 7-Segment |
| Common Pin | Common Cathode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Current - Test | 20mA |
| Millicandela Rating | 34mcd |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 75mW |
| Package / Case | 10-DIP (0.600", 15.24mm) |
| Base Product Number | SC56-21 |
Actual product photos

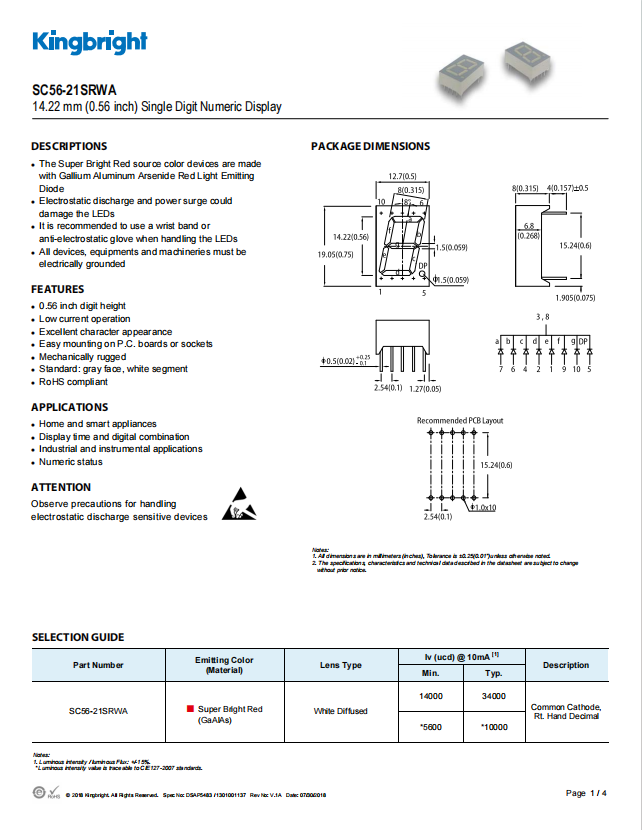

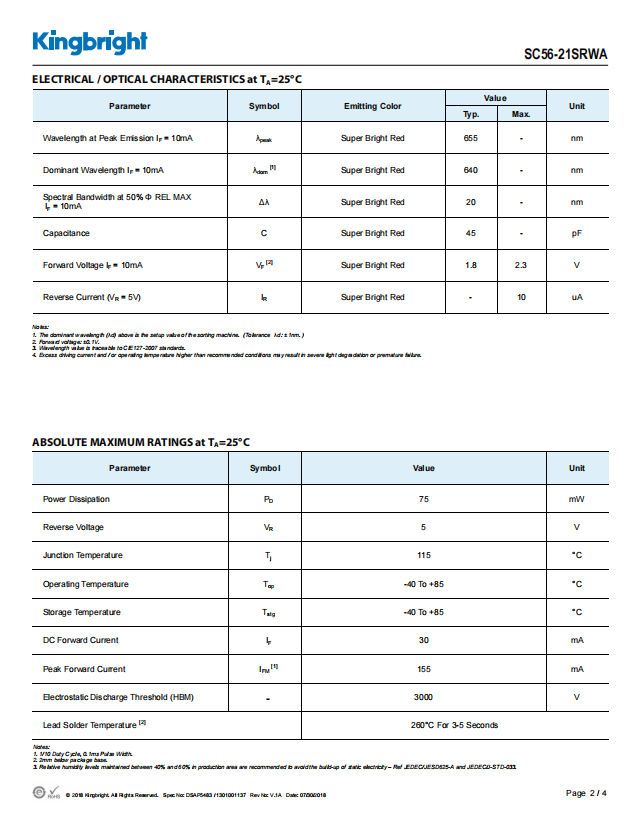

Product Data Book：
For more product information, please download the PDF
