Product Descriptions
This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base?emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space.
Product Features
? Simplifies Circuit Design
? Reduces Board Space
? Reduces Component Count
? S and NSV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC?Q101
Qualified and PPAP Capable
? These Devices are Pb?Free, Halogen Free/BFR Free and are RoHS
Compliant
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MMUN2233LT1G |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single, Pre-Biased Bipolar Transistors | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Transistor Type | NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Resistor - Base (R1) | 4.7 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300μA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| Power - Max | 246 mW |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | MMUN2233 |

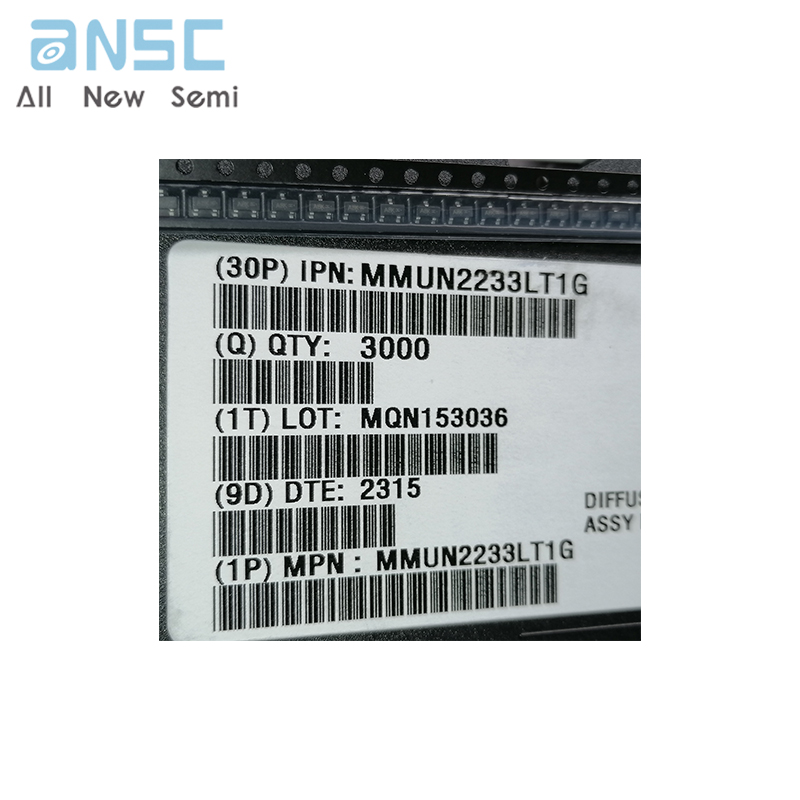

Actual product photos

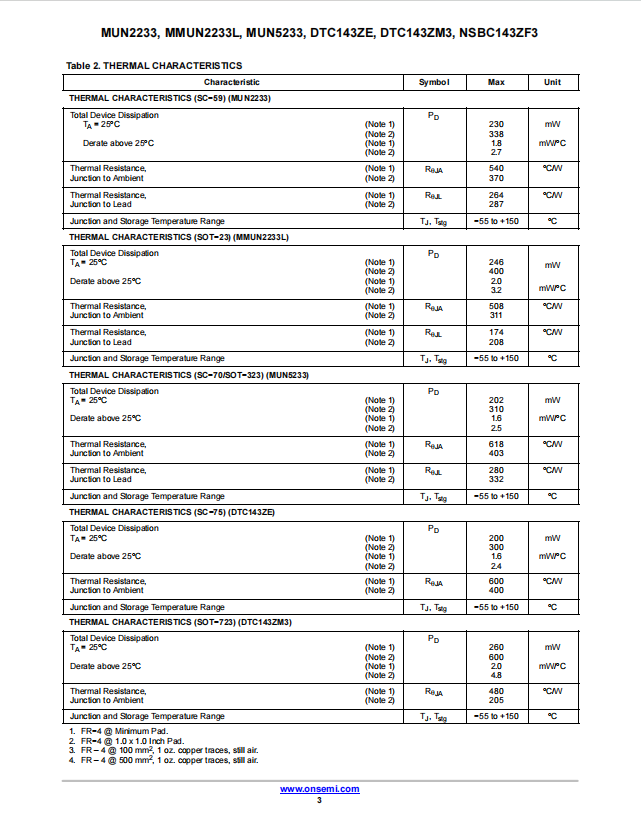

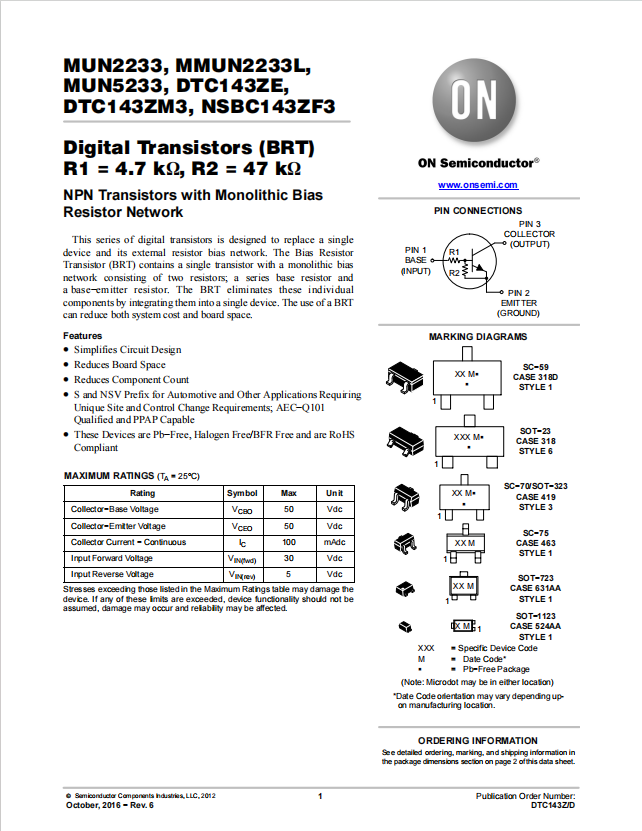

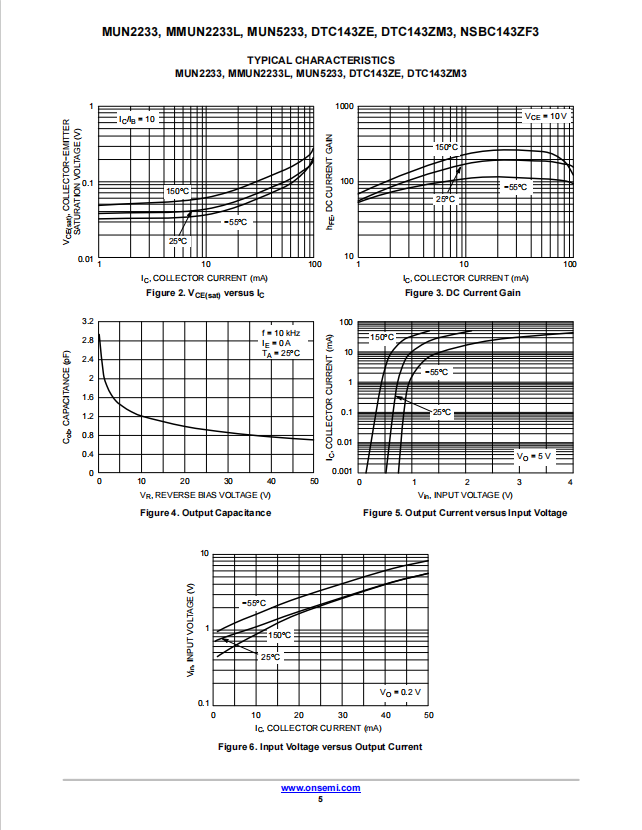

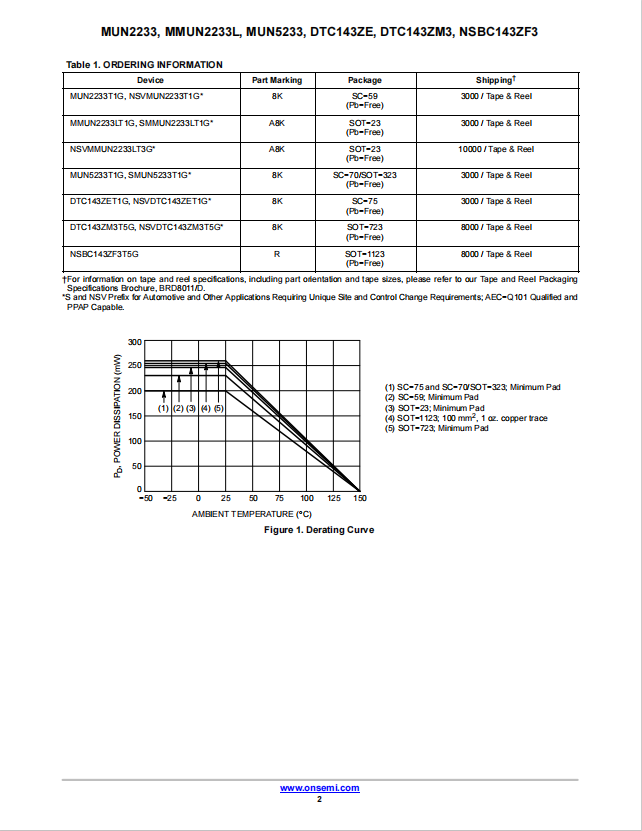

Product Data Book：
