Product Features
? Reduced board space, ideal for high-density mounting (45%. (6.5 mm (W) × 17.5 mm (L) × 12.5 mm (H))
? Small, yet switches 5 A at 250 VAC/30 VDC.
? Allows 300,000 operations with a 2A load at 250 VAC or 30 VDC.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-G6D-1A-ASI DC24 |
| Category | Relays |
| Power Relays, Over 2 Amps | |
| Mfr | Omron Electronics Inc-EMC Div |
| Series | G6D-ASI |
| Package | Bulk |
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 250VAC, 30VDC - Max |
| Coil Current | 8.3 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material | Silver Alloy |
| Relay Type | General Purpose |
| Coil Resistance | 2.88 kOhms |
| Base Product Number | G6D-1A |

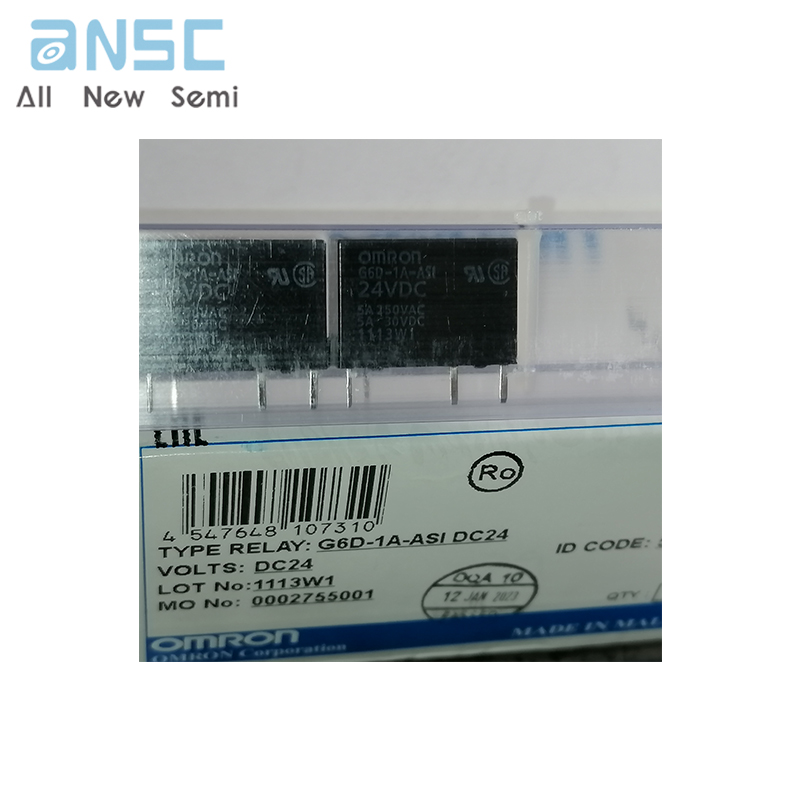

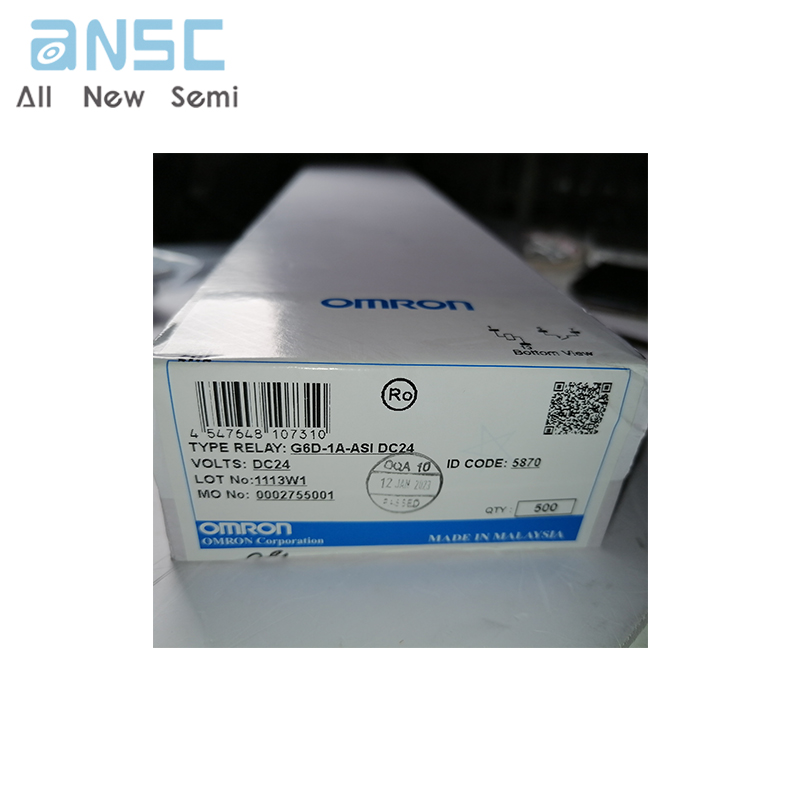

Actual product photos

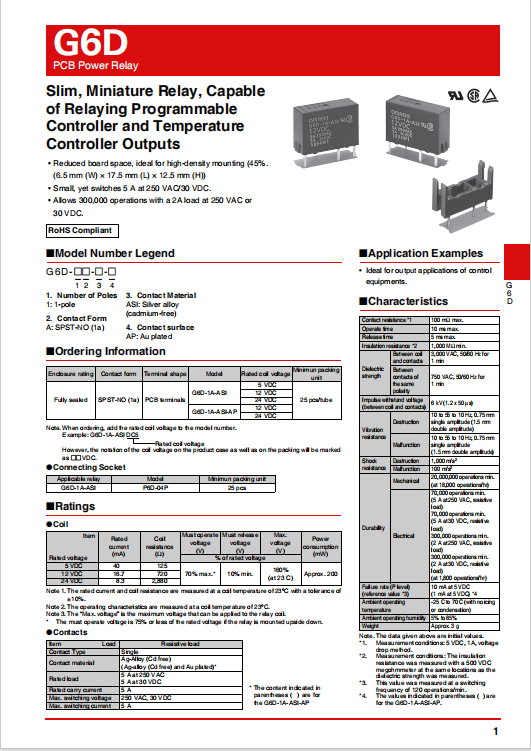

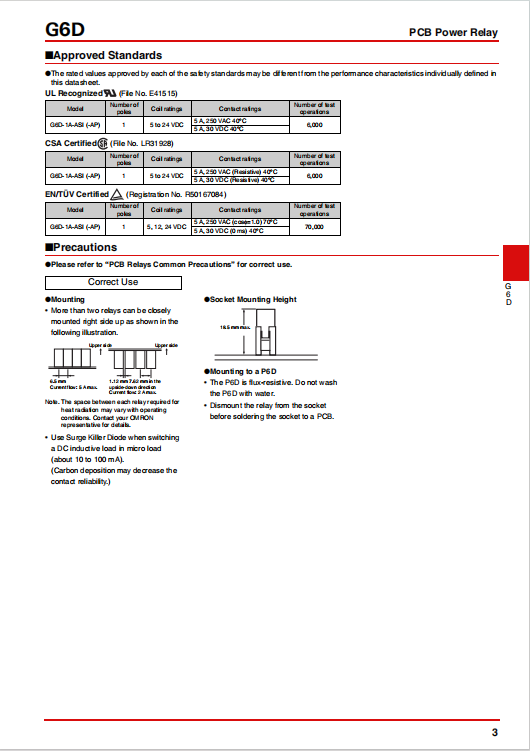

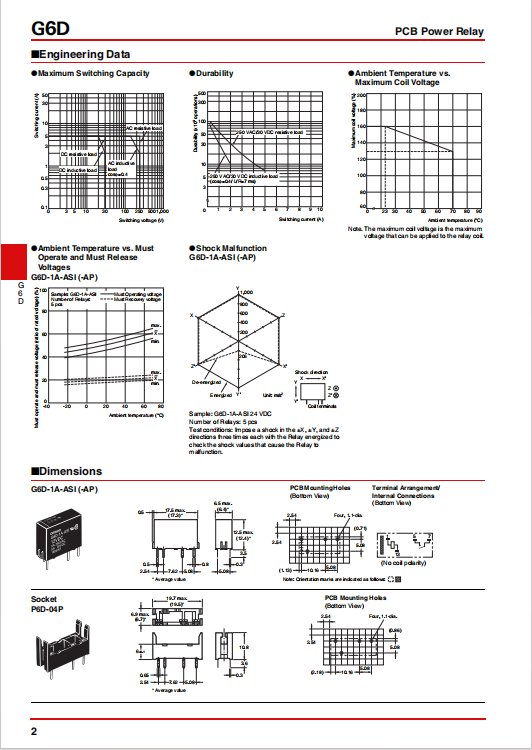

Product Data Book：
For more product information, please download the PDF
