Product Features
? Negligible switching losses
? Low forward voltage drop for higher efficiency and extended battery life
? Low thermal resistance
? Surface mount miniature package
? Avalanche capability specified
? ECOPACK2 compliant
Product Description
This 150 V power Schottky rectifier is ideal for switch mode power supplies on up to 24 V rails and high frequency converters. Packaged in SMA, SMA Flat Notch and axial, the STPS2150 is optimized for use in consumer and computer applications where low drop forward voltage is required to reduce power dissipation.
Product Applications
? Switching diode
? SMPS
? DC/DC converter
? Telecom power
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-STPS2150A-TR |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Current - Average Rectified (Io) | 2A |
| Voltage - Forward (Vf) (Max) @ If | 820 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1.5 μA @ 150 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA (DO-214AC) |
| Operating Temperature - Junction | 175°C (Max) |
| Base Product Number | STPS2150 |

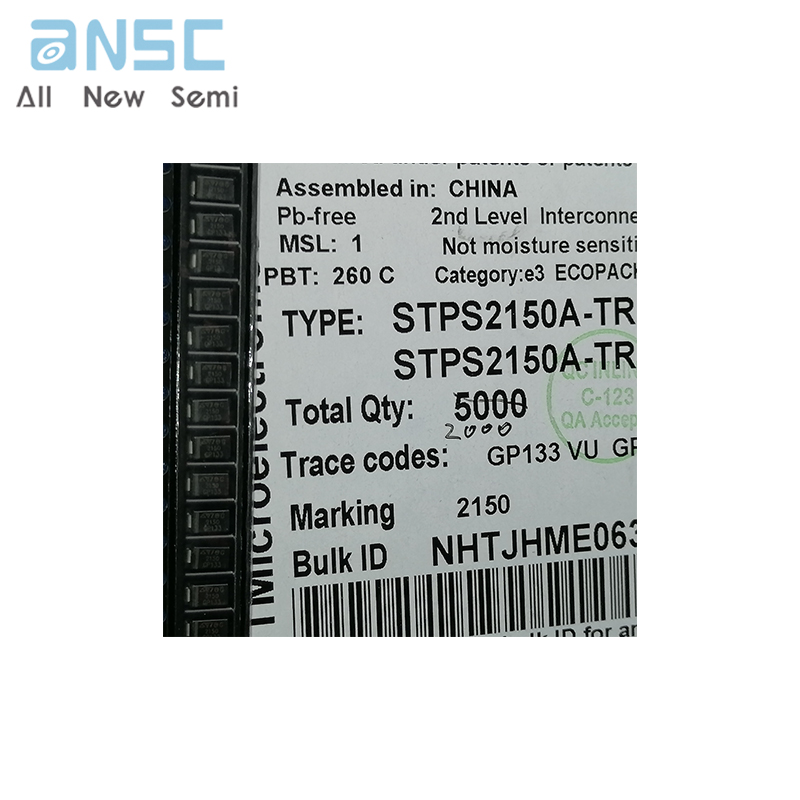

Actual product photos

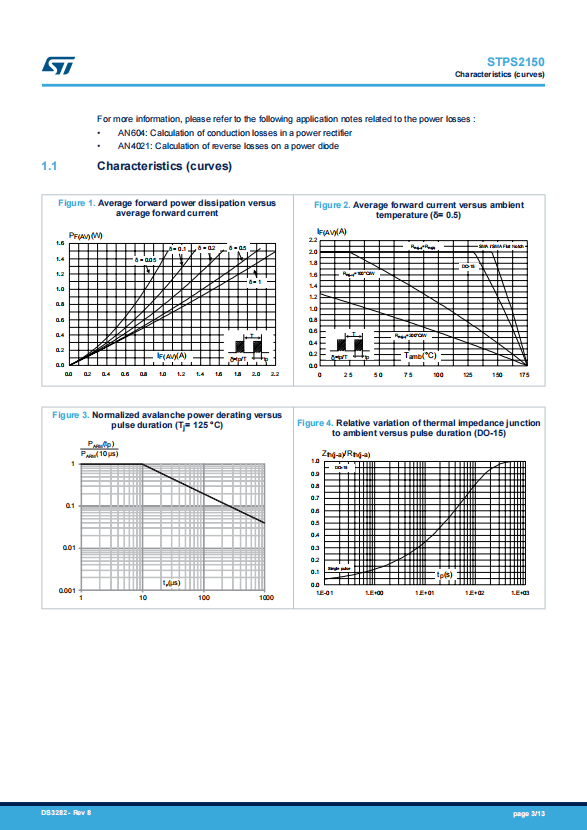

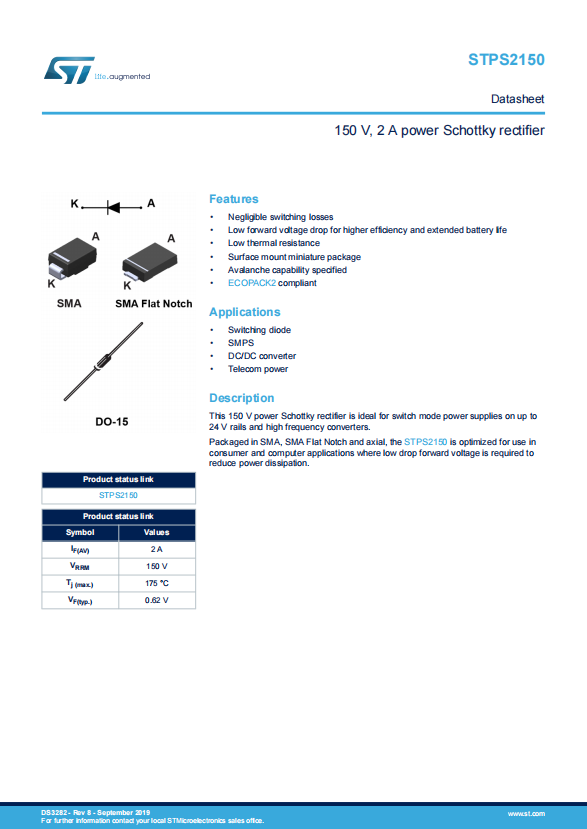

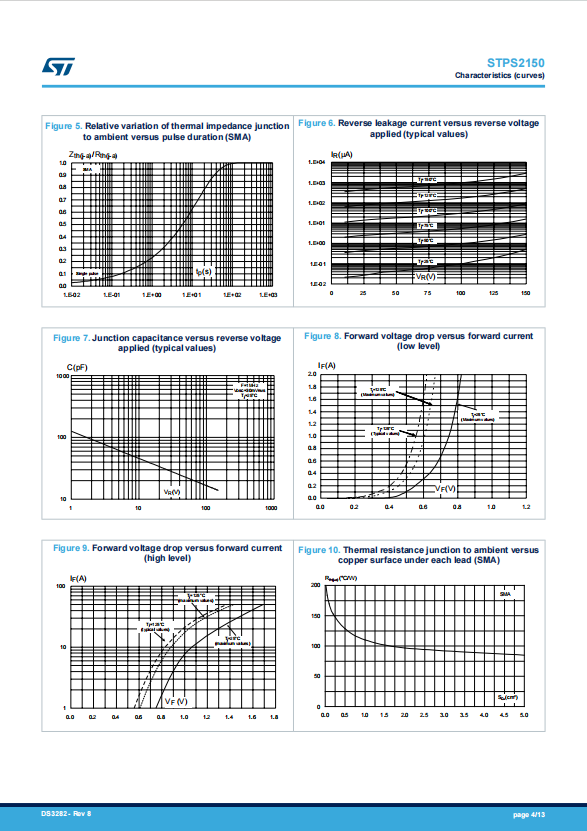

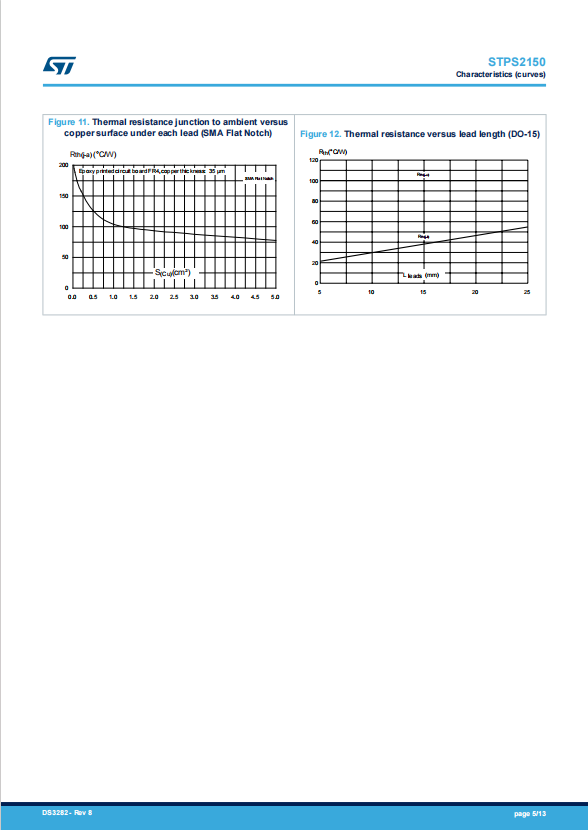

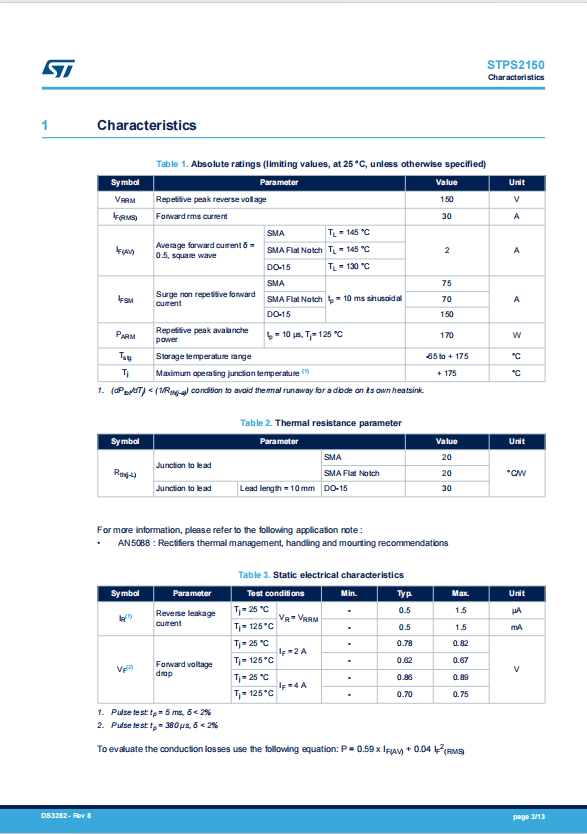

Product Data Book：
For more product information, please download the PDF
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
