Product Feature
? Molded case available in five case codes
? Terminations: 100 % matte tin standard,
tin / lead available
? Compatible with “high volume” automatic
pick and place equipment
? Standard EIA-535-BAAC case sizes
(A through E)
? Qualified to EIA-717
? Moisture sensitivity level 1
? Optical character recognition qualified
? Compliant terminations
Product Applications
? Industrial
? Telecom infrastructure
? General purpose
Product PERFORMANCE / ELECTRICAL
Operating Temperature: -55 °C to +125 °C
(above 85 °C, voltage derating is required)
Capacitance Range: 0.10 μF to 1000 μF
Capacitance Tolerance: ± 5 %, ± 10 % , ± 20 %
100 % Surge Current Tested (D and E Case Codes)
Voltage Rating: 4 VDC to 75 VDC
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-293D476X96R3B2TE3 |
| Category | Capacitors |
| Tantalum Capacitors | |
| Mfr | Vishay Sprague |
| Series | TANTAMOUNT?, 293D |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Capacitance | 47 μF |
| Tolerance | ±10% |
| Voltage - Rated | 6.3 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 1.9Ohm |
| Operating Temperature | -55°C ~ 125°C |
| Lifetime @ Temp. | - |
| Mounting Type | Surface Mount |
| Package / Case | 1411 (3528 Metric) |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.083" (2.11mm) |
| Lead Spacing | - |
| Manufacturer Size Code | B |
| Features | General Purpose |

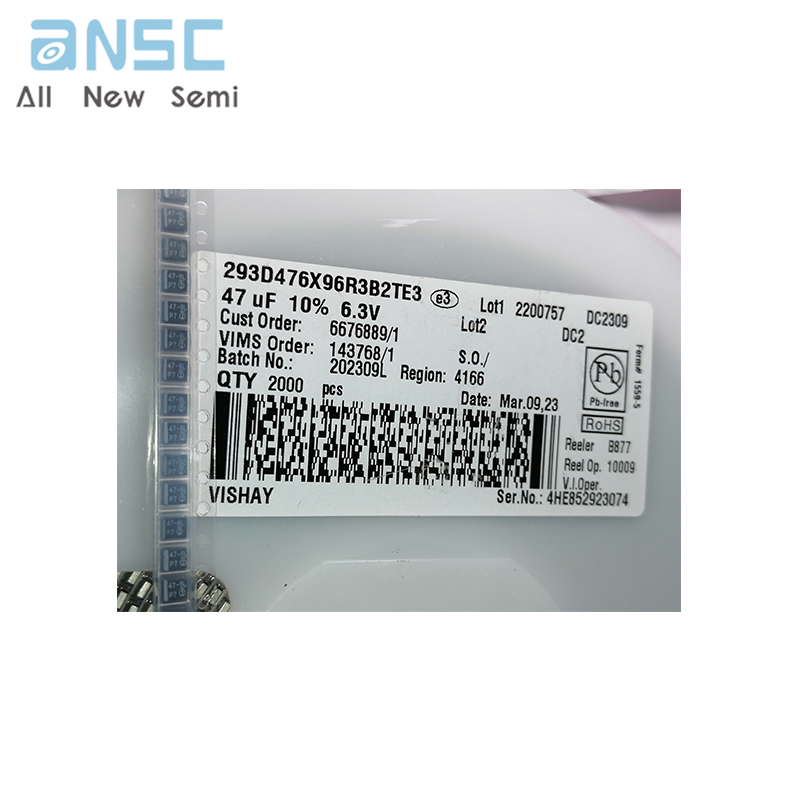

Actual product photos

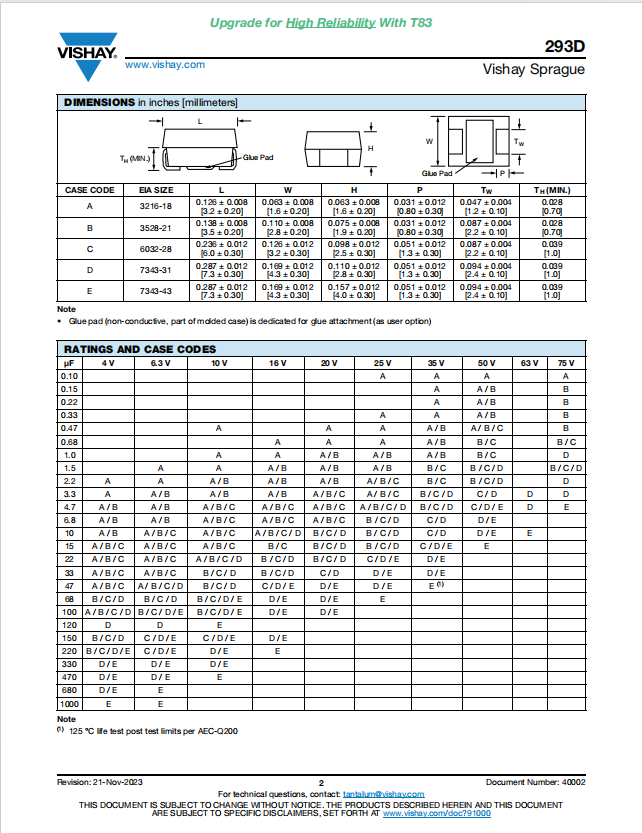

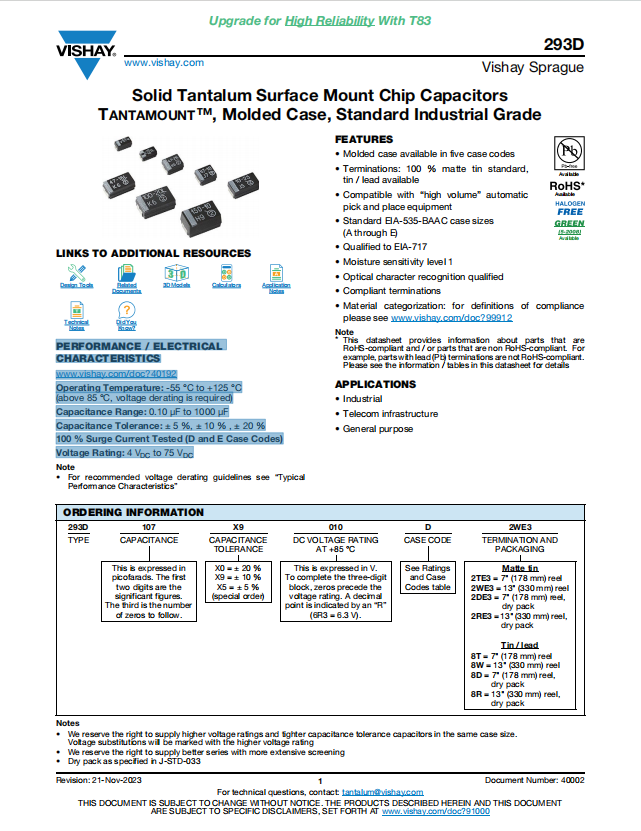

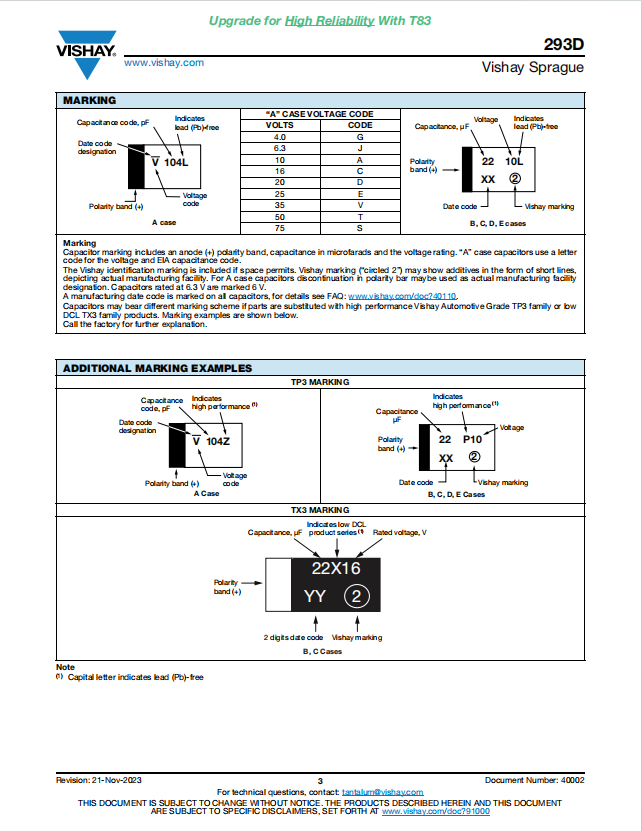

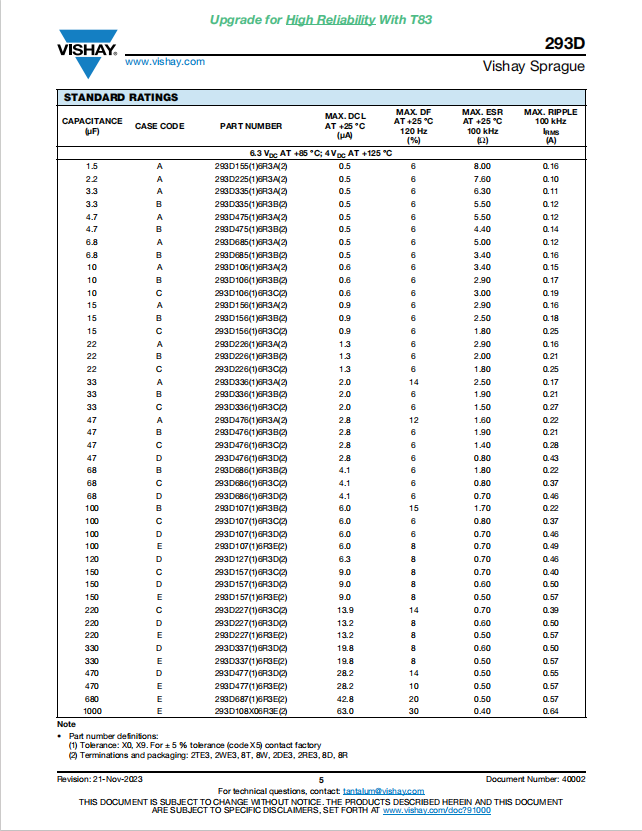

Product Data Book：
For more product information, please download the PDF
