Product Feature
? Very long useful life: 15 000 h at 85 °C
? Low ESR, high ripple current capability
? High resistance to shock and vibration
? Polarized aluminum electrolytic capacitors, non-solid electrolyte
? Large types, cylindrical aluminum case, insulated with a blue sleeve
? Provided with keyed polarity
? 050 series also available in solder-lug (SL) versions
Product Applications
? Computer, telecommunication, and industrial systems
? Smoothing and filtering
? Standard and switched mode power supplies
? Energy storage in pulse systems
Product Marking
The capacitors are marked (where possible) with the following information:
? Rated capacitance (in μF)
? Tolerance on rated capacitance, code letter in accordance with IEC 60062 (Q for -10 % / +30 %)
? Rated voltage (in V)
? Date code (YYWW or in 2 digits according to IEC 60062)
? Name of manufacturer
? Code for factory of origin
? Polarity of the terminals and “-” sign to indicate the negative terminal, visible from the top and / or side of the capacitor
? Code number
? Climatic category in accordance with IEC 60068
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MAL205059332E3 |
| Category | Capacitors |
| Aluminum Electrolytic Capacitors | |
| Mfr | Vishay Beyschlag/Draloric/BC Components |
| Series | 050 PED-PW |
| Package | Tape & Box (TB) |
| Product Status | Active |
| Capacitance | 3300 μF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 59mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.6 A @ 100 Hz |
| Impedance | 48 mOhms |
| Lead Spacing | 0.787" (20.00mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.165" (55.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - 5 Lead |
Actual product photos

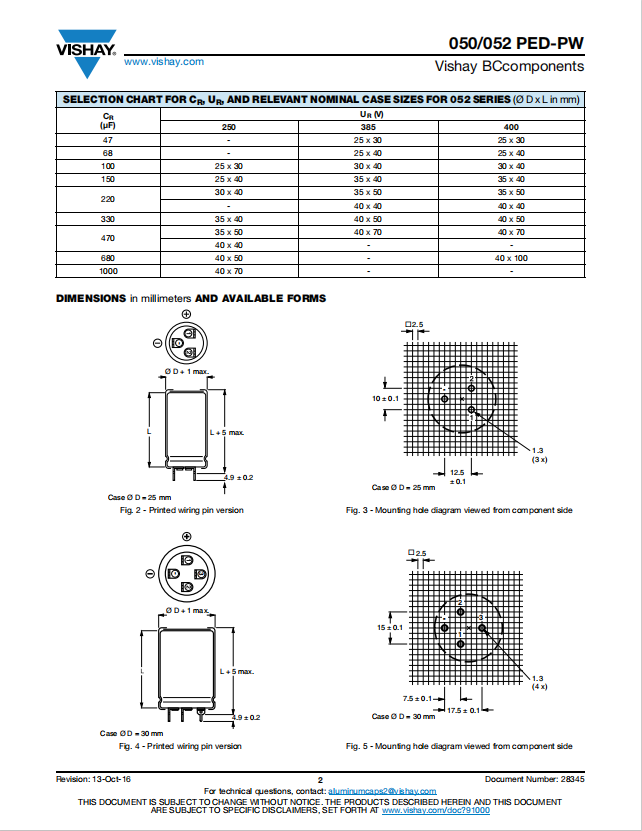

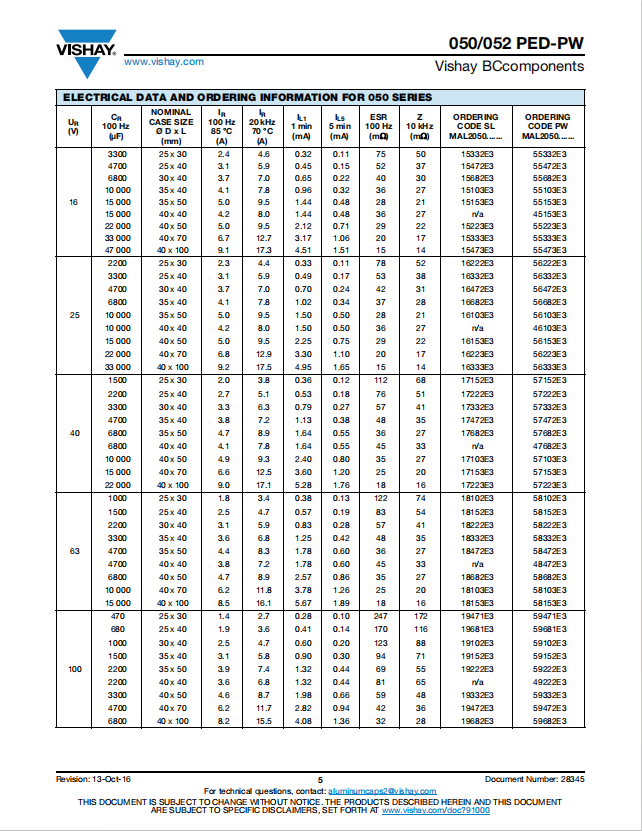

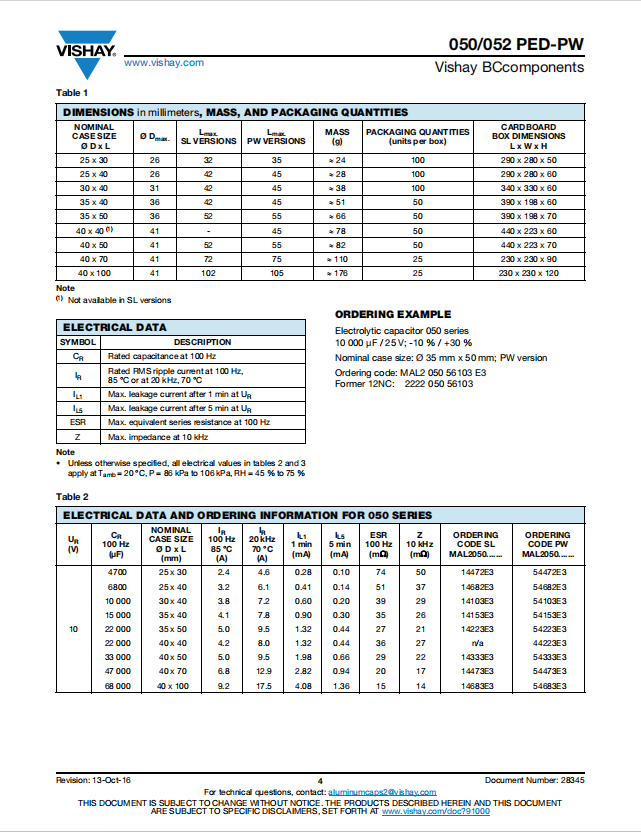

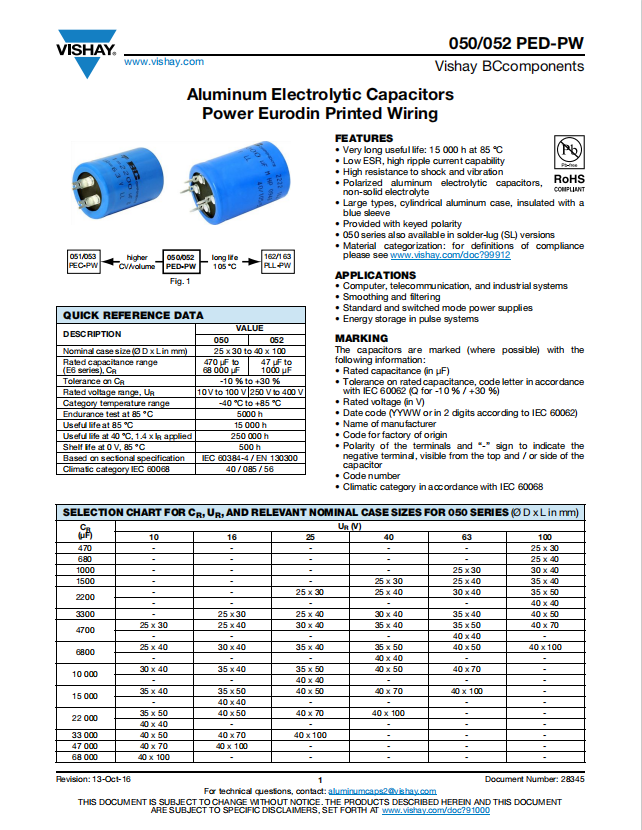

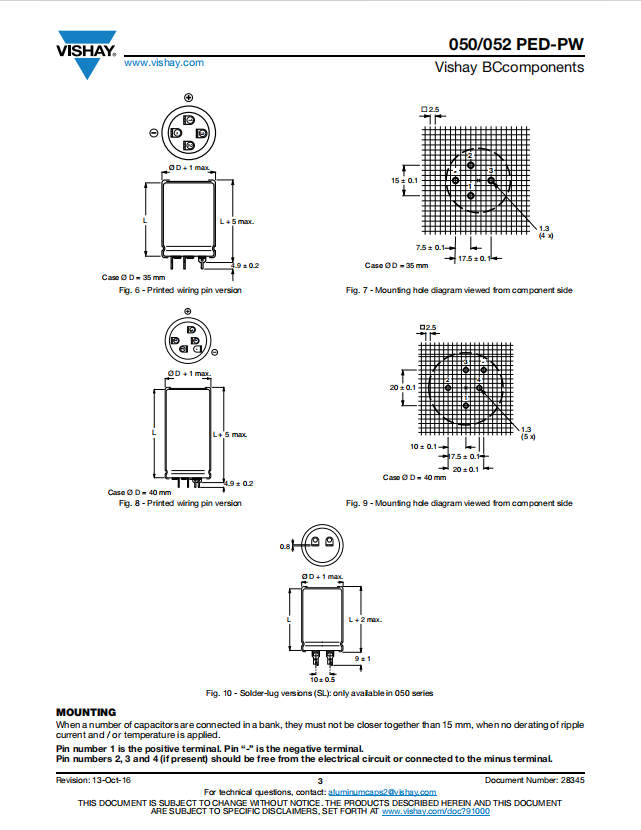

Product Data Book：
For more product information, please download the PDF
