Product FEATURES
? Halogen-free available
? Ultra-Low On-Resistance Using High Density TrenchFET? Gen II Power MOSFET Technology
?Qg Optimized
? New Low Thermal Resistance PowerPAK? Package with Low 1.07 mm Profile
? 100 % Rg Tested
? 100 % UIS Tested
Product Applications
? Low-Side DC/DC Conversion
- Notebook
- Server
- Workstation
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SI7336ADP-T1-E3 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Vishay Siliconix |
| Series | TrenchFET? |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250μA |
| Gate Charge (Qg) (Max) @ Vgs | 50 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5600 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 5.4W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK? SO-8 |
| Package / Case | PowerPAK? SO-8 |
| Base Product Number | SI7336 |

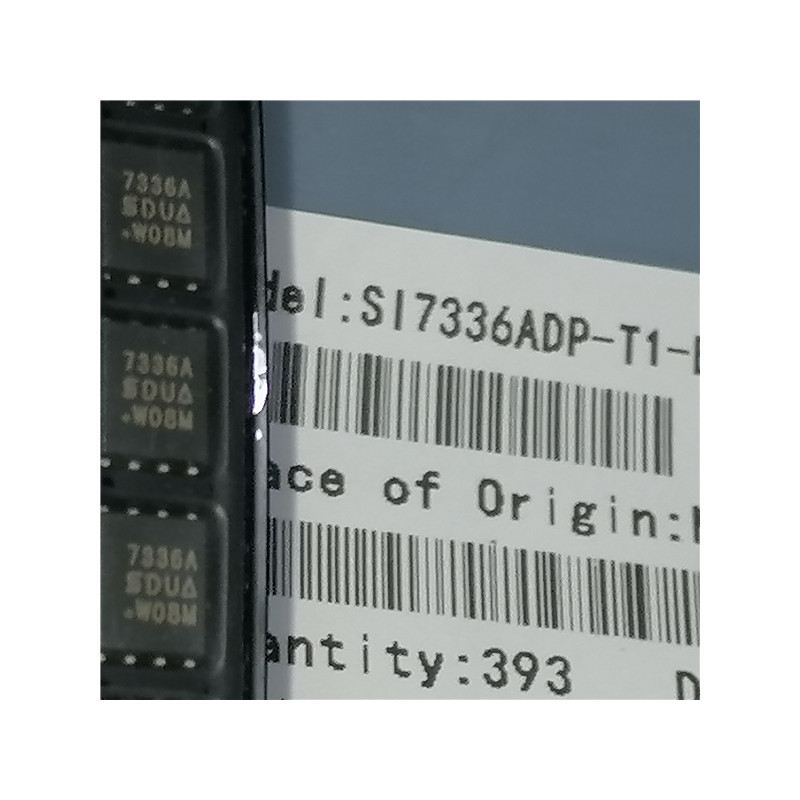

Actual product photos

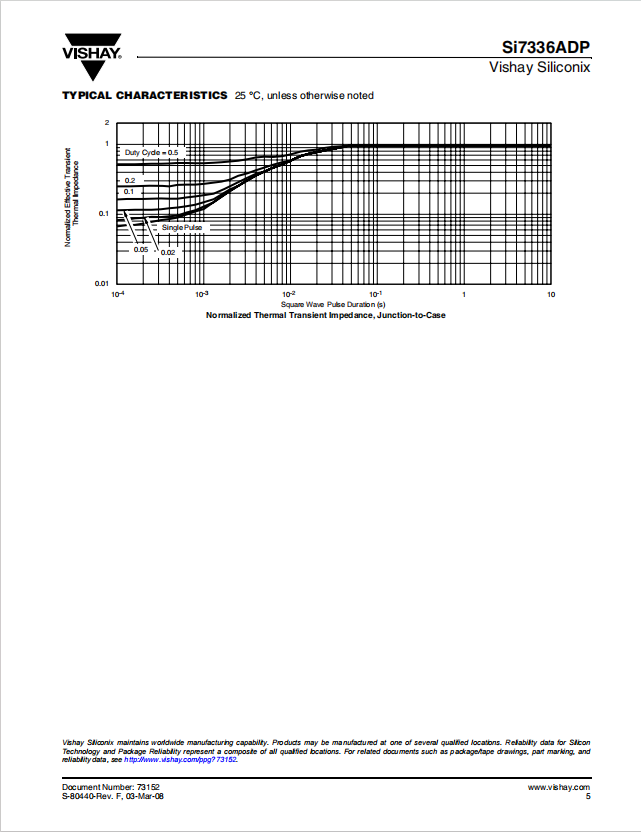

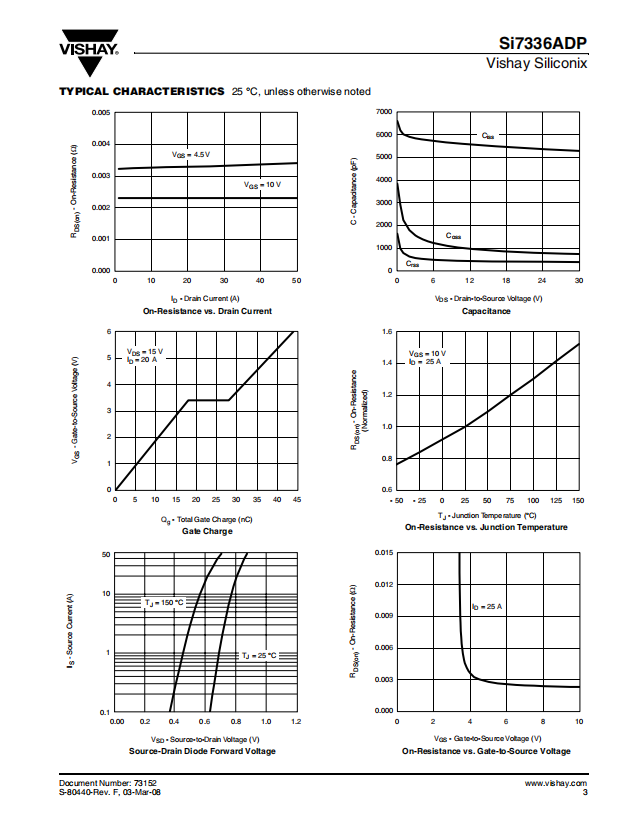

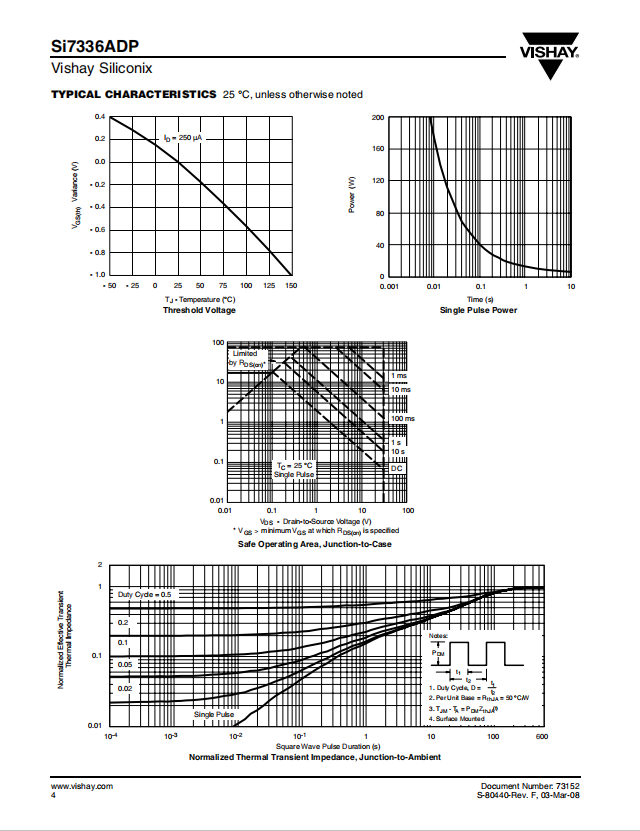

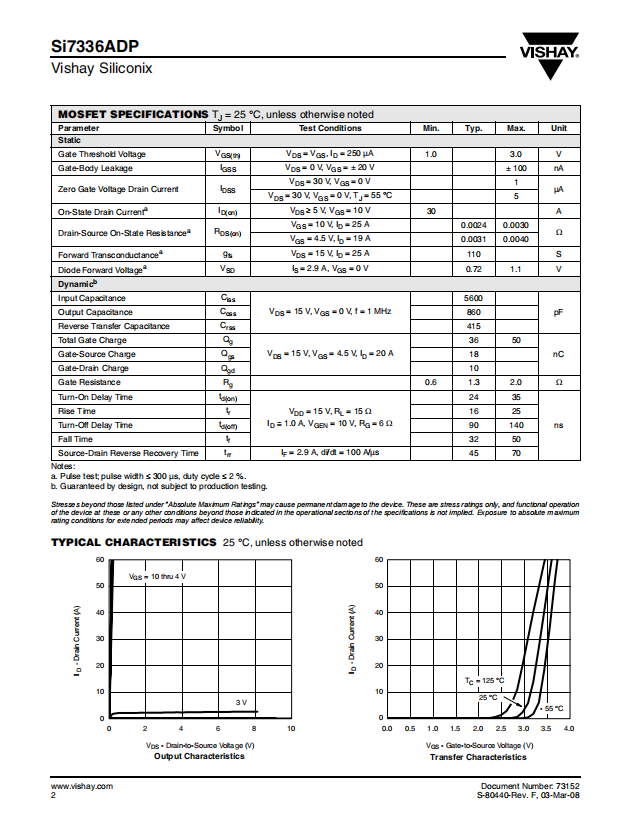

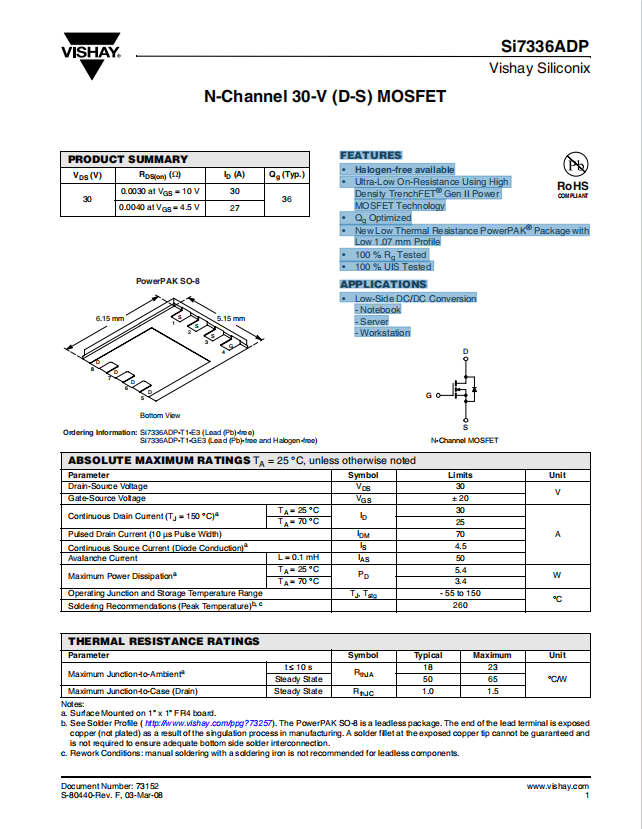

Product Data Book：
For more product information, please download the PDF
