Product Details
BC840M Overview
The RF Transceiver' mounting method adopted is Surface Mount.It is designed to provide optimal performance by utilizing the Tape & Reel (TR)
package.-40°C~85°C should be the operating temperature when Transceiver is operating.It is possible for the RF Transceiver to supply voltages
of 1.7V~5.5V.There is 2.4GHz frequency set for the RF Transceiver Module.
BC840M Features
Surface Mount
Tape & Reel (TR) package
1.7V~5.5V volts
BC840M Applications
BC840M RF Transceiver Modules applications.
Transmit
Receive
Switch
Power management
Internet of Things (IoT)
Secure Payment
Home and Security
Health and Fitness
Industrial and Data Logger
LED Lighting
Product Description
| Type# | Description |
| PART# | BC840M |
| Category | RF and Wireless |
| RF Transceiver Modules and Modems | |
| Mfr | Fanstel |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| RF Family/Standard | 802.15.4, Bluetooth |
| Protocol | Bluetooth v5.0, Thread, Zigbee? |
| Modulation | - |
| Frequency | 2.4GHz |
| Data Rate | 2Mbps |
| Power - Output | 8dBm |
| Sensitivity | -96dBm |
| Serial Interfaces | ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB |
| Antenna Type | PCB Trace |
| Utilized IC / Part | nRF52840-CKAA |
| Memory Size | 1MB Flash, 256kB RAM |
| Voltage - Supply | 1.7V ~ 5.5V |
| Current - Receiving | - |
| Current - Transmitting | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 64-SMD Module |
| Base Product Number | BC840 |

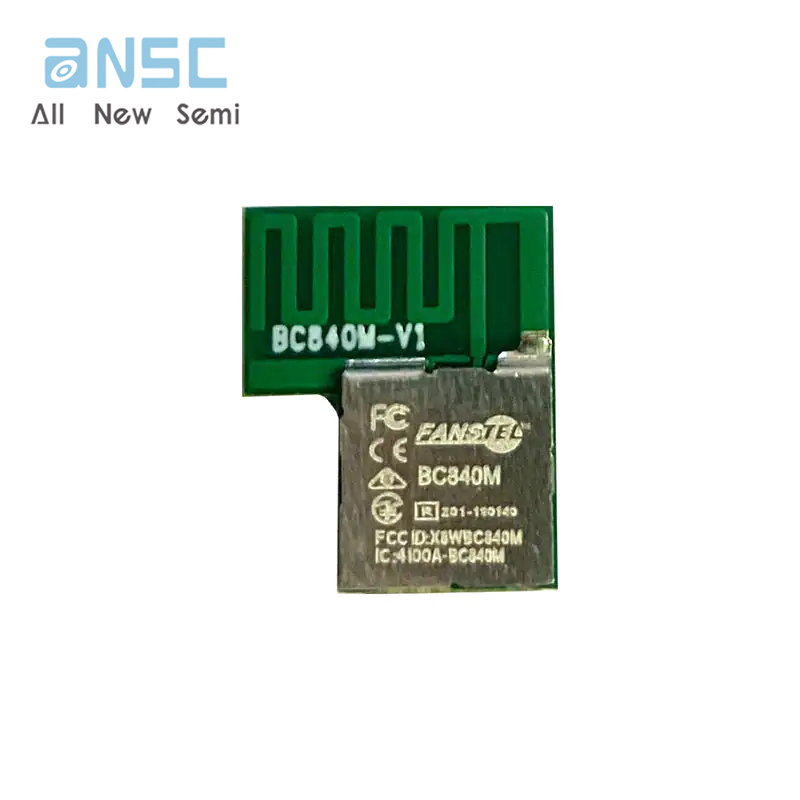

Product Photos

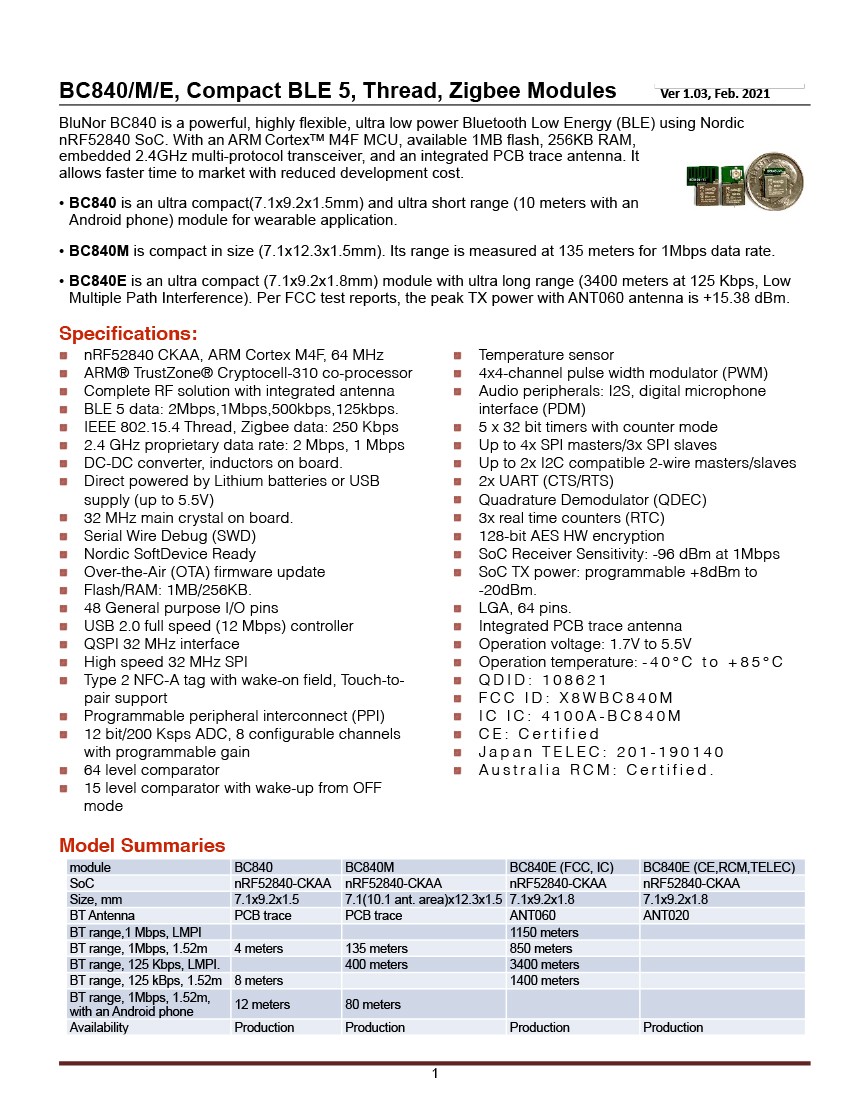

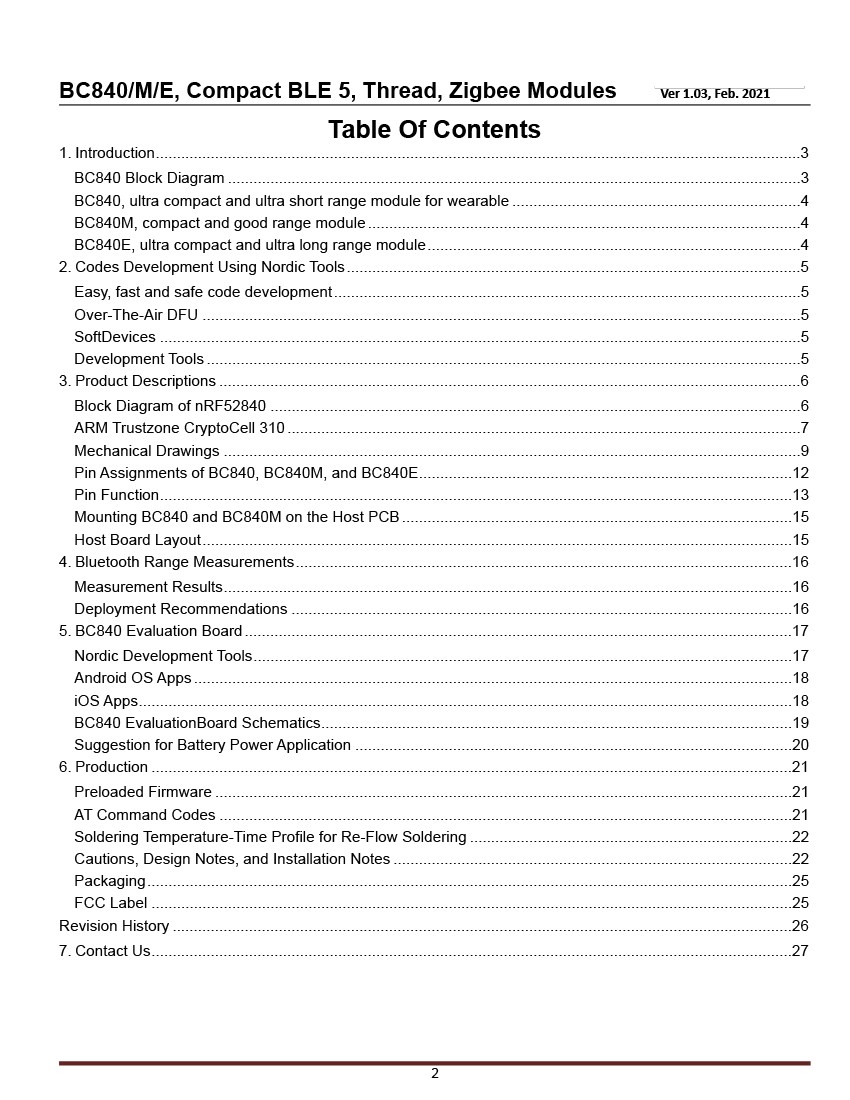

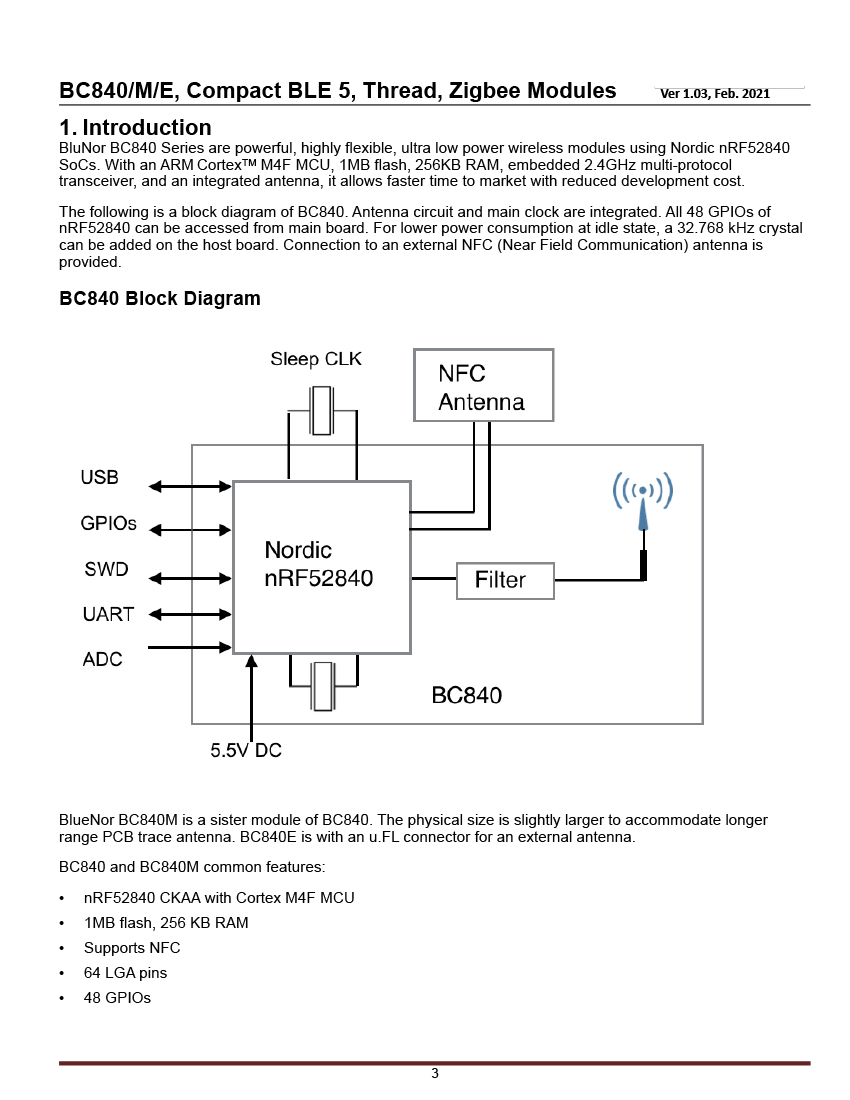

Product datasheet
For more information, please download
