Product Details
| MRF24J40MD-I/RM Overview The RF Transceiver' mounting method adopted is Surface Mount.It is designed to provide optimal performance by utilizing the Tray package.There are 12 terminations in this RF Transceiver module.-40°C~85°C should be the operating temperature when Transceiver is operating.In this case, the high power Transceiver belongs to the family MRF24J40M.It is possible for the RF Transceiver to supply voltages of 3V~3.6V.There is 2.4GHz frequency set for the RF Transceiver Module.Many applications make use of this Transceiver , which has Surface Mount mounted. MRF24J40MD-I/RM Features Surface MountTray package 12 terminations MRF24J40M 3V~3.6V volts MRF24J40MD-I/RM Applications There are a lot of Microchip Technology MRF24J40MD-I/RM RF Transceiver Modules applications. Transmit Receive Switch Power management Internet of Things (IoT) Secure Payment Home and Security Health and Fitness Industrial and Data Logger LED Lighting |
Product Description
| Type | Description |
| PART# | MRF24J40MD-I/RM |
| Category | RF and Wireless |
| RF Transceiver Modules and Modems | |
| Mfr | Microchip Technology |
| Series | - |
| Packaging | Tray |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| RF Family/Standard | 802.15.4 |
| Protocol | Zigbee? |
| Modulation | - |
| Frequency | 2.4GHz |
| Data Rate | 250kbps |
| Power - Output | 19dBm |
| Sensitivity | -104dBm |
| Serial Interfaces | SPI |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | - |
| Memory Size | - |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Receiving | 32mA |
| Current - Transmitting | 140mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | Module |
| Base Product Number | MRF24J40 |

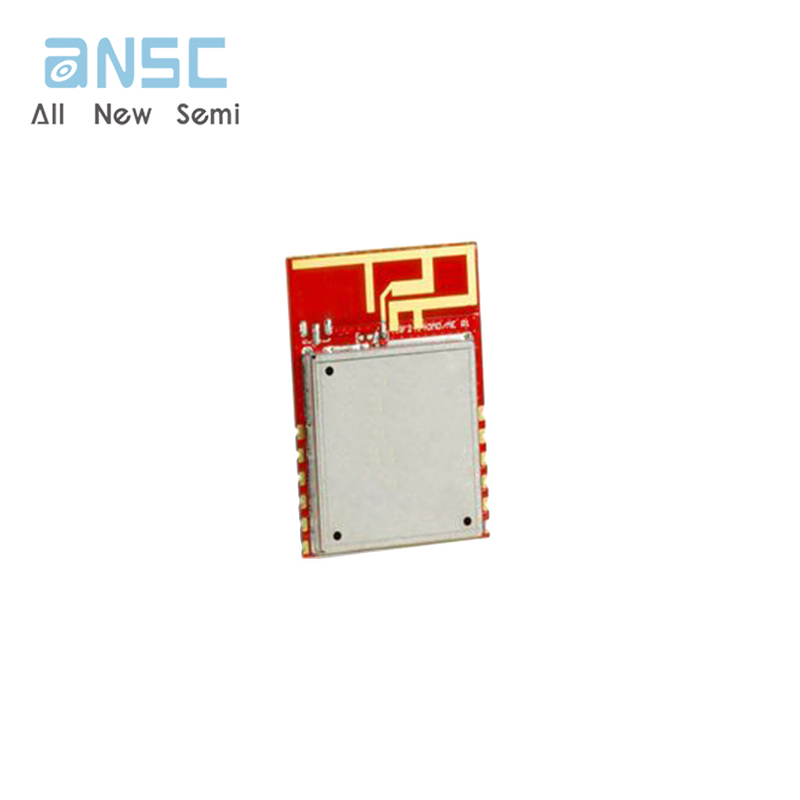

Product Photos
