Product Descriptions
The X7R dielectric is the most popular of the intermediate EIA class II materials due to its relative temperature stability. While the capacitance change is non-linear, temperature variation is within ±15% from - 55°C to + 125°C.
Capacitance for X7R varies under the infuence of electrical operating conditions such as voltage and frequency. X7R dielectric chip usage covers a broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-0603WAJ0472T5E |
| Manufacturer: | Royalohm |
| Product Category: | Thick Film Resistors - SMD |
| RoHS: | Details |
| Series: | General Purpose Thick Film |
| Resistance: | 4.7 kOhms |
| Power Rating: | 62.5 mW (1/16 W) |
| Tolerance: | 0.05 |
| Temperature Coefficient: | 200 PPM / C |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | + 125 C |
| Voltage Rating: | 75 V |
| Case Code - in: | 603 |
| Case Code - mm: | 1608 |
| Application: | High Frequency |
| Features: | Wrap-Around Termination |
| Packaging: | Reel |
| Brand: | Royalohm |
| Height: | 0.45 mm |
| Length: | 1.6 mm |
| Mounting Style: | PCB Mount |
| Product: | Thick Film Resistors SMD |
| Product Type: | Thick Film Resistors |
| Factory Pack Quantity: | 5000 |
| Subcategory: | Resistors |
| Technology: | Thick Film |
| Termination Style: | SMD/SMT |
| Width: | 0.8 mm |
| Part # Aliases: | 301-4.7K-RC |
| Unit Weight: | 0.000071 oz |

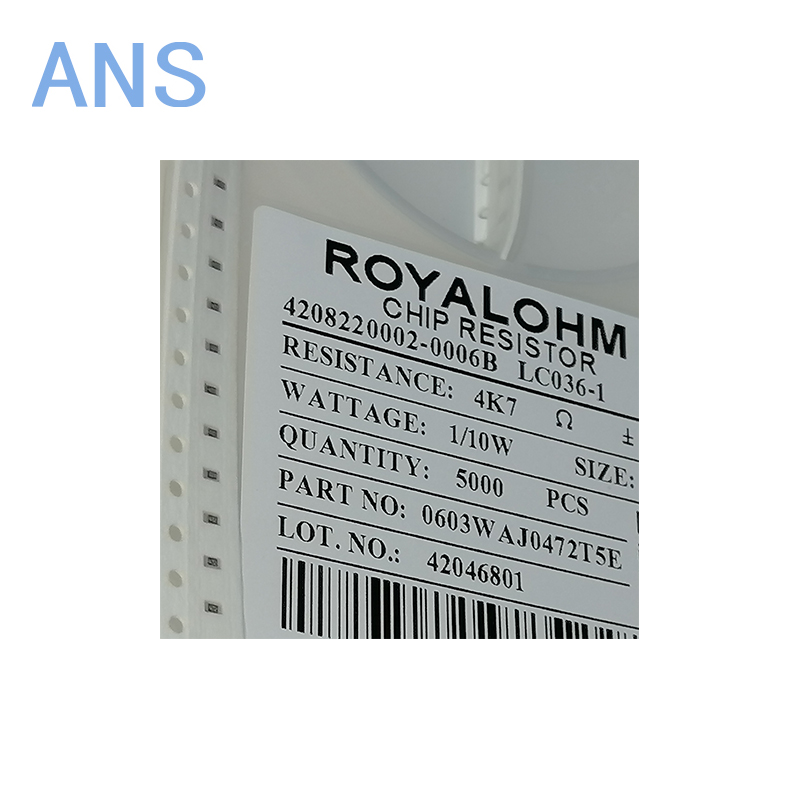

Actual product photos

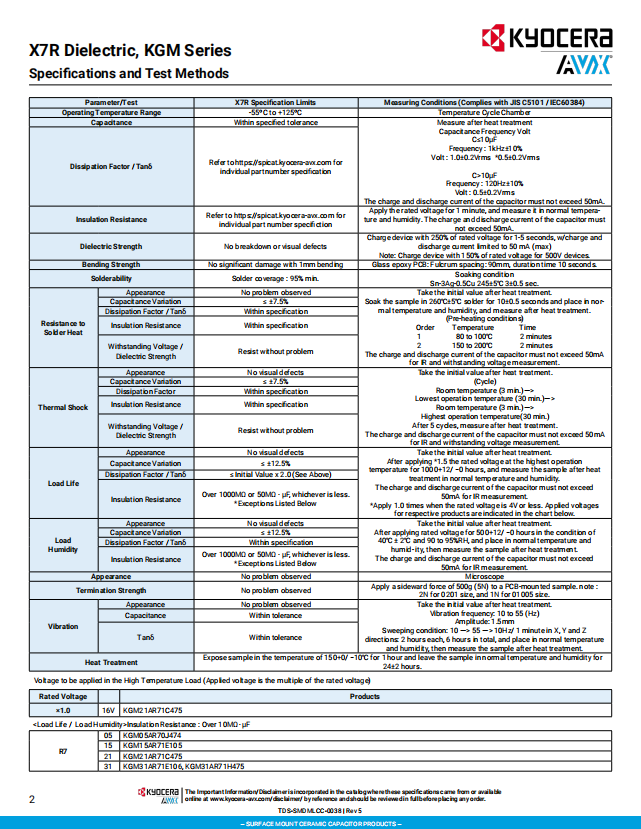

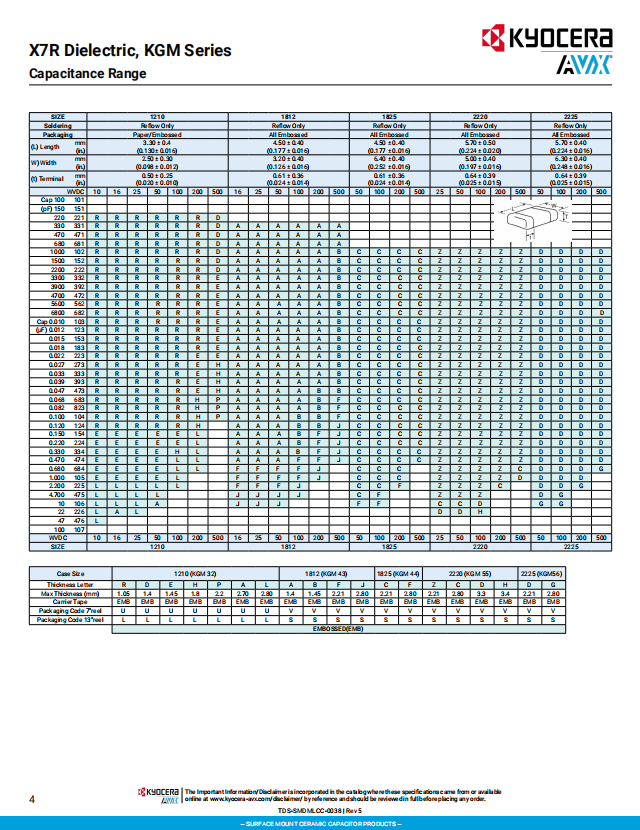

Product Data Book：
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
We also provide ：
| Part No | Manufacturer | Date Code | Quantity | Description |
| LM22676ADJ | NS | 19+ | 250 | SOP8 |
| TPS562201DDCR | TI | 22+ | 795500 | SOT23-6 |
| NJG1806K75 | JRC | 22+ | 500000 | DFN6 |
| TLV74318PDQNR | TI | 22+ | 402000 | X2SON-4 |
| NJG1801K75 | JRC | 22+ | 300000 | SMD |
| NJG1804K64 | JRC | 22+ | 300000 | DFN8 |
| LM27761DSGR | TI | 22+ | 151000 | WSON8 |
| TLV62565DBVR | TI | 22+ | 138000 | SOT23-5 |
| TPS613222ADBVR | TI | 22+ | 108000 | SOT23-5 |
| LNK625DG-TL | POWER | 22+ | 100000 | SOP-8 |
| OPA4322AIPWR | TI | 22+ | 100000 | TSSOP14 |
| TLV75528PDRVR | TI | 22+ | 99000 | WSON-6 |
| TPS7A2025PDQNR | TI | 22+ | 78500 | X2SON-4 |
| TLV62568DBVR | TI | 22+ | 72000 | SOT23-5 |
| STM32L051K8U6TR | ST | 22+ | 60000 | QFN32 |
| SKY66421-11 | SKYWORKS | 22+ | 56500 | QFN16 |
| TPS7A1111PDRVR | TI | 22+ | 54000 | WSON6 |
| TLV62569PDDCR | TI | 22+ | 52000 | SOT23-6 |
| TLV62569DBVR | TI | 22+ | 48000 | SOT23-5 |
| TPS23753APWR | TI | 22+ | 40000 | TSSOP14 |
| NB691GG-Z | MPS | 22+ | 30000 | QFN |
| SN74AHC1G02DBVR | TI | 22+ | 27939 | SOT-23 |
| TPS63000DRCR | TI | 22+ | 23238 | VSON10 |
| TLV75533PDRVR | TI | 22+ | 21500 | WSON6 |
| NB687BGQ-Z | MPS | 22+ | 20000 | QFN |
| A3916GESTR-T-1 | ALLEGRO | 22+ | 17150 | QFN-20 |
| TPS62135RGXR | TI | 22+ | 15000 | VQFN11 |
| TLE2022AMDR | TI | 0803+ | 12500 | SOP8 |
| TPS23756PWPR | TI | 22+ | 12000 | HTSSOP-20 |
