Product Descriptions
? Small size & light weight 短小輕薄
? Reduction of assembly costs and matching with placement machine.
可降低裝置成本及配合機(jī)器組裝
? Suitable for both wave & re-flow soldering. 適合波峰焊與回流焊
? Applications: Navigator (GPS), Mobile Phone,Telecom, PDA, Digital CATV Receiver, Meter.
應(yīng)用于GPS、移動(dòng)電話、PDA、機(jī)頂盒、儀表
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-0805W8J0222T5E |
| Manufacturer: | Royalohm |
| Product Category: | Thick Film Resistors - SMD |
| RoHS: | Details |
| Series: | General Purpose Thick Film |
| Resistance: | 2.2 kOhms |
| Power Rating: | 100 mW (1/10 W) |
| Tolerance: | 0.05 |
| Temperature Coefficient: | 200 PPM / C |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | + 125 C |
| Voltage Rating: | 150 V |
| Case Code - in: | 805 |
| Case Code - mm: | 2012 |
| Application: | High Frequency |
| Features: | Wrap-Around Termination |
| Packaging: | Reel |
| Brand: | Royalohm |
| Height: | 0.55 mm |
| Length: | 2 mm |
| Mounting Style: | PCB Mount |
| Product: | Thick Film Resistors SMD |
| Product Type: | Thick Film Resistors |
| Factory Pack Quantity: | 5000 |
| Subcategory: | Resistors |
| Technology: | Thick Film |
| Termination Style: | SMD/SMT |
| Width: | 1.25 mm |
| Part # Aliases: | 260-2.2K-RC |
| Unit Weight: | 0.000194 oz |

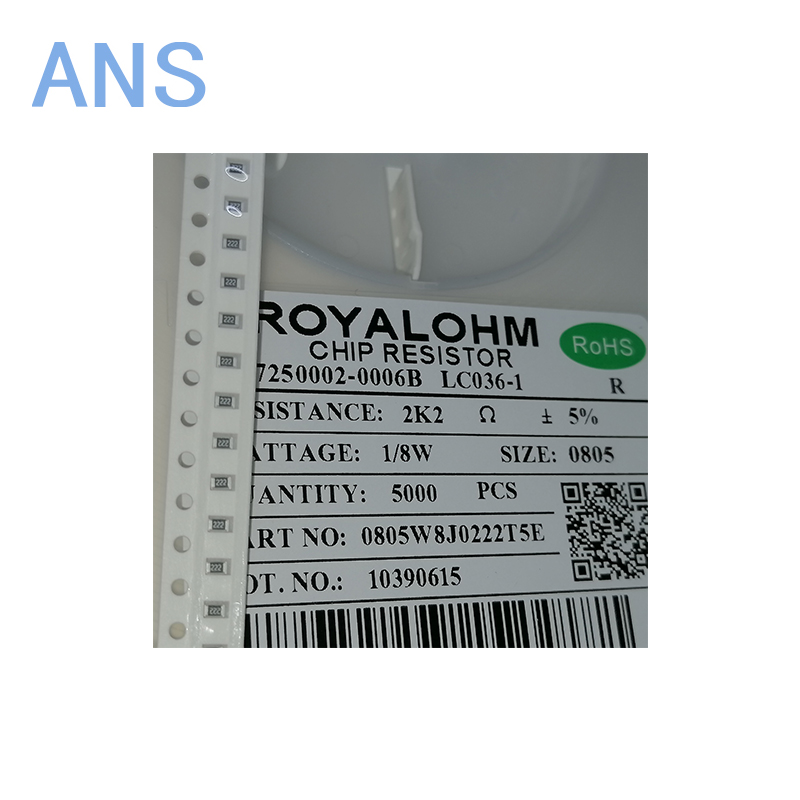

Actual product photos

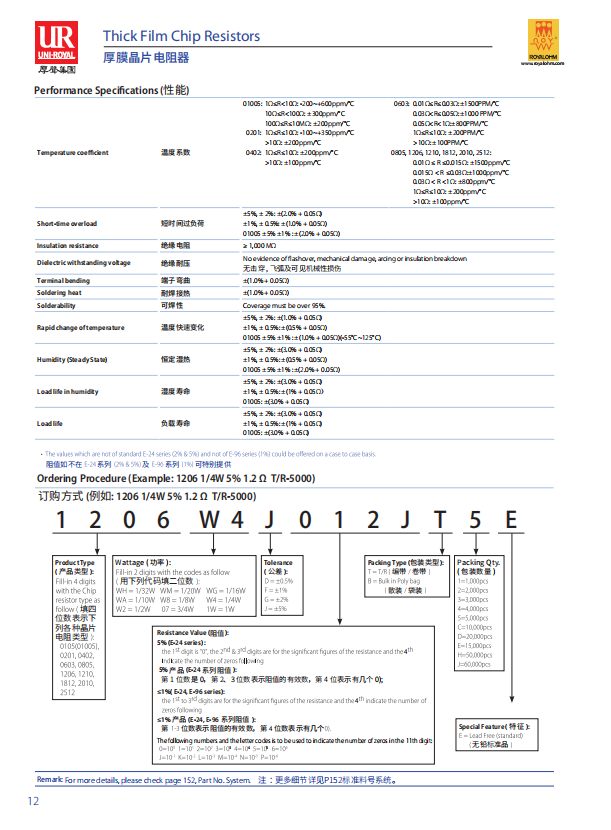

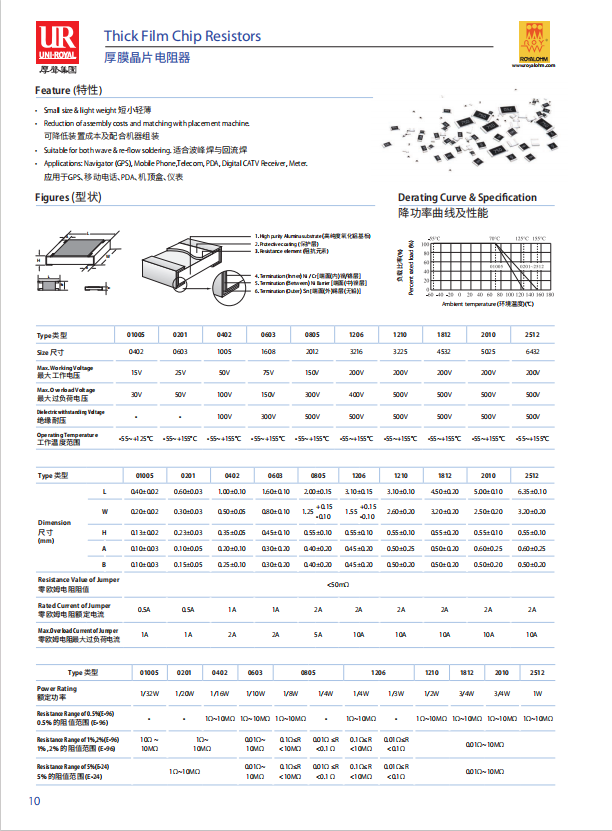

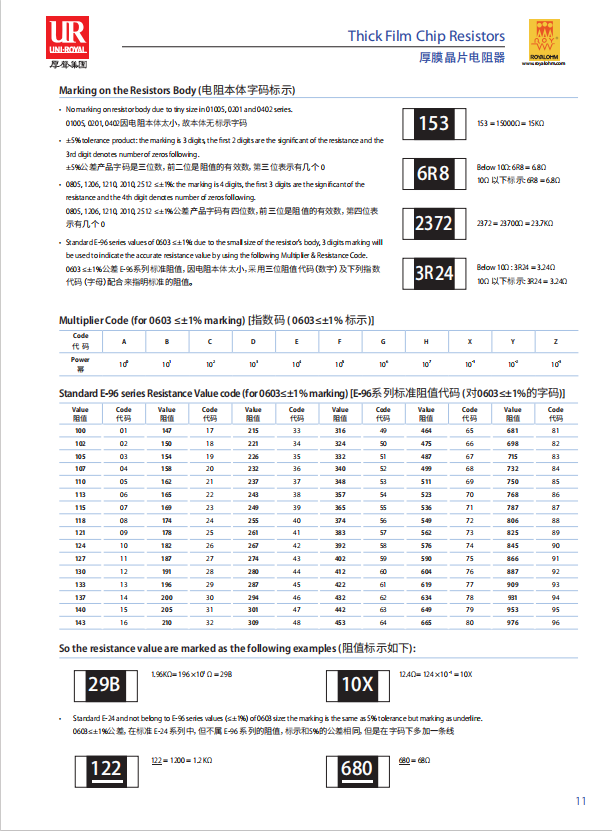

Product Data Book：
For more product information, please download the PDF
