Product Features
? General Purpose SMT Chip Tantalum Series
? 100% Surge Current Tested
? 17 Case Sizes Available, Standard and Low Profile Down to 1mm Maximum Height
? CV Range: 0.10 - 2200μF / 2.5 - 50V
? J-Lead Construction
Product Applications
? General Low Power DC/DC and LDO
? Entertainment / Infotainment Systems
? Height Restricted Design
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TAJA226K010RNJ |
| Category | Capacitors |
| Tantalum Capacitors | |
| Mfr | KYOCERA AVX |
| Series | TAJ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Capacitance | 22 μF |
| Tolerance | ±10% |
| Voltage - Rated | 10 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 3Ohm @ 100kHz |
| Operating Temperature | -55°C ~ 125°C |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
| Lead Spacing | - |
| Manufacturer Size Code | A |
| Ratings | - |
| Features | General Purpose |
| Failure Rate | - |

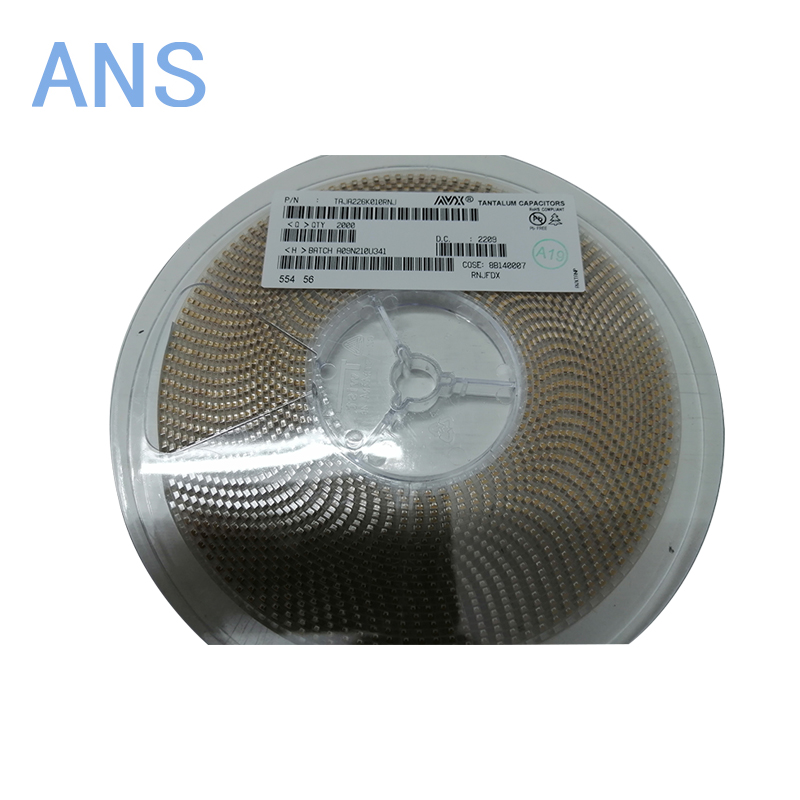

Actual product photos

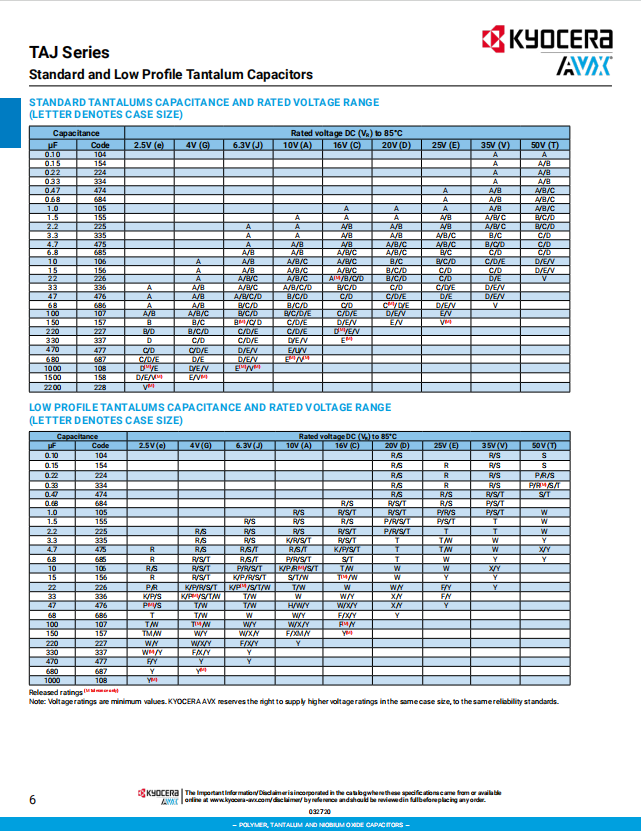

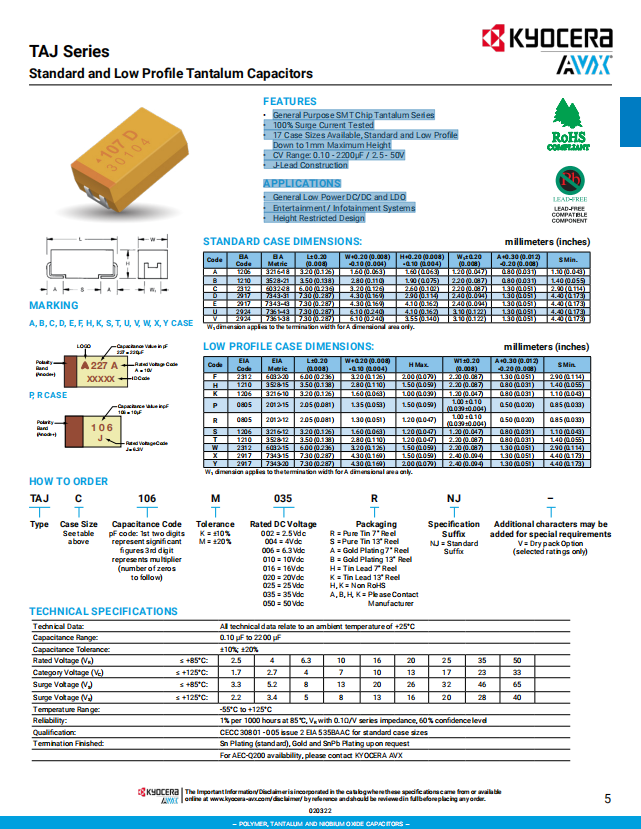

Product Data Book：
For more product information, please download the PDF
