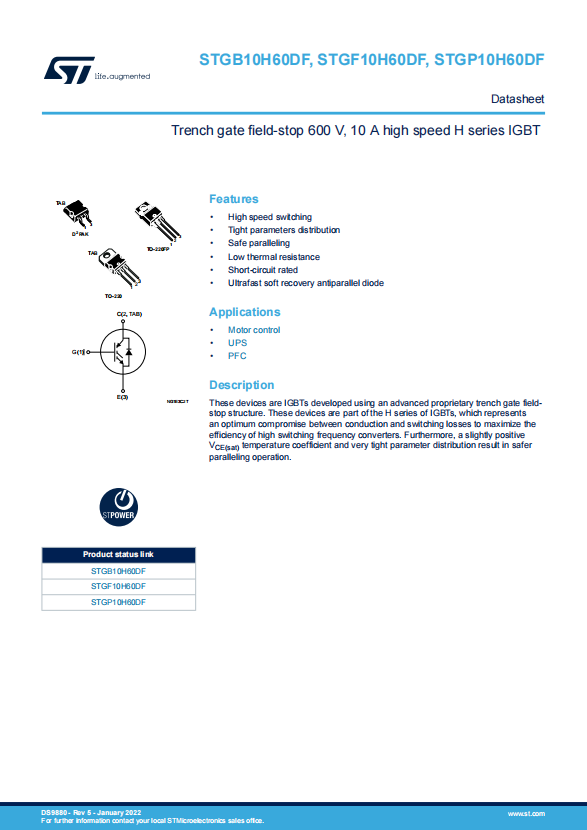

Product Descriptions
These devices are IGBTs developed using an advanced proprietary trench gate field stop structure. These devices are part of the H series of IGBTs, which represents an optimum compromise between conduction and switching losses to maximize the efficiency of high switching frequency converters. Furthermore, a slightly positive VCE(sat) temperature coefficient and very tight parameter distribution result in safer paralleling operation.
Product Features
? High speed switching
? Tight parameters distribution
? Safe paralleling
? Low thermal resistance
? Short-circuit rated
? Ultrafast soft recovery antiparallel diode
Product Applications
? Motor control
? UPS
? PFC
Specifications

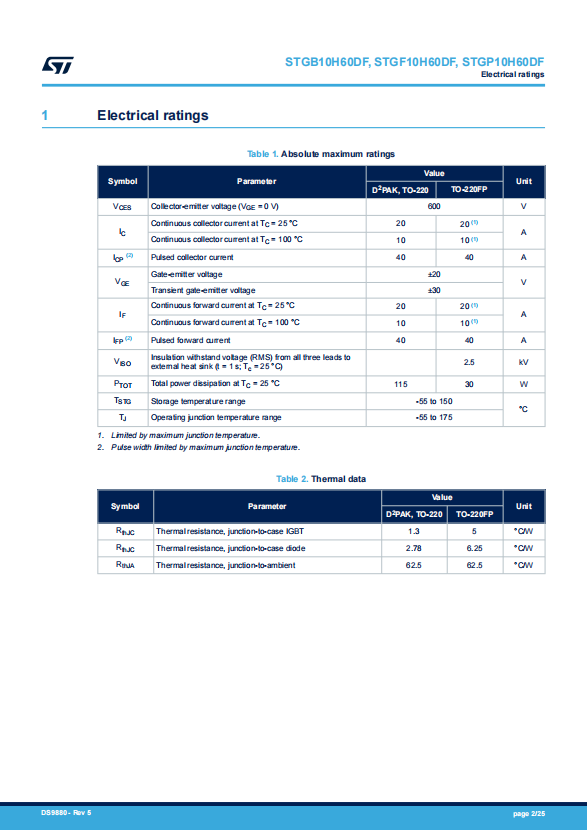

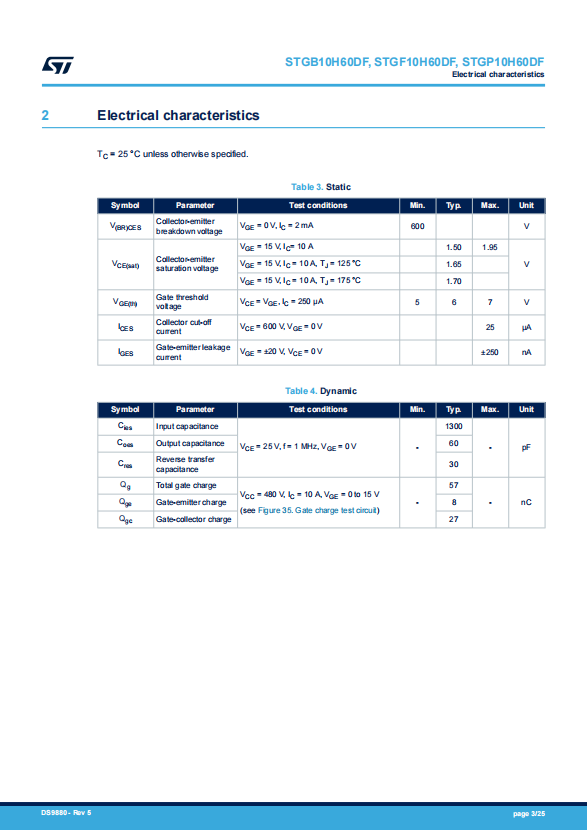

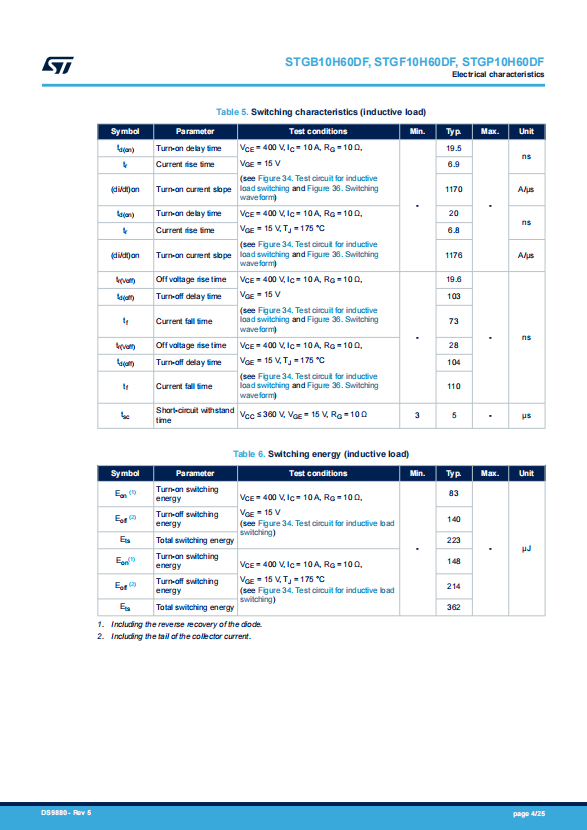

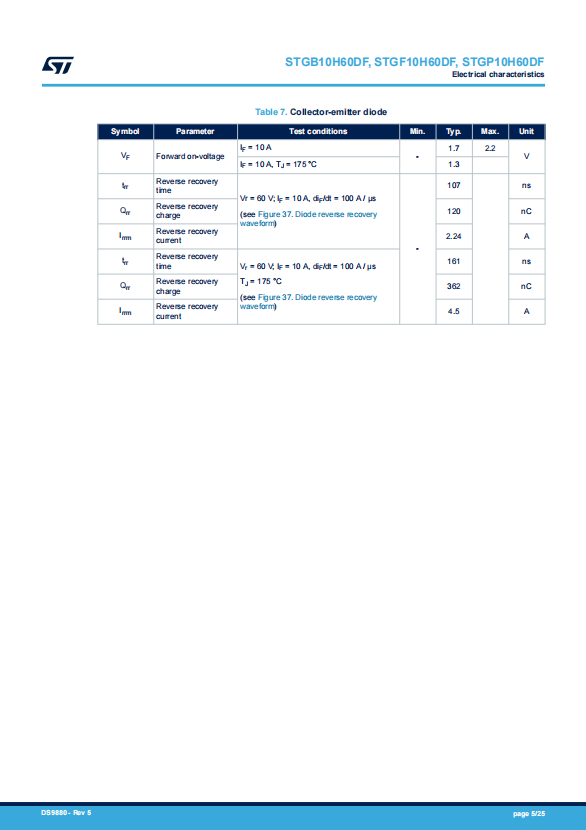

| Attribute | Attribute value |
| ANSM-Part# | ANSM-STGF10H60DF |
| Category | Discrete Semiconductor Products |
| Transistors | |
| IGBTs | |
| Single IGBTs | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tube |
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 20 A |
| Current - Collector Pulsed (Icm) | 40 A |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 10A |
| Power - Max | 30 W |
| Switching Energy | 83μJ (on), 140μJ (off) |
| Input Type | Standard |
| Gate Charge | 57 nC |
| Td (on/off) @ 25°C | 19.5ns/103ns |
| Test Condition | 400V, 10A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 107 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220FP |
| Base Product Number | STGF10 |

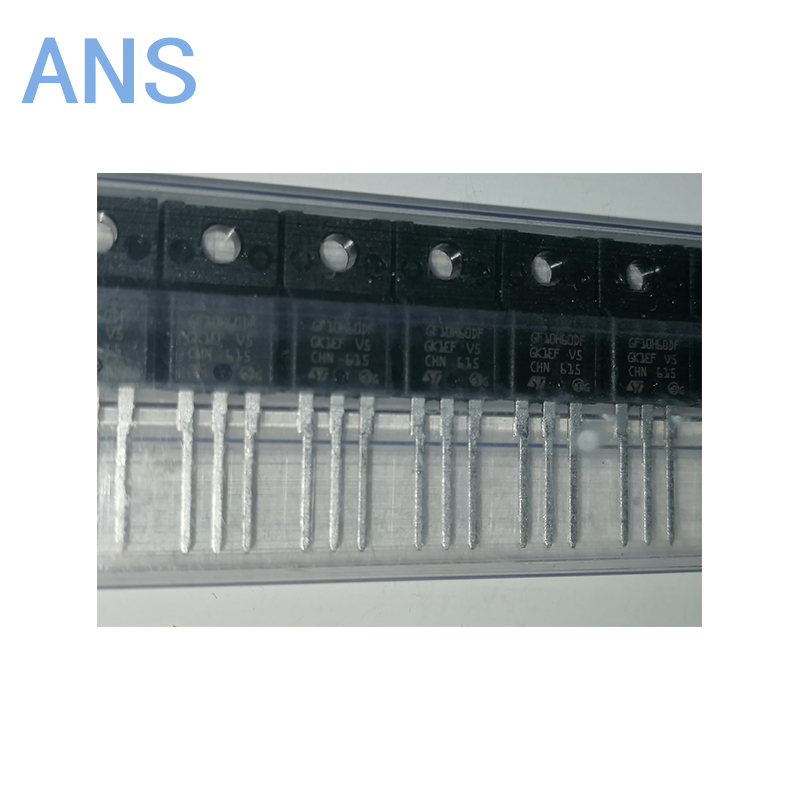

Actual product photos
