Product Features
? BVCEO > 20V
? IC = 2.5A Continuous Collector Current
? RCE(SAT) = 50m? for a low equivalent On-Resistance
? 625mW Power dissipation
? hFE characterised up to 6A for high current gain hold up
? Complementary NPN type: FMMT718
? Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? Qualified to AEC-Q101 Standards for High Reliability
? PPAP capable (Note 4)
Product Applications
? DC-DC Modules
? Gate driver
? LED driver
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-FMMT618TA |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | Diodes Incorporated |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 2.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 20 V |
| Vce Saturation (Max) @ Ib, Ic | 200mV @ 50mA, 2.5A |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2A, 2V |
| Power - Max | 625 mW |
| Frequency - Transition | 140MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | FMMT618 |

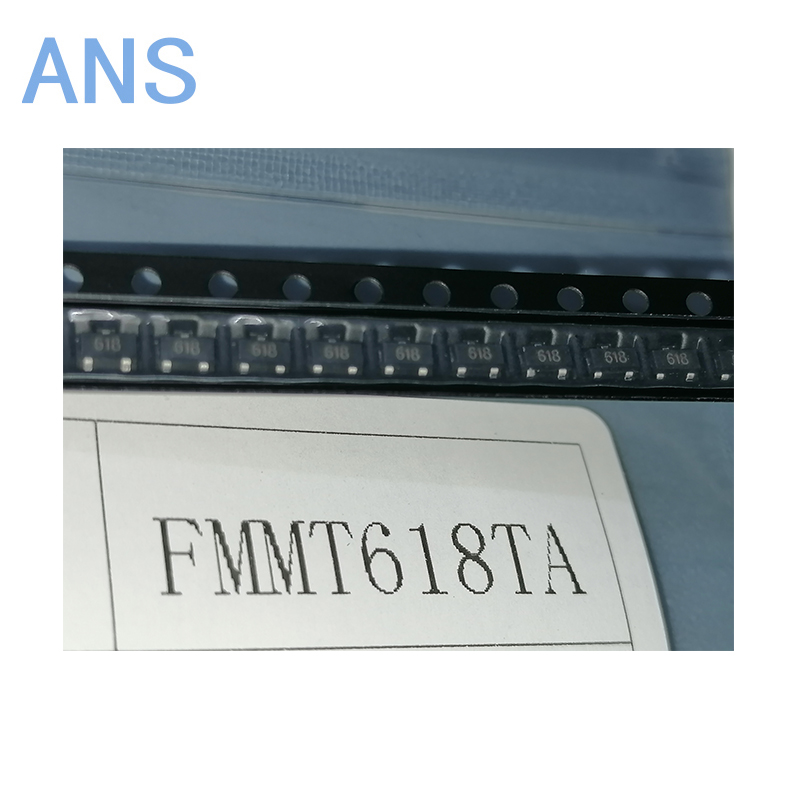

Actual product photos

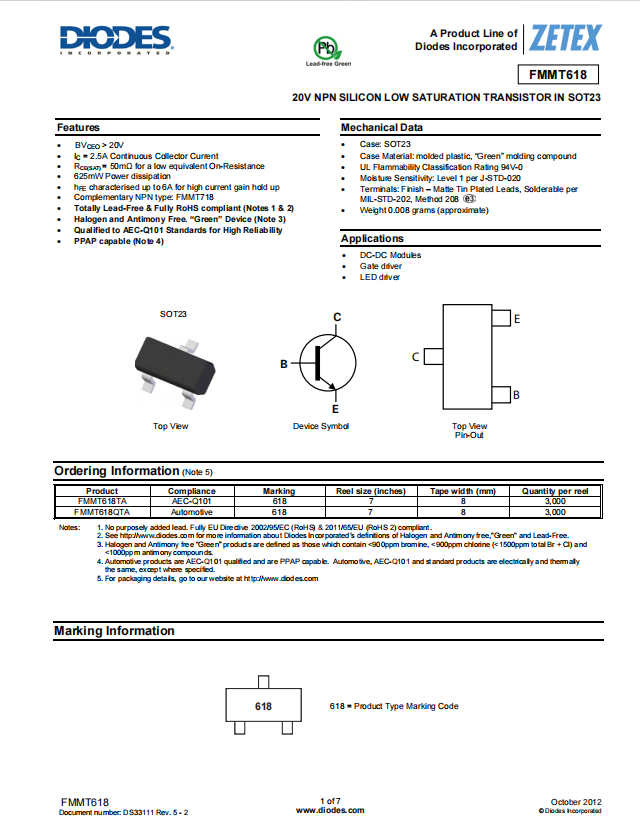

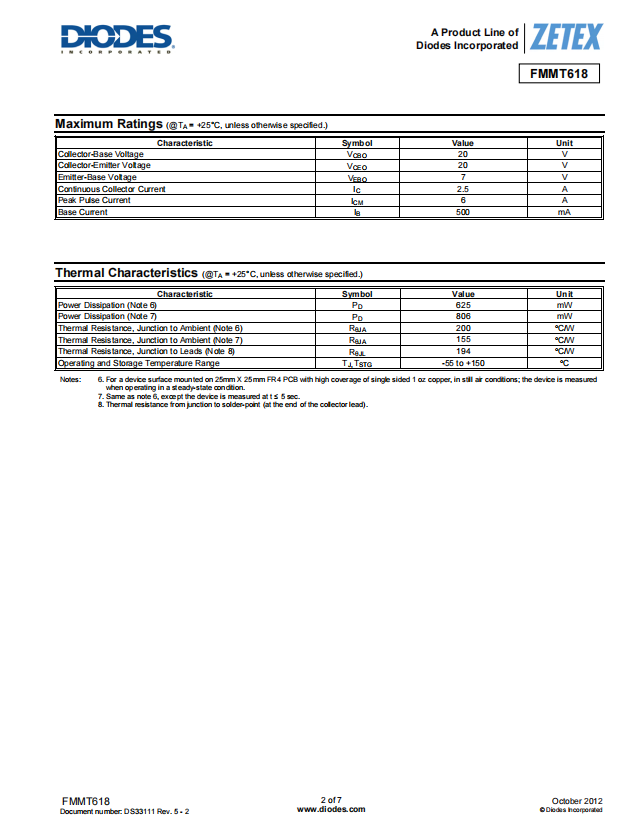

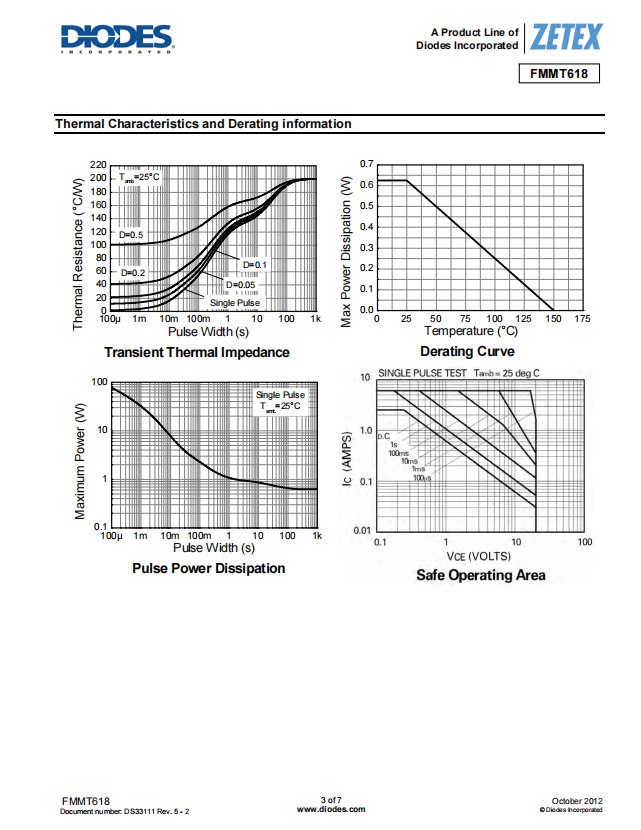

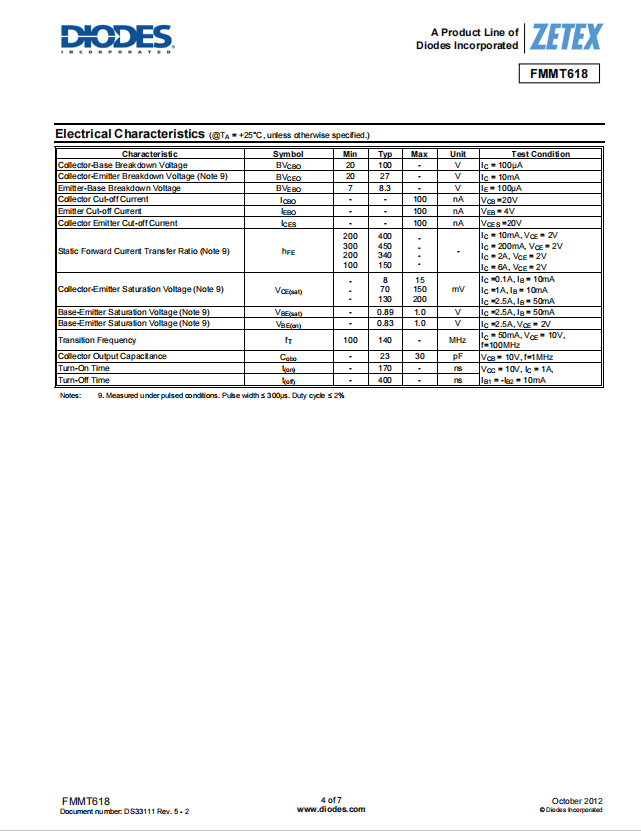

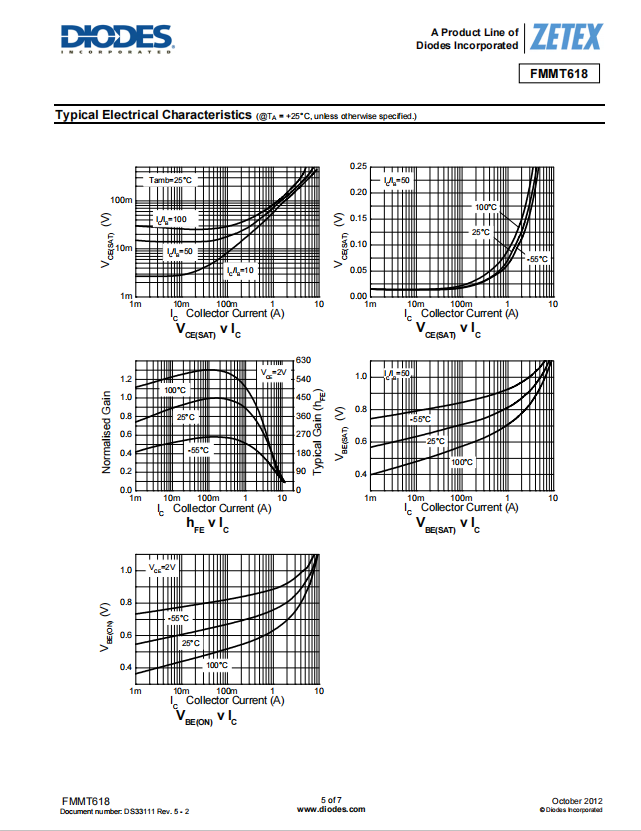

Product Data Book：
For more product information, please download the PDF
