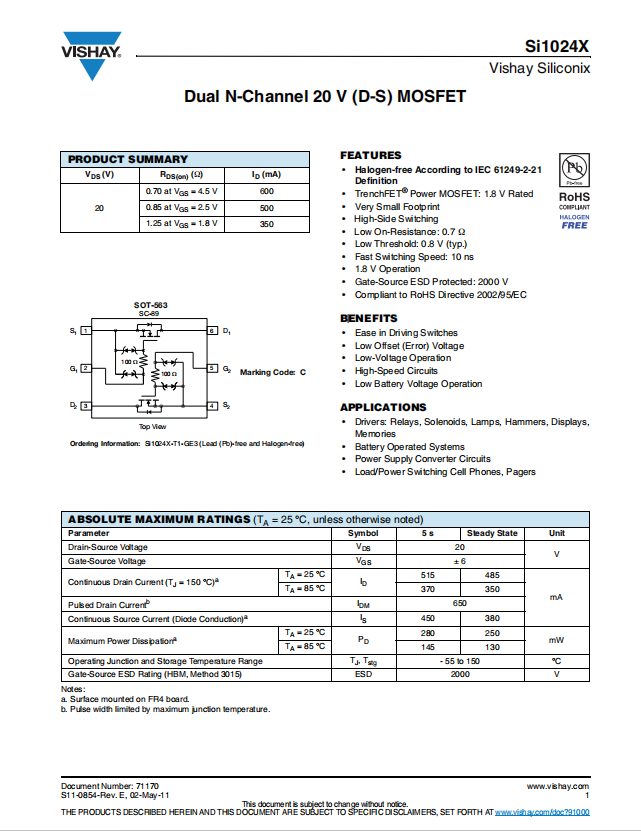

Product Features

? Halogen-free According to IEC 61249-2-21

? Definition

? TrenchFET? Power MOSFET: 1.8 V Rated

? Very Small Footprint

? High-Side Switching

? Low On-Resistance: 0.7 ohm

? Low Threshold: 0.8 V (typ.)

? Fast Switching Speed: 10 ns

? 1.8 V Operation

? Gate-Source ESD Protected: 2000 V

? Compliant to RoHS Directive 2002/95/EC

? Ease in Driving Switches

? Low Offset (Error) Voltage

? Low-Voltage Operation

? High-Speed Circuits

? Low Battery Voltage Operation

? Drivers: Relays, Solenoids, Lamps, Hammers, Displays,

? Memories

? Battery Operated Systems

? Power Supply Converter Circuits

? Load/Power Switching Cell Phones, Pagers

Attribute	Attribute value
ANSM-Part#	ANSM-SI1024X-T1-GE3
Category	Discrete Semiconductor Products
	Transistors
	FETs, MOSFETs
	FET, MOSFET Arrays
Mfr	Vishay Siliconix
Series	TrenchFET?
Package	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel?
Product Status	Active
Technology	MOSFET (Metal Oxide)
Configuration	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	485mA
Rds On (Max) @ Id, Vgs	700mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250μA
Gate Charge (Qg) (Max) @ Vgs	0.75nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	250mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666

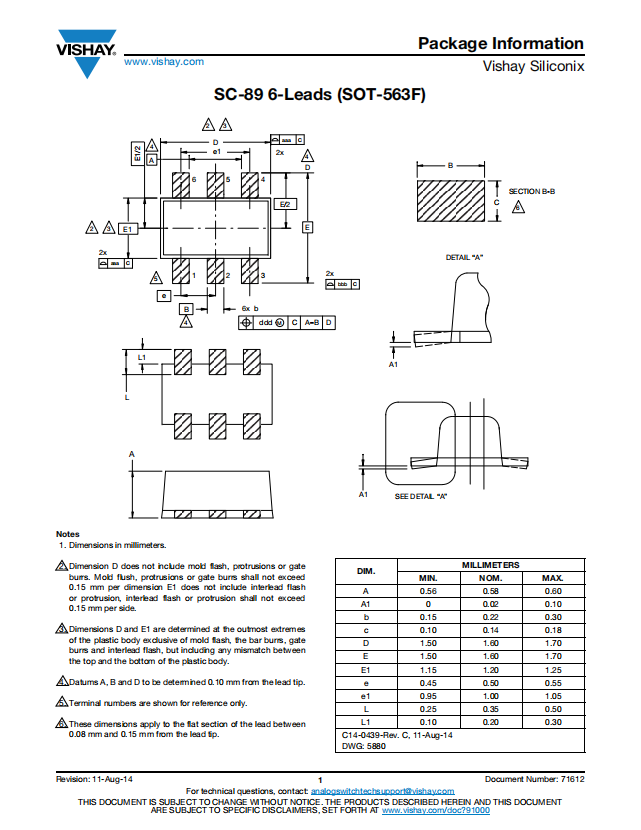

Supplier Device Package	SC-89 (SOT-563F)
Base Product Number	SI1024

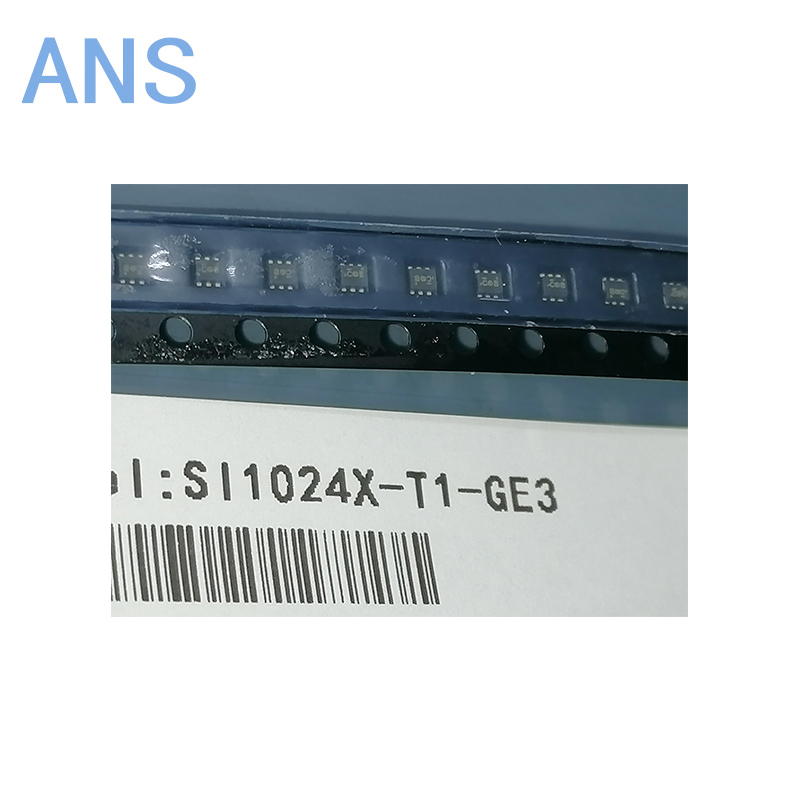

SI1024X-T1-GE3

Product Data Book：

搜狗高速瀏覽器截圖20231206133909

搜狗高速瀏覽器截圖20231206133915

搜狗高速瀏覽器截圖20231206133934

搜狗高速瀏覽器截圖20231206133922

搜狗高速瀏覽器截圖20231206133942

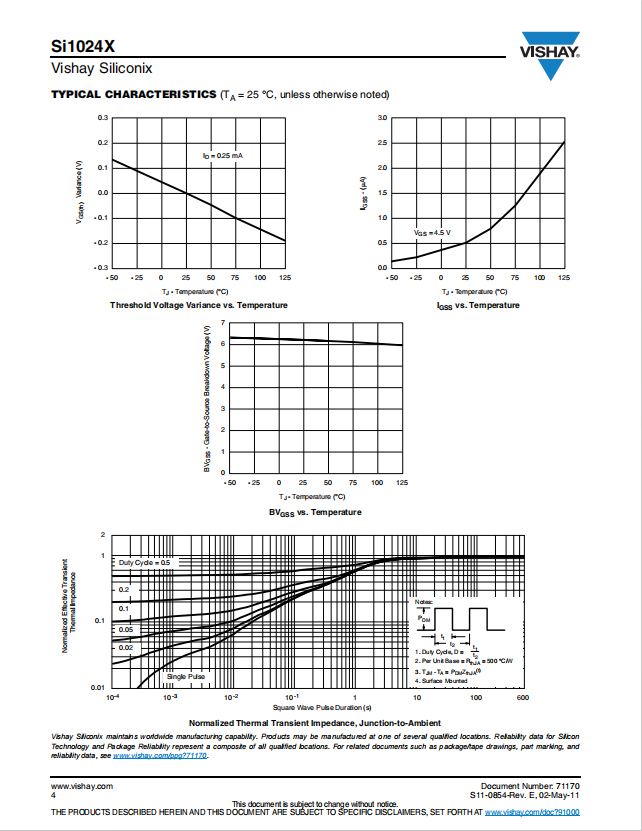

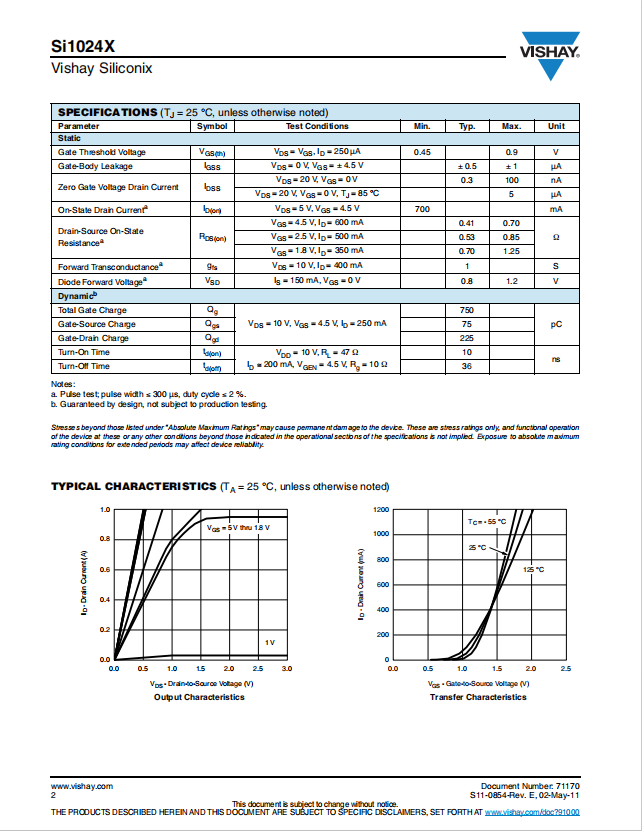

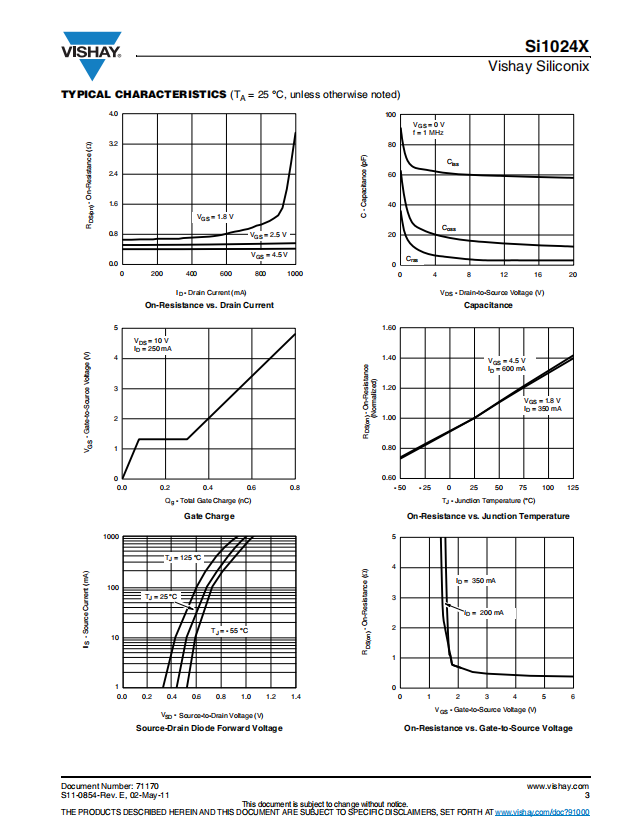

For more product information, please download the PDF
