Product Details

The WSR3R1000FEA Res Metal Strip 4527 0.1 Ohm 1% 3W ±75ppm/°C Sulfur Resistant J-Lead SMD T/R Automotive AEC-Q200.

?Molded high temperature encapsulation

?All welded construction of the Power MetalStrip? resistors are ideal for all types of currentsensing, voltage division and pulseapplications

?Proprietary processing technique producesextremely low resistance values (down to 0.001 Ohm)

?Sulfur resistance by construction that is unaffected by high sulfur environments

?Solid metal nickel-chrome or manganesecopper alloy resistive element with low TCR (< 20 ppm/°C) ?Very low inductance 0.5 nH to 5 nH

?Excellent frequency response to 50 MHz

?Low thermal EMF (< 3 μV/°C) ?AEC-Q200 qualified (1)

Attribute	Attribute value
ANSM-Part#	ANSM-WSR3R1000FEA
Category	Resistors
Category	Chip Resistor - Surface Mount
Mfr	Vishay Dale
Series	WSR
Package	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel?
Product Status	Active
Resistance	100 mOhms
Tolerance	±1%
Power (Watts)	3W
Composition	Metal Element
Features	Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient	±75ppm/°C
Operating Temperature	-65°C ~ 275°C
Package / Case	4527 J-Lead
Supplier Device Package	4527
Ratings	AEC-Q200
Size / Dimension	0.455" L x 0.275" W (11.56mm x 6.98mm)
Height - Seated (Max)	0.100" (2.54mm)
Number of Terminations	2
Failure Rate	-

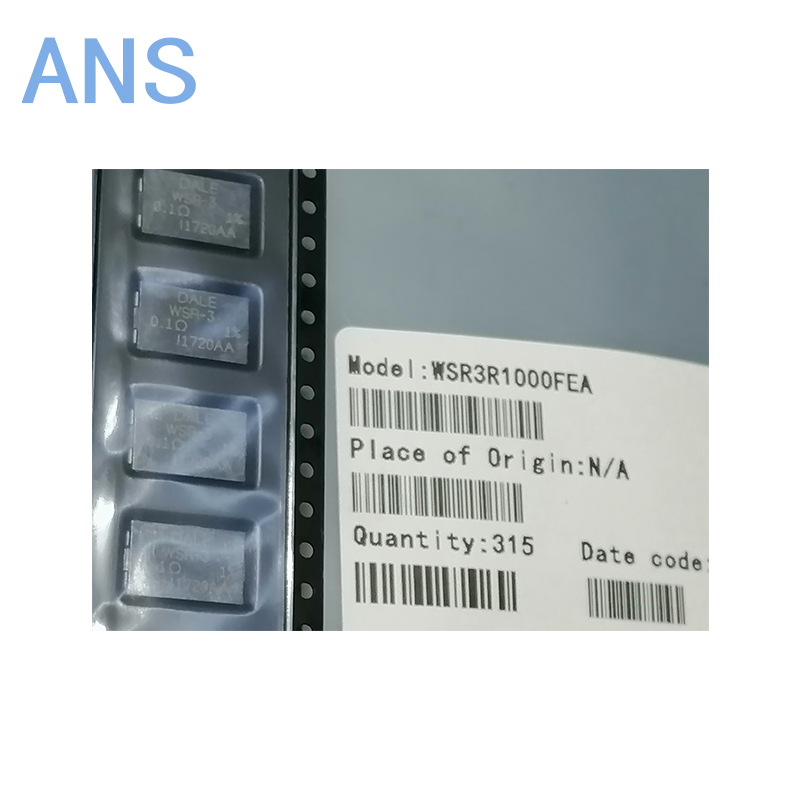

WSR3R1000FEA

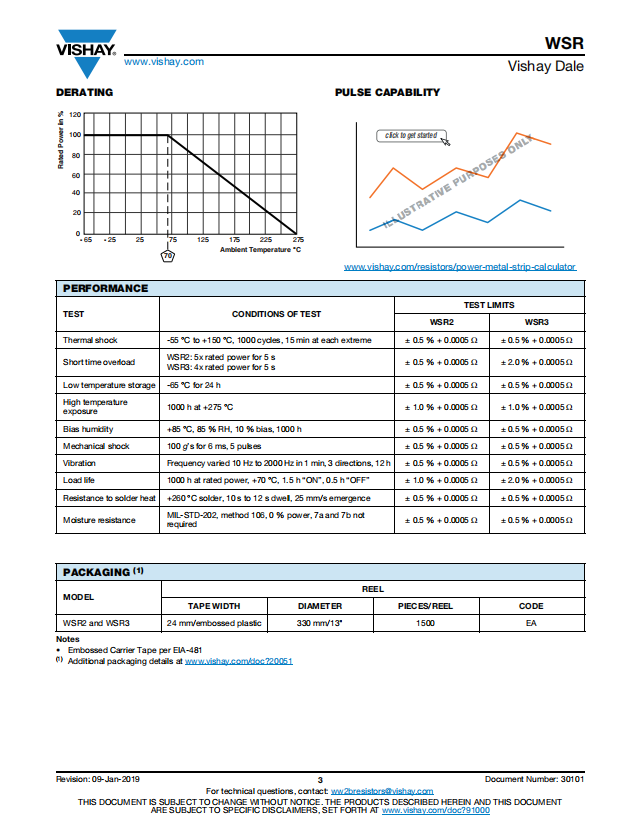

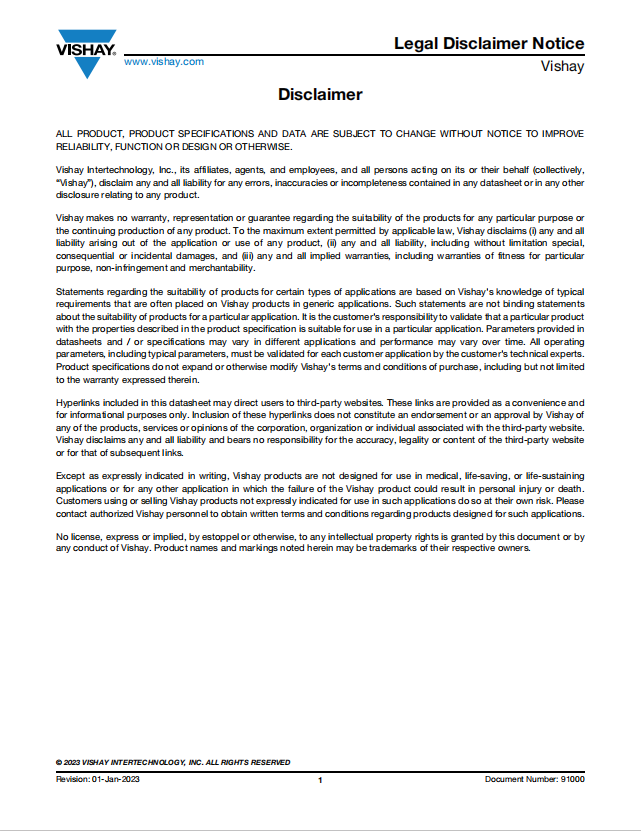

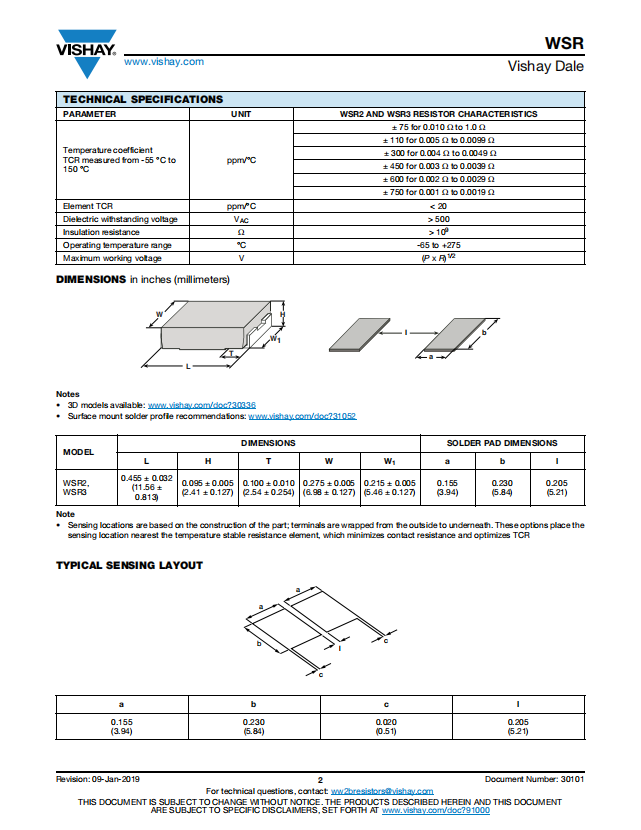

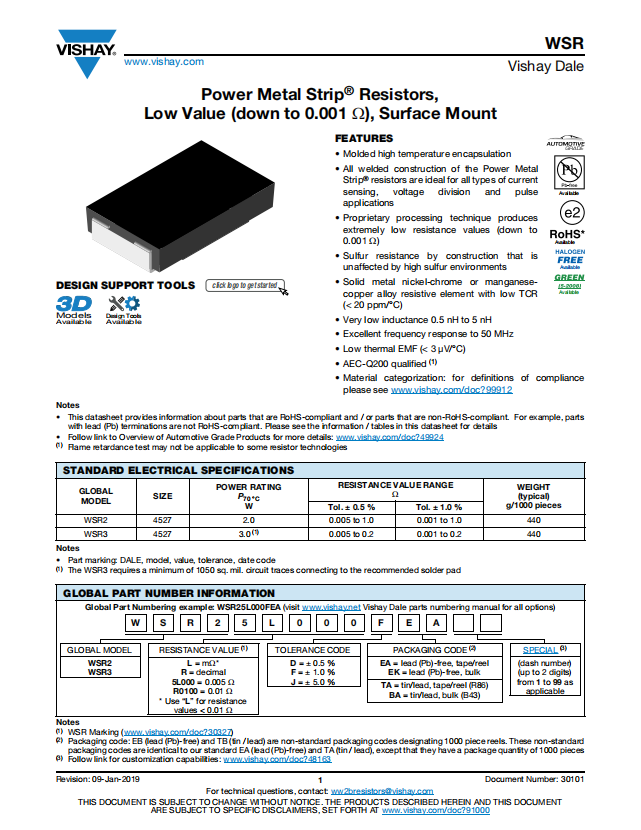

Product Data Book：

搜狗高速瀏覽器截圖20231204133604

搜狗高速瀏覽器截圖20231204133611

搜狗高速瀏覽器截圖20231204133624

搜狗高速瀏覽器截圖20231204133630

詳情8.1

詳情頁3.1

詳情5.1

詳情6.1

詳情9
