Product Details
Transient Suppressor Diode Array, Bidirectional, 5v V(rwm), So
Specifications
| Attribute | Attribute value |
|---|---|
| ANSM-Part# | ANSM-SMDA05C |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | SMC Diode Solutions |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Type | Zener |
| Bidirectional Channels | 4 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 9.8V |
| Current - Peak Pulse (10/1000μs) | - |
| Power - Peak Pulse | 300W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 300pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | SMDA05 |

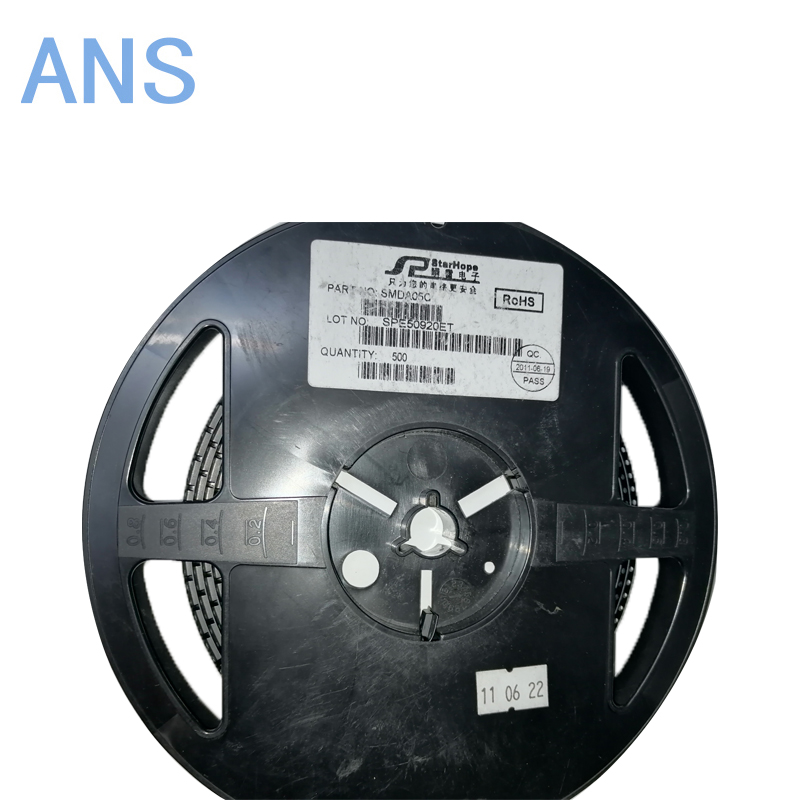

Actual product photos

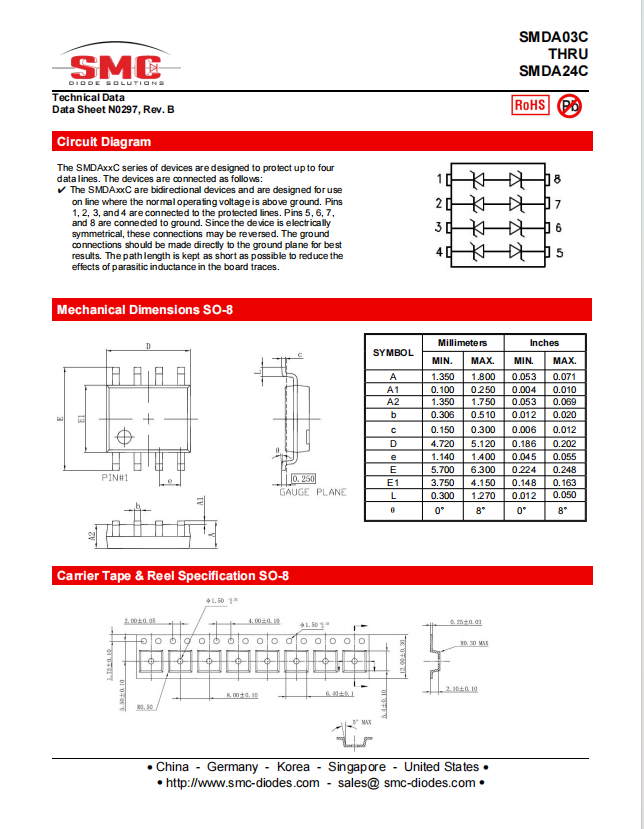

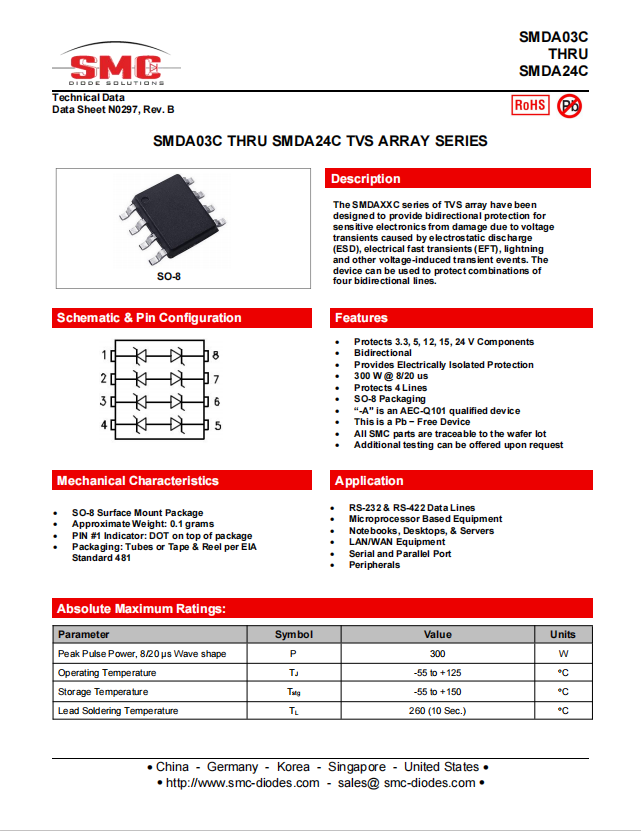

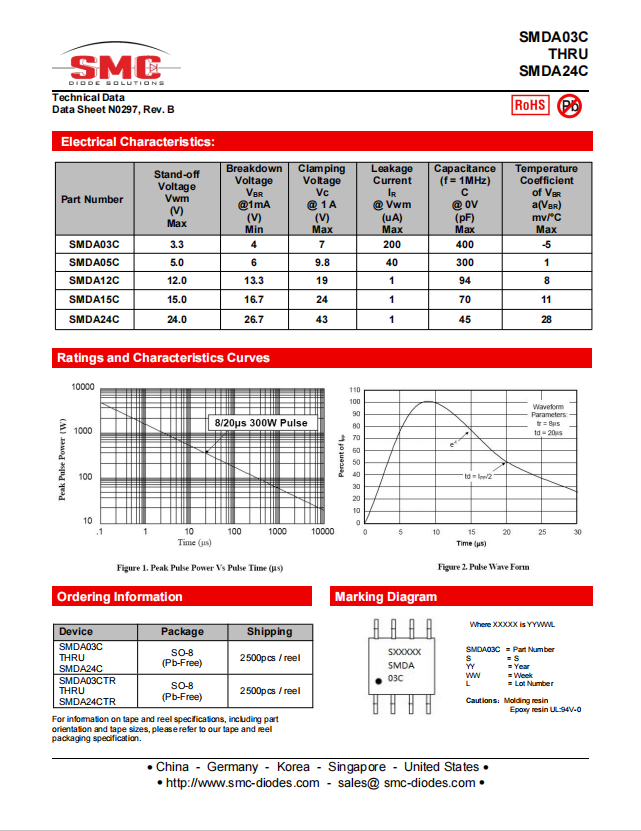

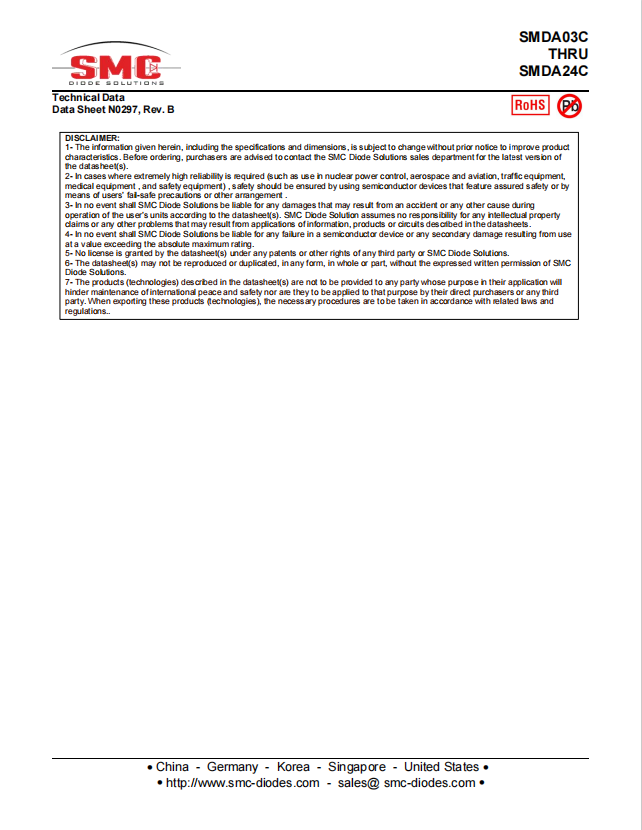

Product Data Book:
