Product Details
ESD Suppressor Diode TVS Bi-Dir 5V 11Vc 8-Pin SOIC N T/R
Specifications
| Attribute | Attribute value |
|---|---|
| ANSM-Part# | ANSM-SMDA05C.TBT |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Semtech Corporation |
| Series | SMDAC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Type | Zener |
| Bidirectional Channels | 4 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 11V |
| Current - Peak Pulse (10/1000μs) | 17A (8/20μs) |
| Power - Peak Pulse | 300W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 350pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | SMDA05 |

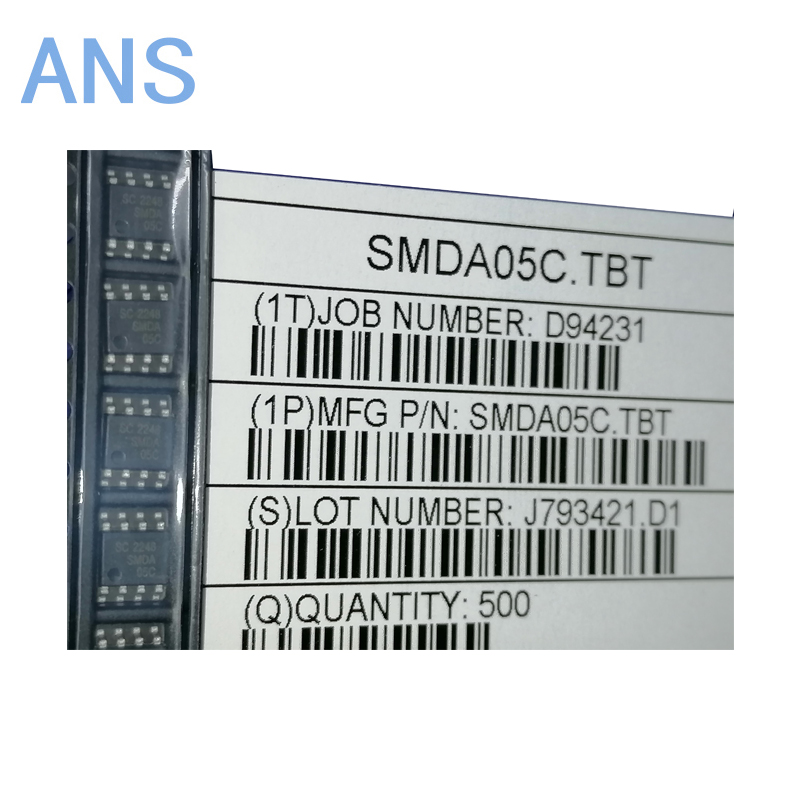

Actual product photos

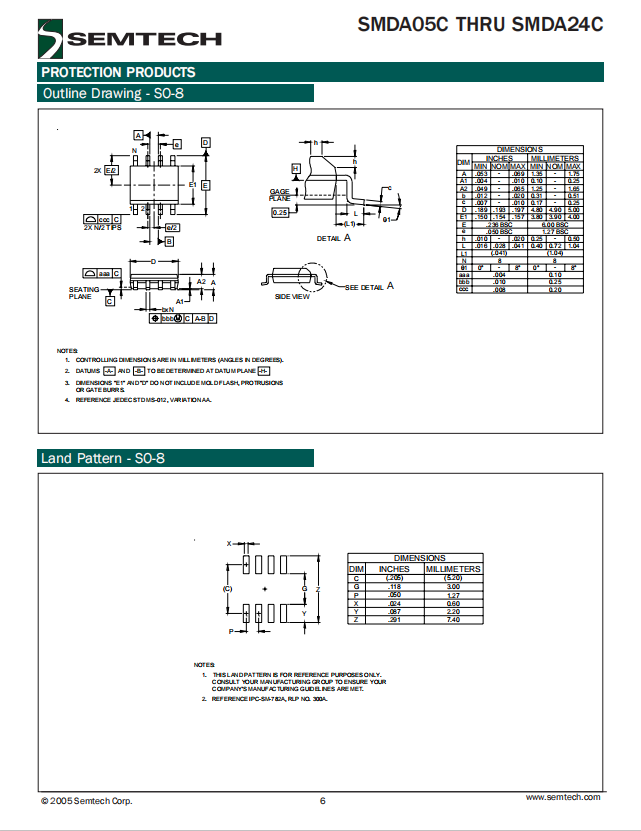

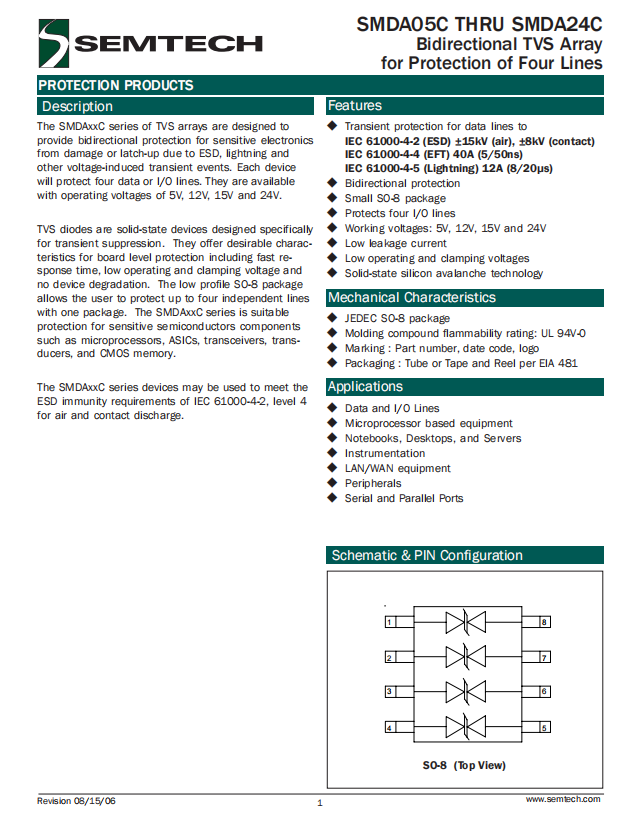

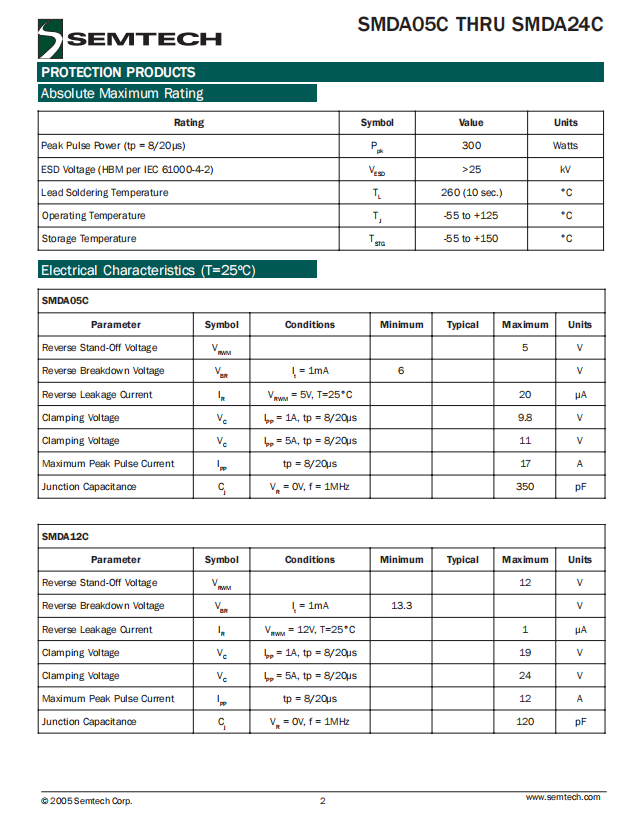

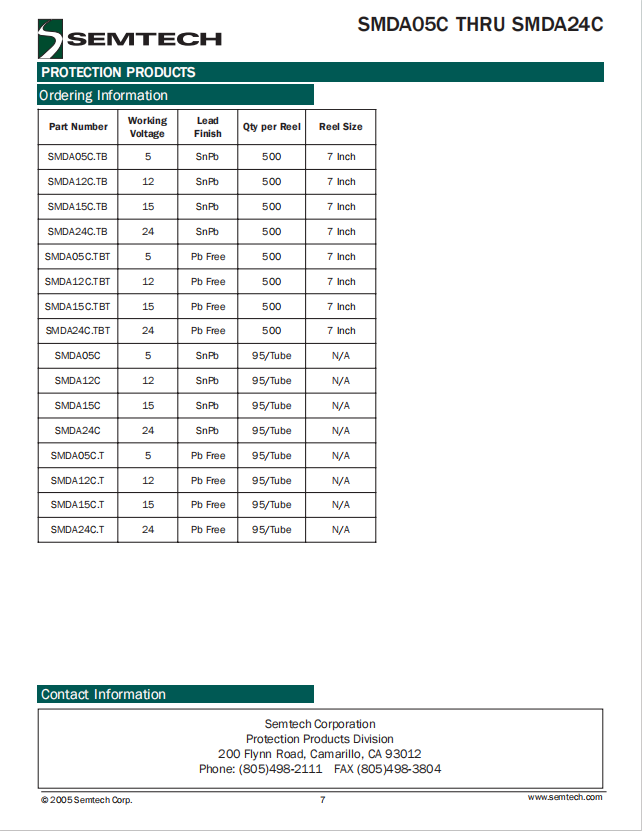

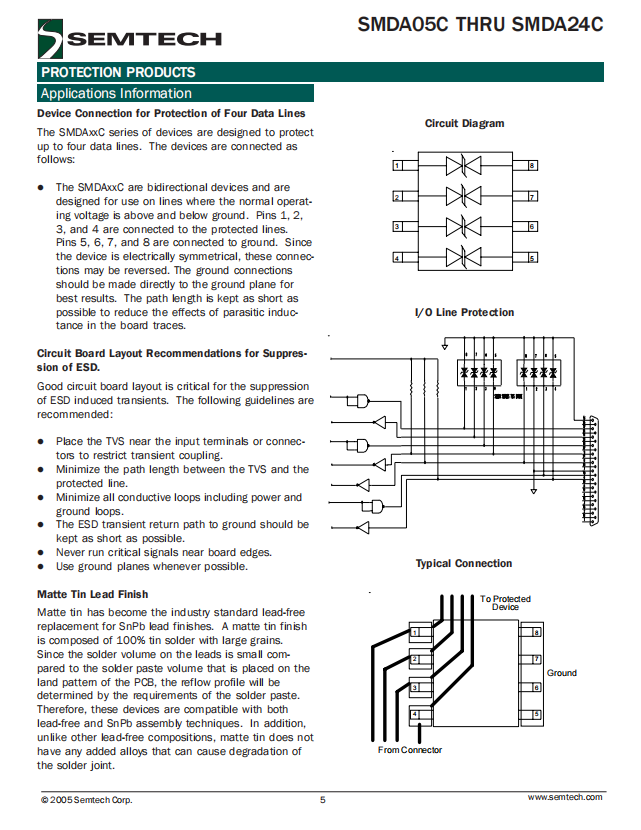

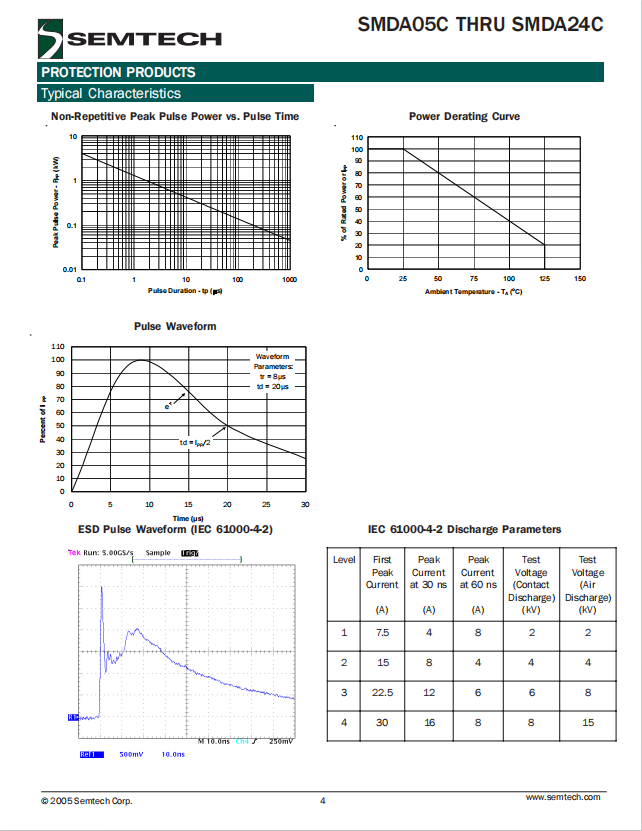

Product Data Book:
