Product Details
PTC Resettable Fuse 1.85A(hold) 3.7A(trip) 30VDC 40A 1W 8.7s 0.03Ohm Radial Bulk
Specifications
| Attribute | Attribute value |
|---|---|
| ANSM-Part# | ANSM-30R185UU |
| Category | Circuit Protection |
| PTC Resettable Fuses | |
| Mfr | Littelfuse Inc. |
| Series | POLY-FUSE?, 30R |
| Package | Bulk |
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Hold (Ih) (Max) | 1.85 A |
| Current - Trip (It) | 3.7 A |
| Current - Max | 40 A |
| Time to Trip | 8.7 s |
| Resistance - Initial (Ri) (Min) | 30 mOhms |
| Resistance - Post Trip (R1) (Max) | 90 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.402" L x 0.118" W (10.20mm x 3.00mm) |
| Height - Seated (Max) | 0.618" (15.70mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.201" (5.10mm) |
| Approval Agency | cURus, TUV |

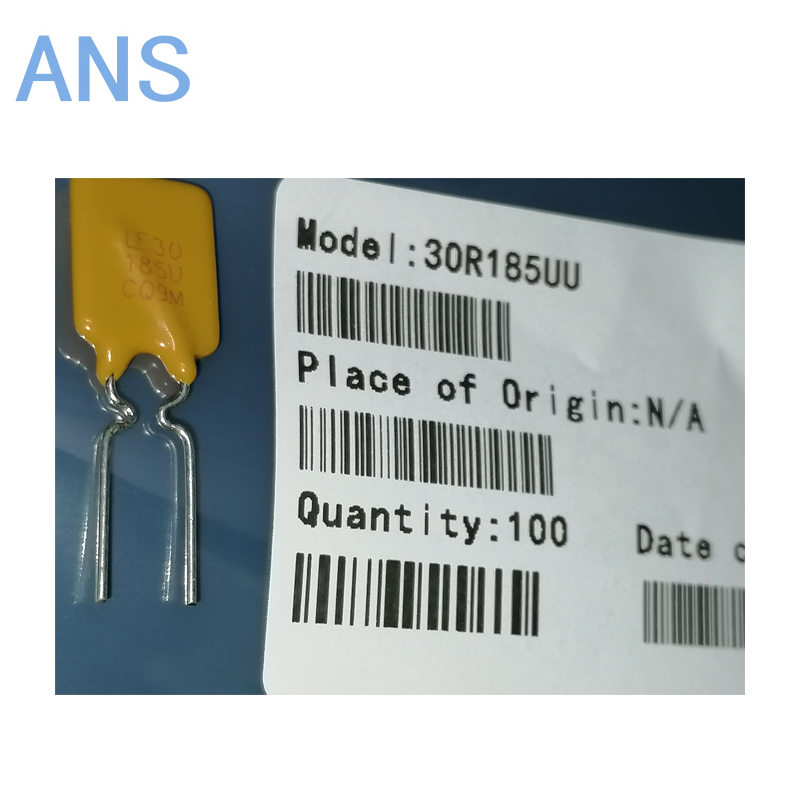

Actual product photos

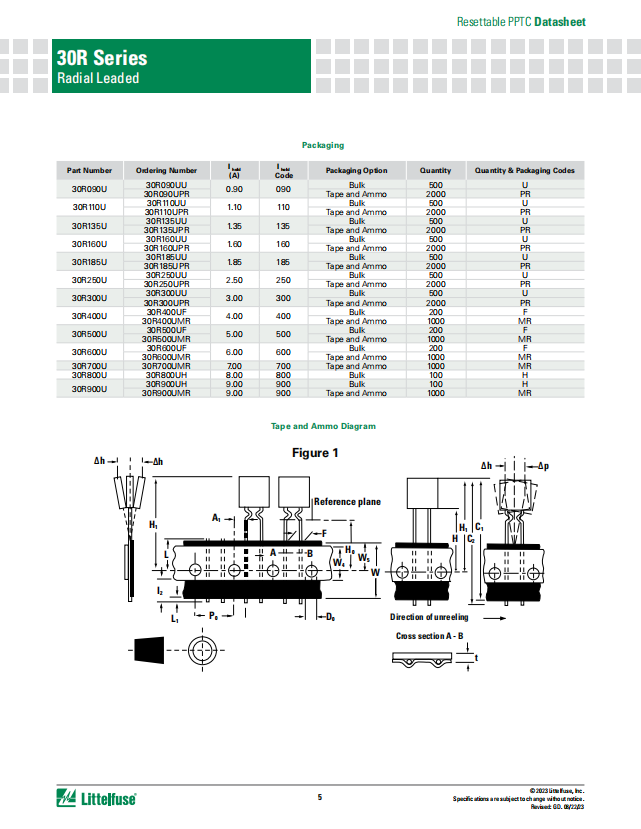

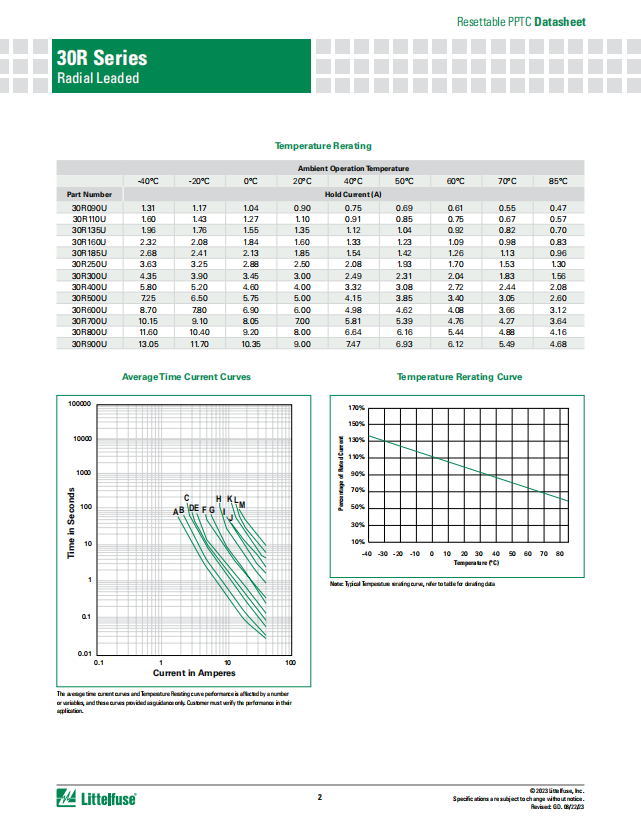

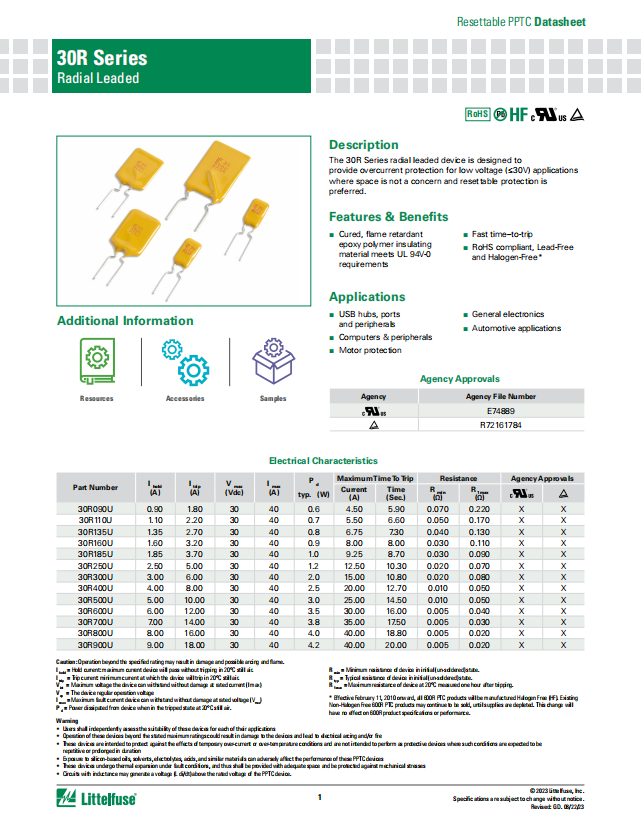

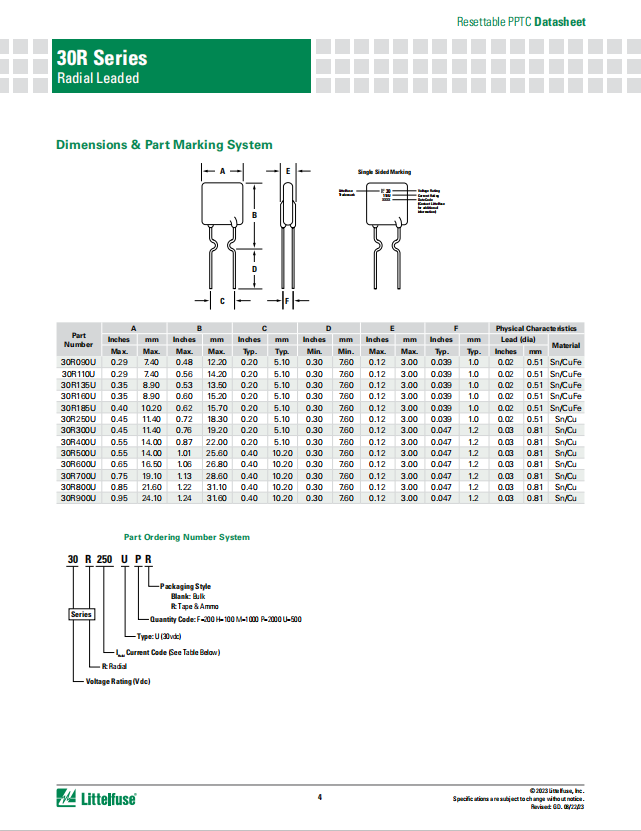

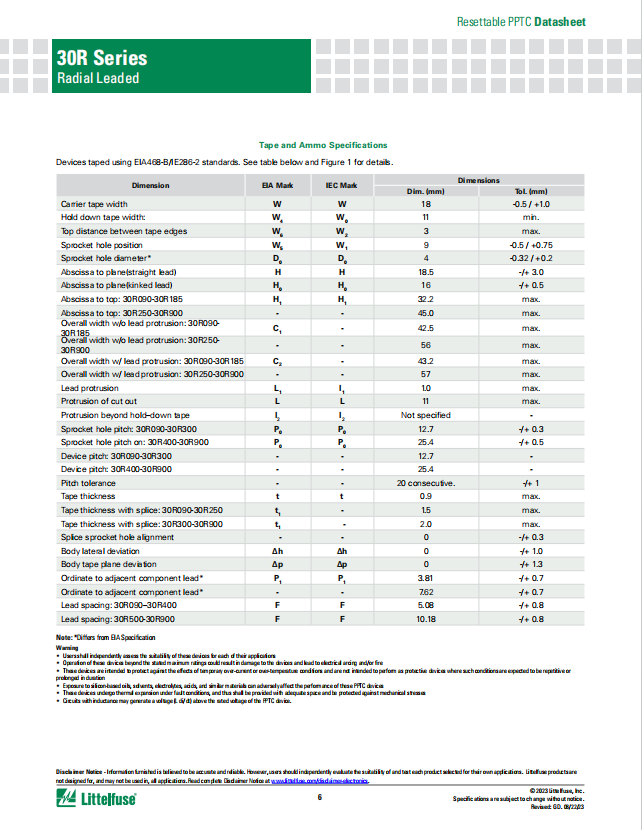

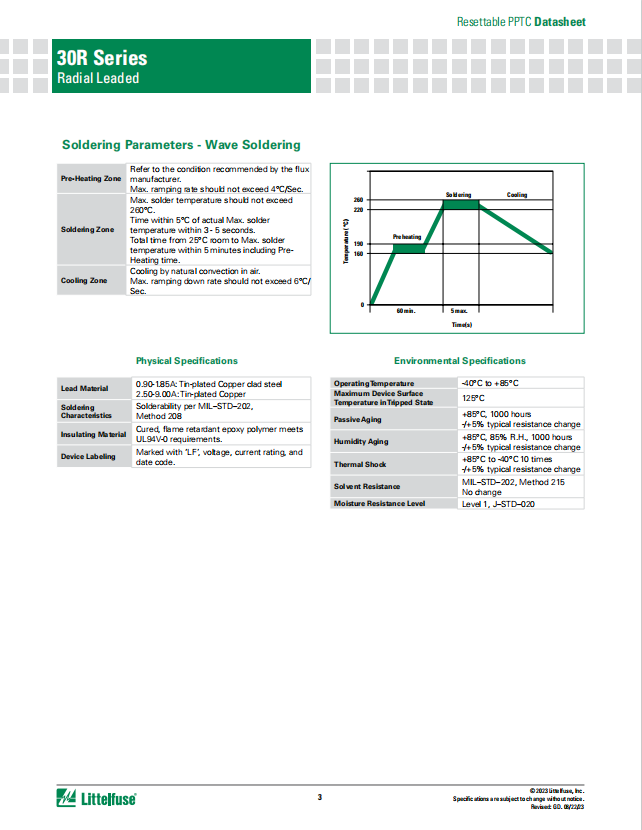

Product Data Book:
