Product Details
1500 WATT UNIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR DO-13
Specifications
| Attribute | Attribute value |
|---|---|
| ANSM-Part# | ANSM-JAN1N5644A |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Microchip Technology |
| Series | - |
| Package | Bulk |
| Product Status | Active |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 25.6V |
| Voltage - Breakdown (Min) | 28.5V |
| Voltage - Clamping (Max) @ Ipp | 41.4V |
| Current - Peak Pulse (10/1000μs) | 36A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Grade | Military |
| Qualification | MIL-PRF-19500/500 |
| Mounting Type | Through Hole |
| Package / Case | DO-202AA, DO-13, Axial |
| Supplier Device Package | DO-13 (DO-202AA) |
| Base Product Number | 1N5644 |

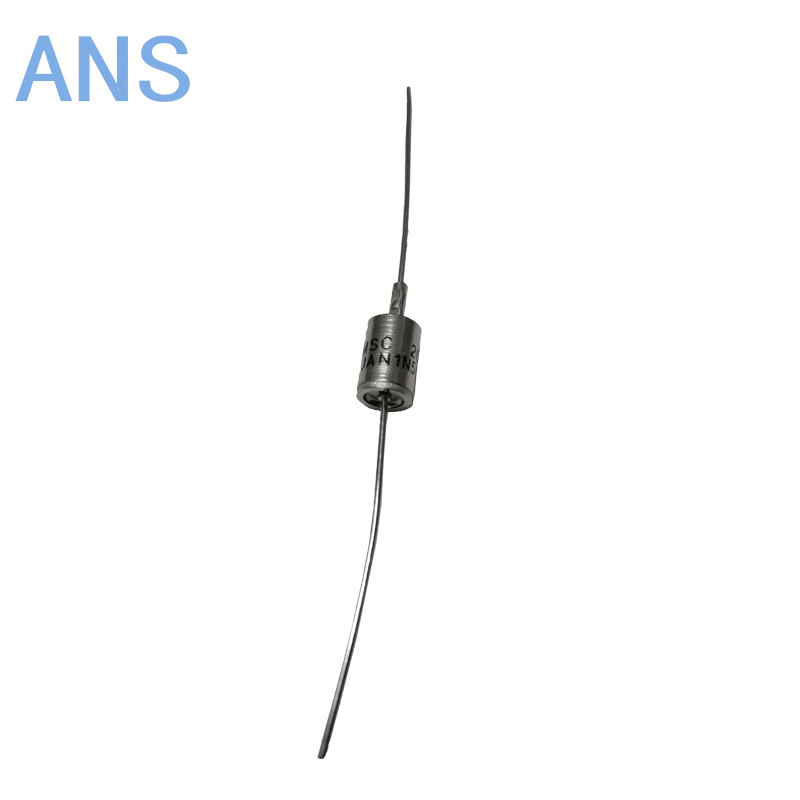

Actual product photos

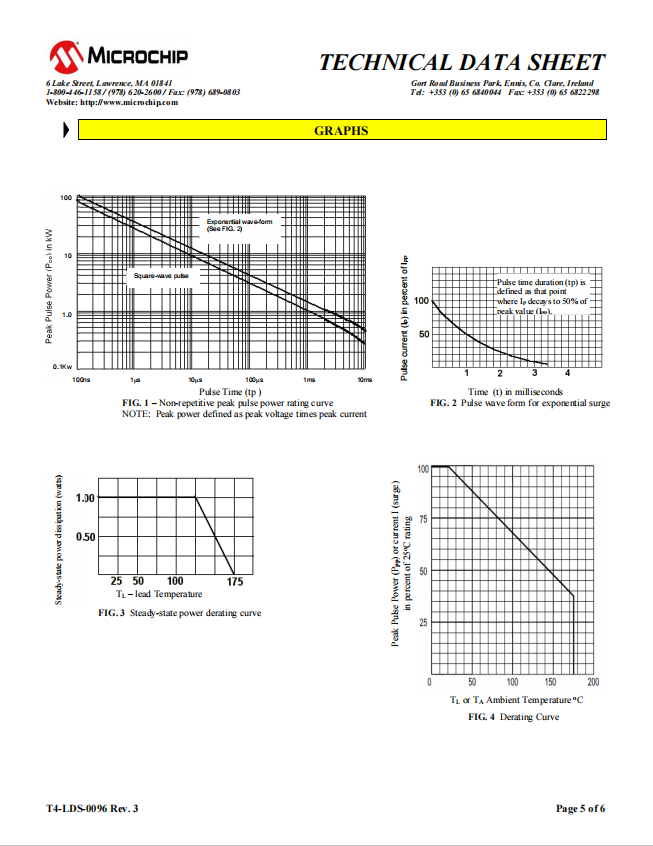

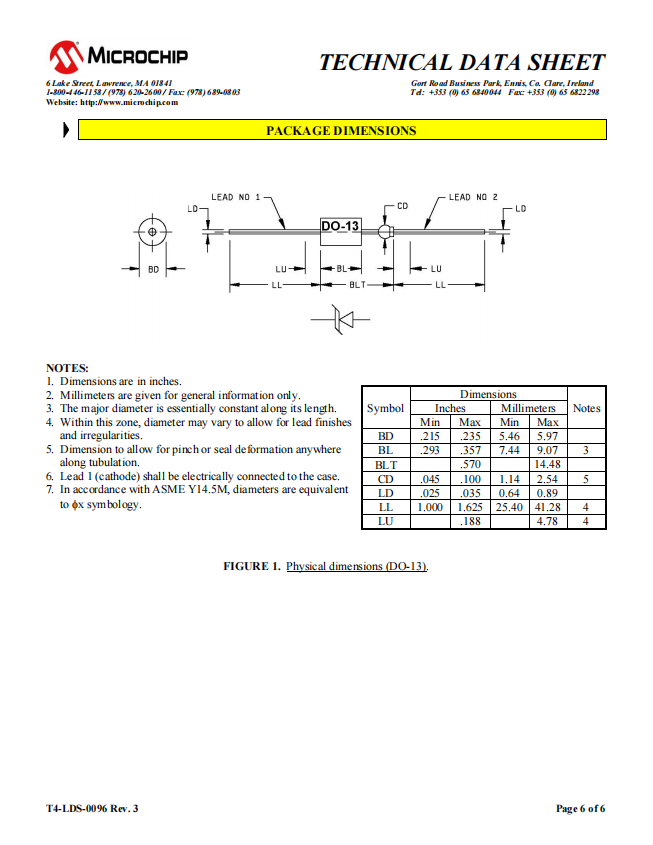

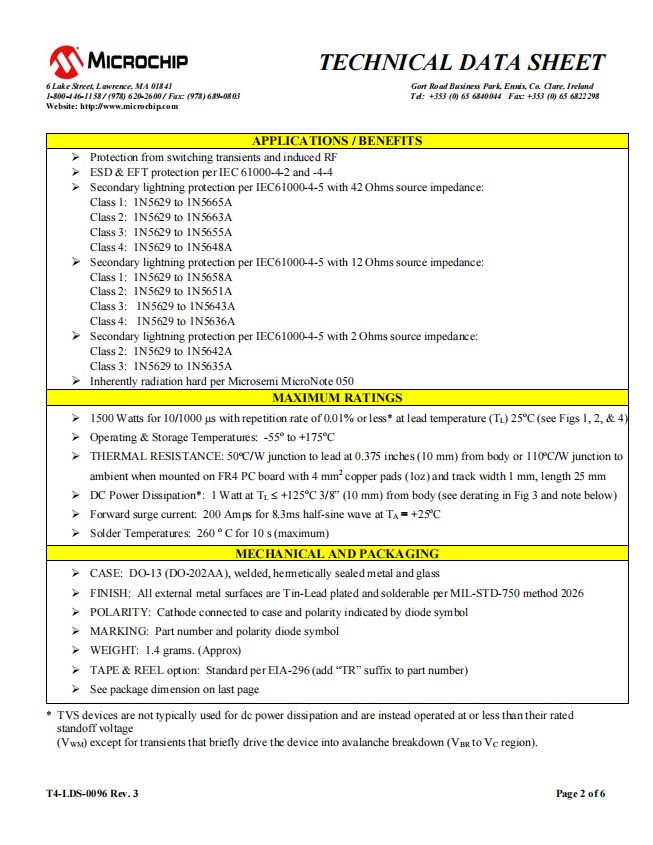

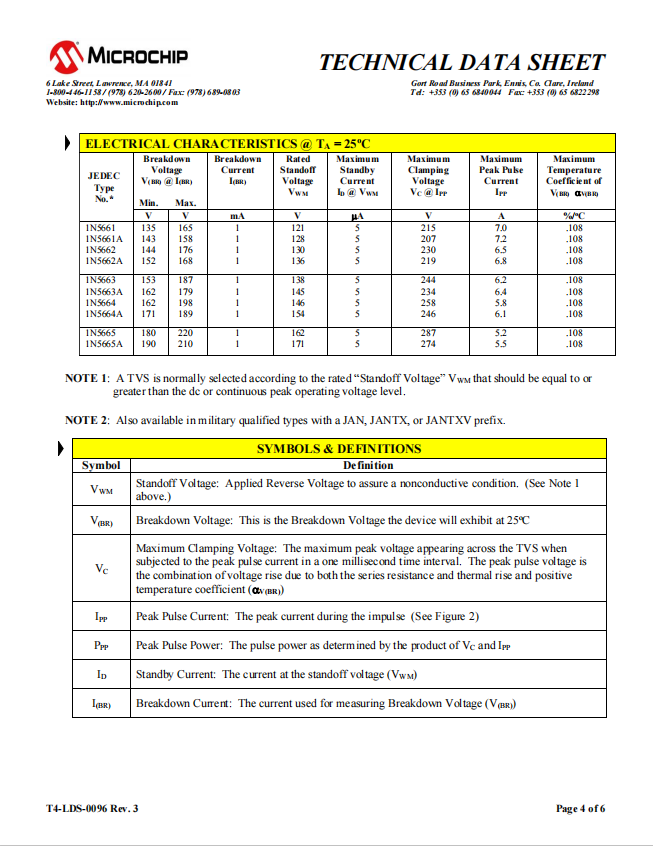

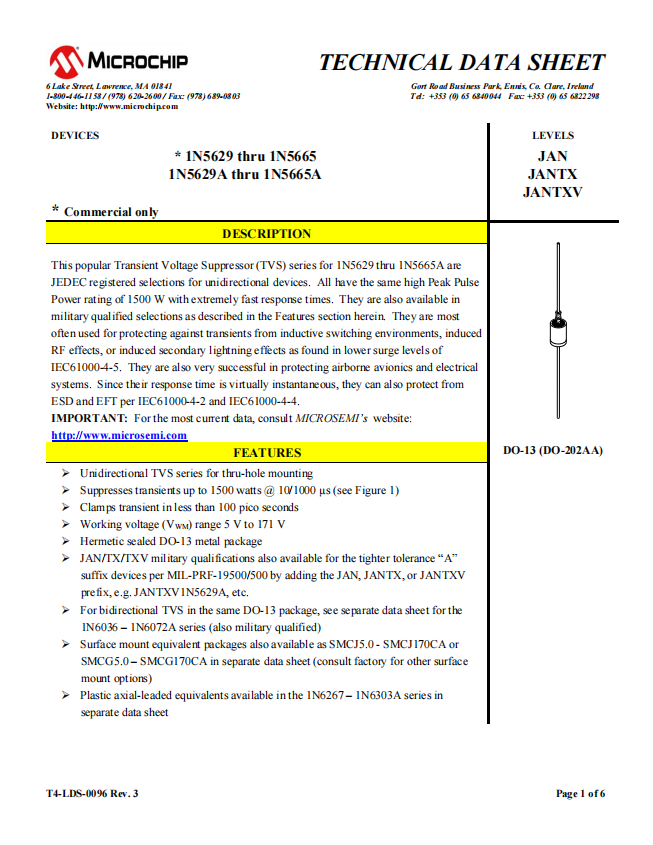

Product Data Book：
