Product Details

1.27mm PITCH DIL SMT VERT LOW PROFILE SOCKET ASSY DIP

Attribute	Attribute value

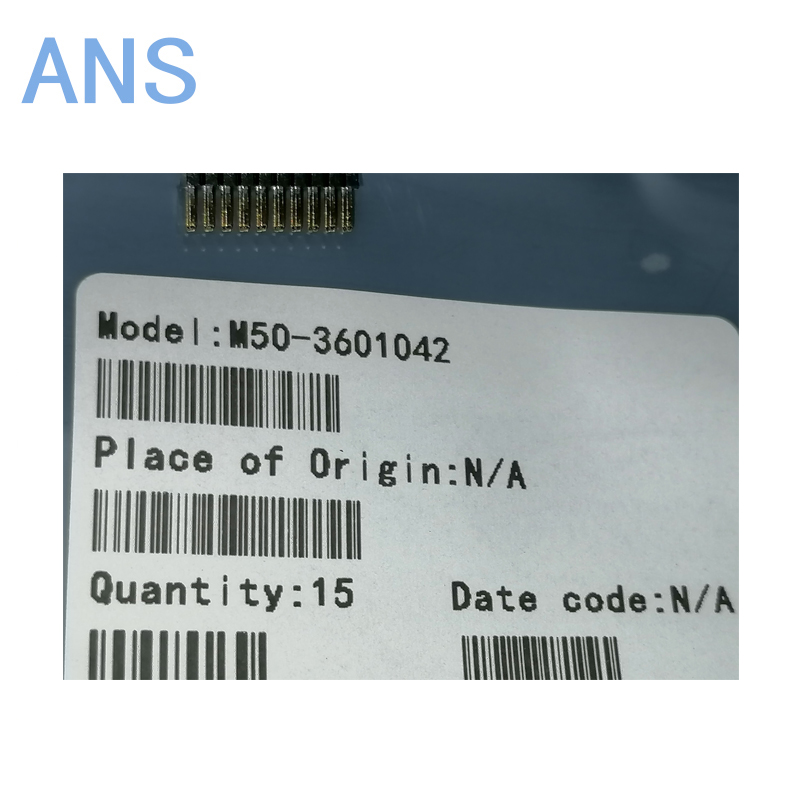

ANSM-Part#	ANSM-M50-3601042
Category	Connectors, Interconnects
	Rectangular Connectors
	Headers, Male Pins
Mfr	Harwin Inc.
Series	Archer M50
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.118" (3.00mm)
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.039" (1.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00μin (0.076μm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Features	-
Operating Temperature	-40°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A
Voltage Rating	-
Mated Stacking Heights	3.9mm, 5.3mm, 6.08mm, 6.18mm, 7mm
Contact Finish Thickness - Post	98.4μin (2.50μm)
Applications	-
Base Product Number	M50-360

M50-3601042 2
